Rega presenta la nuova testina ANIA

La famiglia di testine MC di Rega si arricchisce con l’arrivo della nuovissima testina Ania.

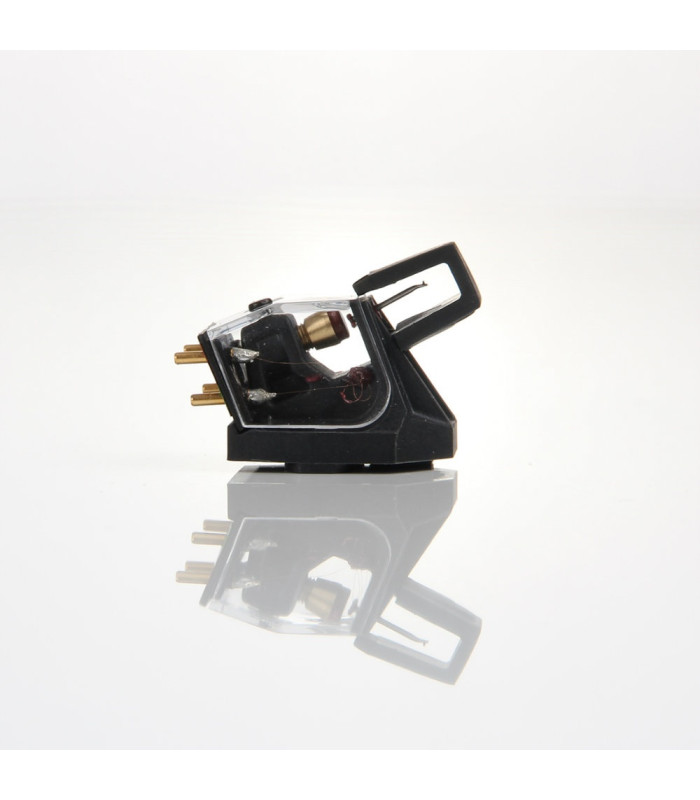

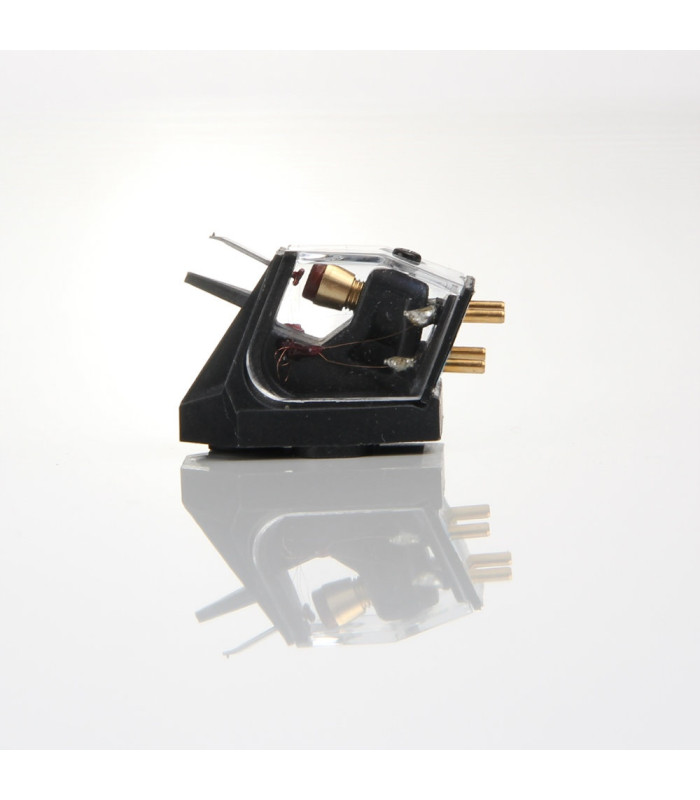

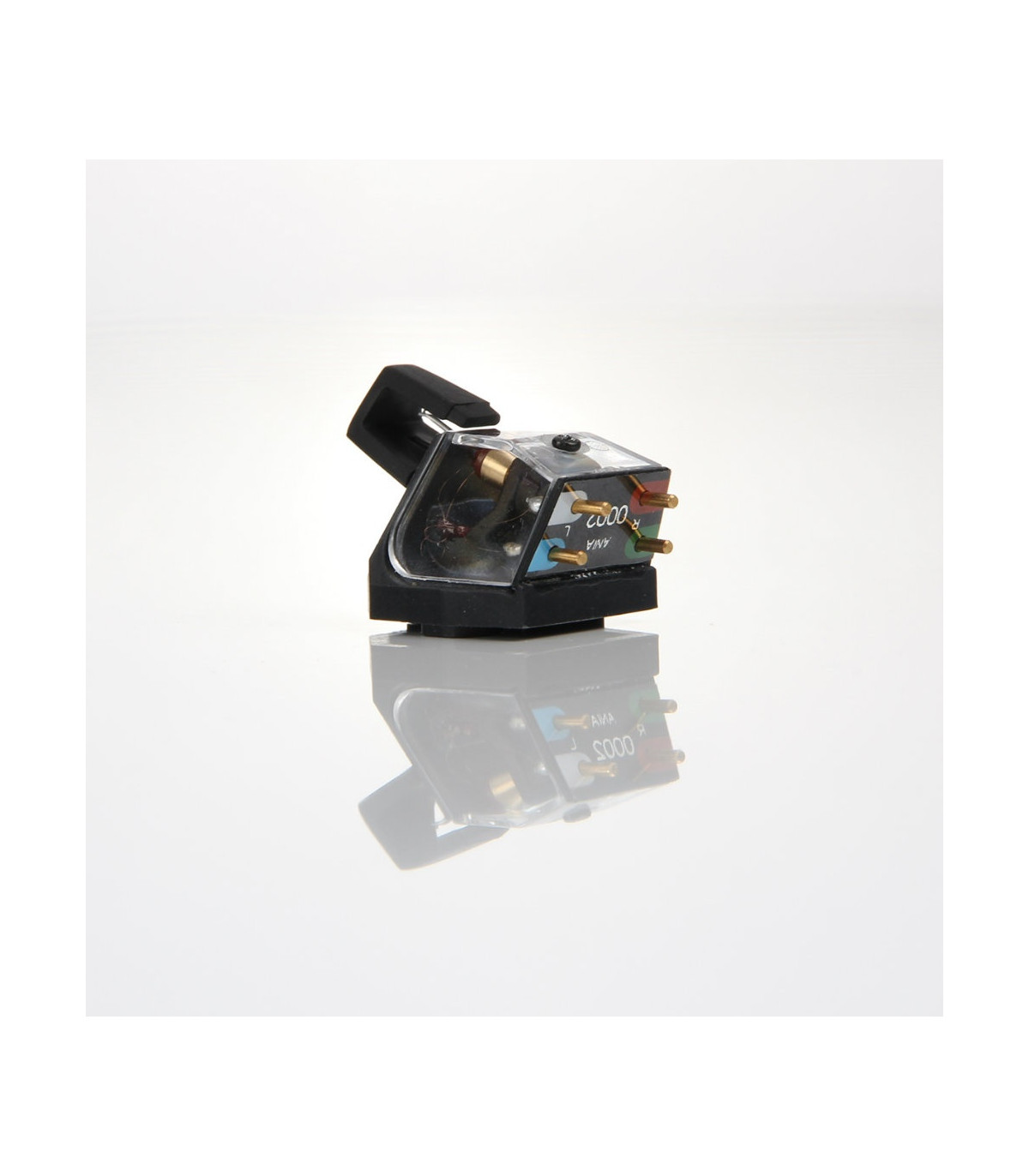

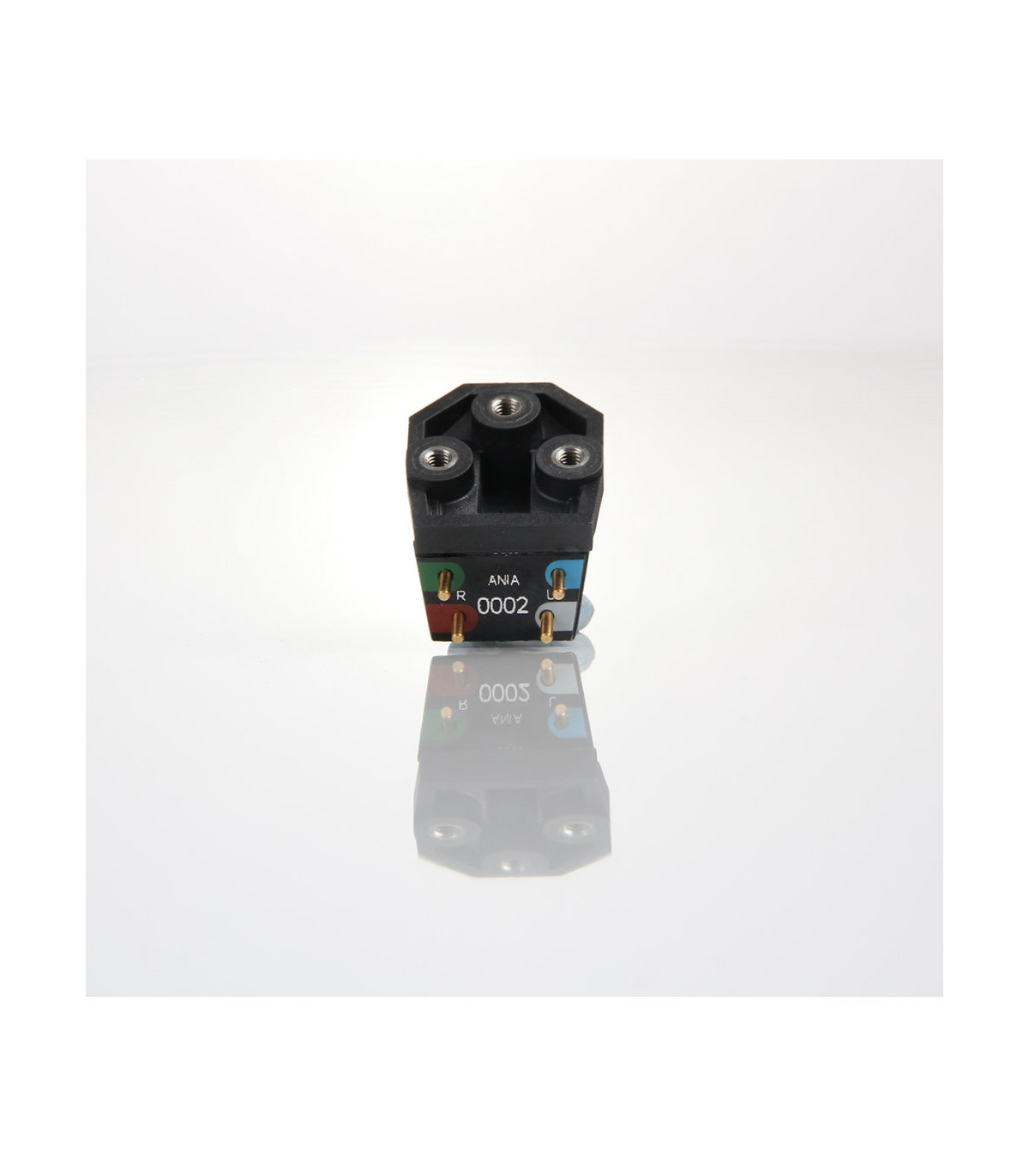

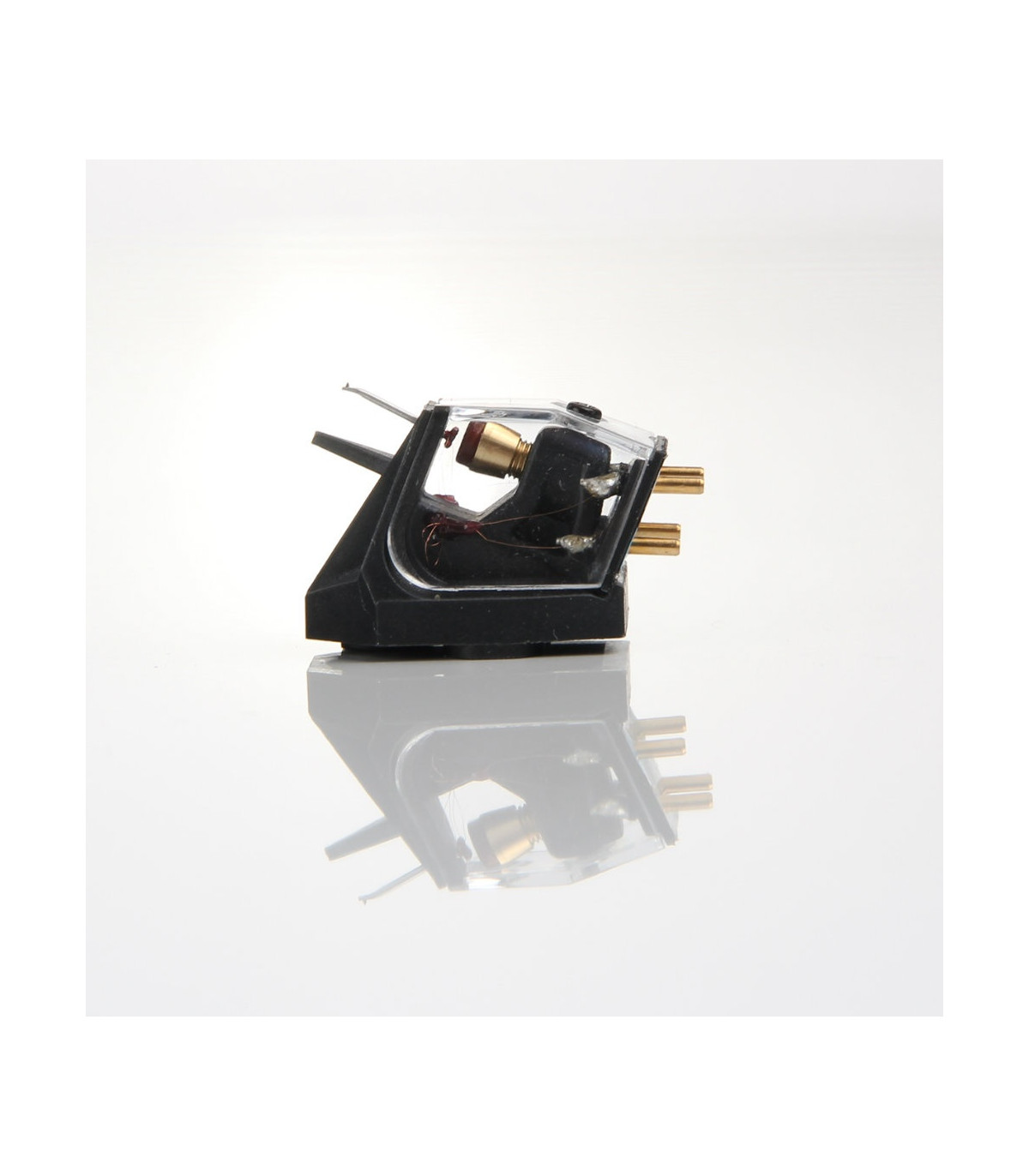

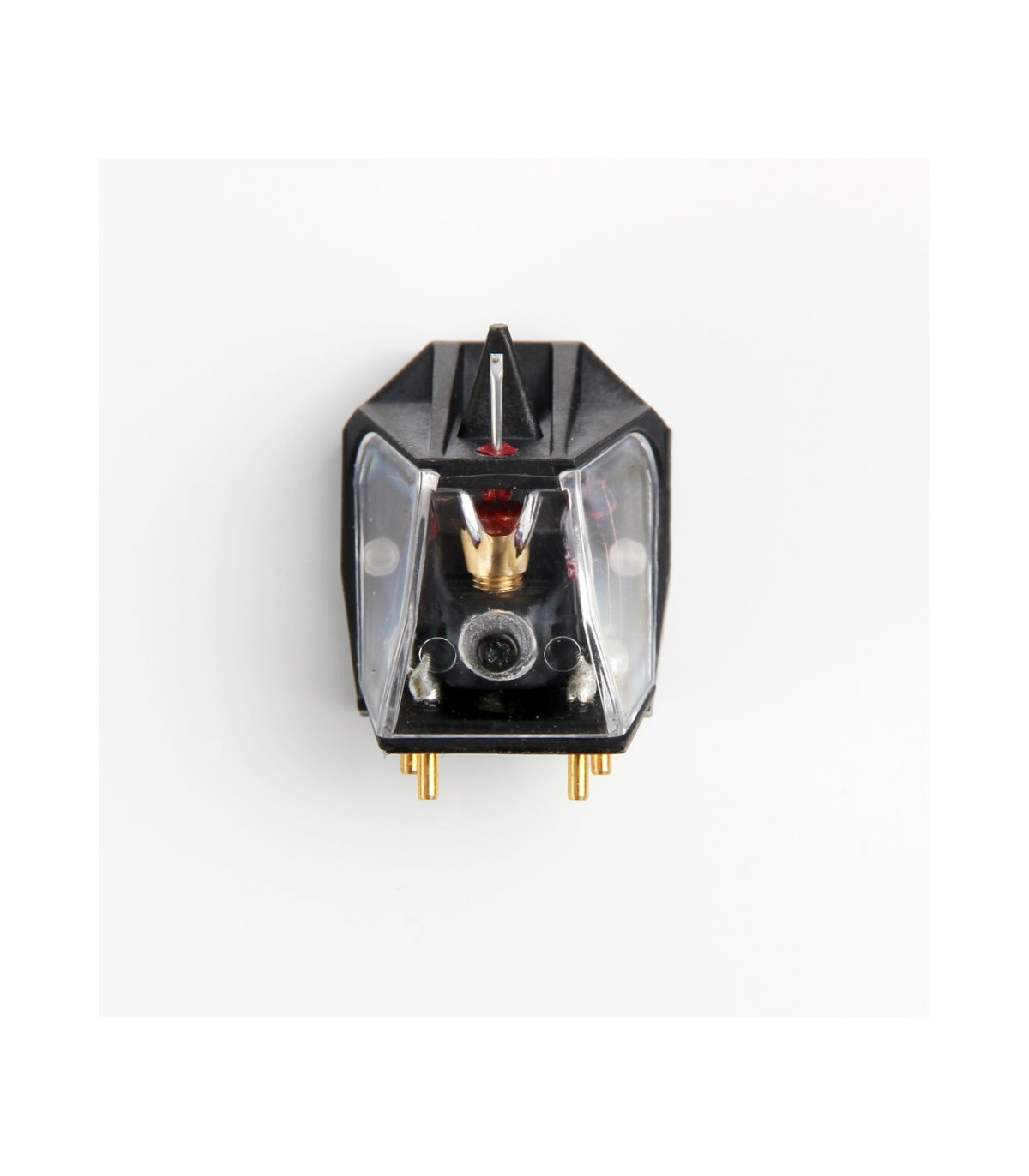

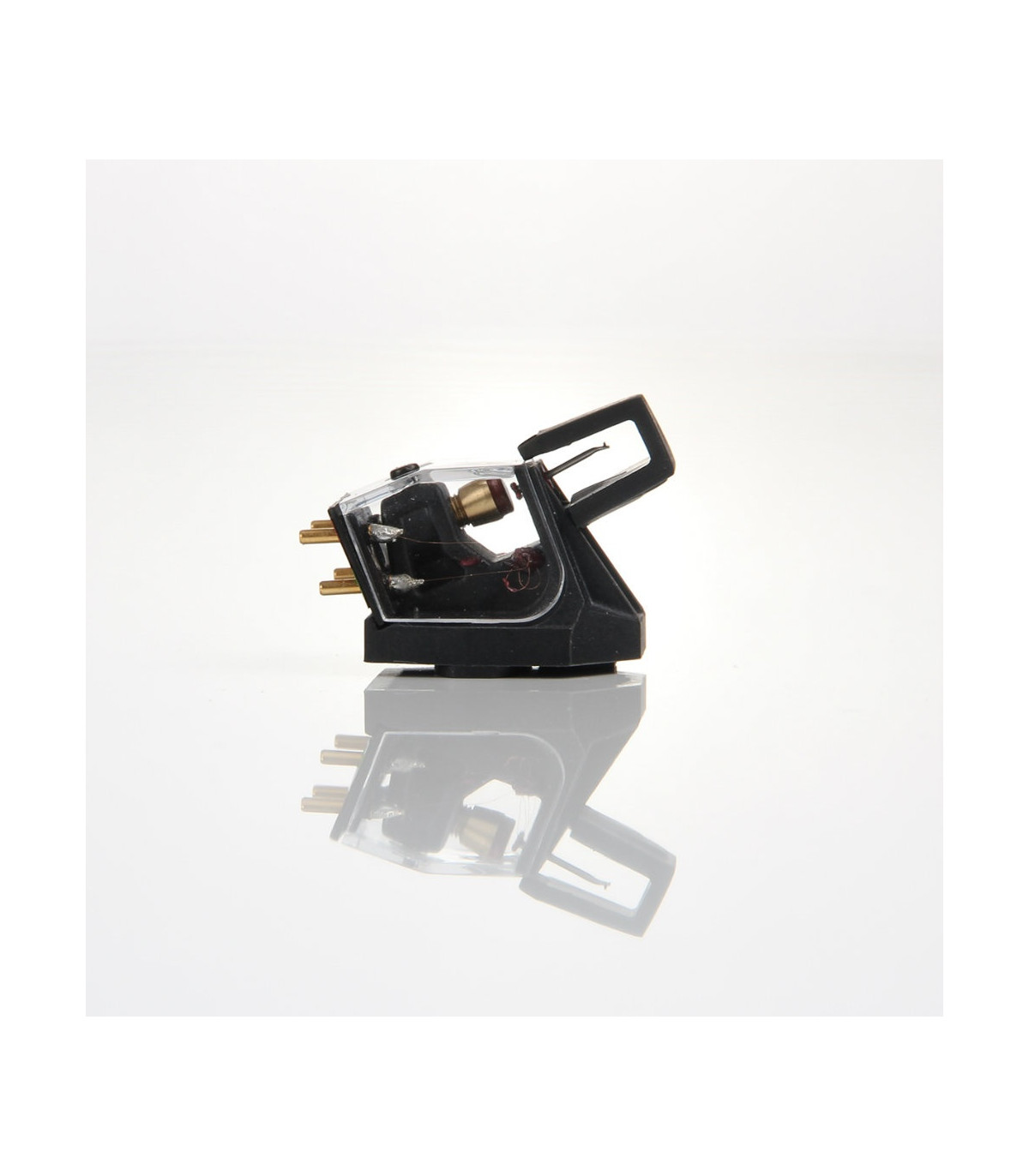

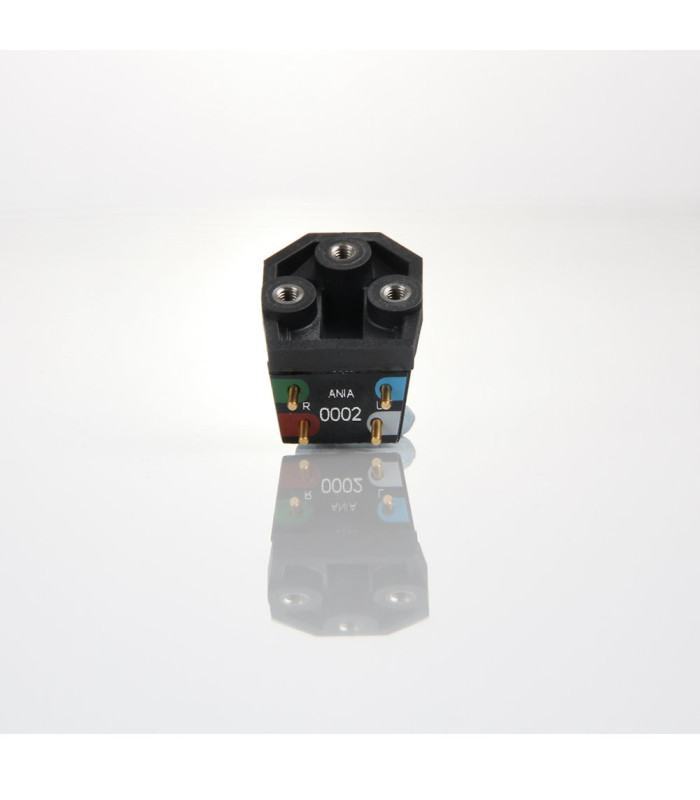

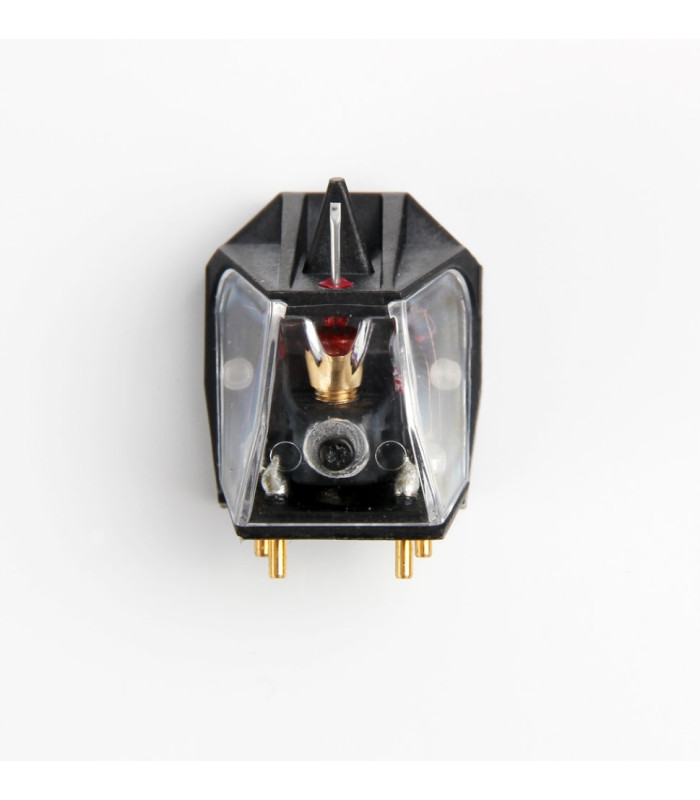

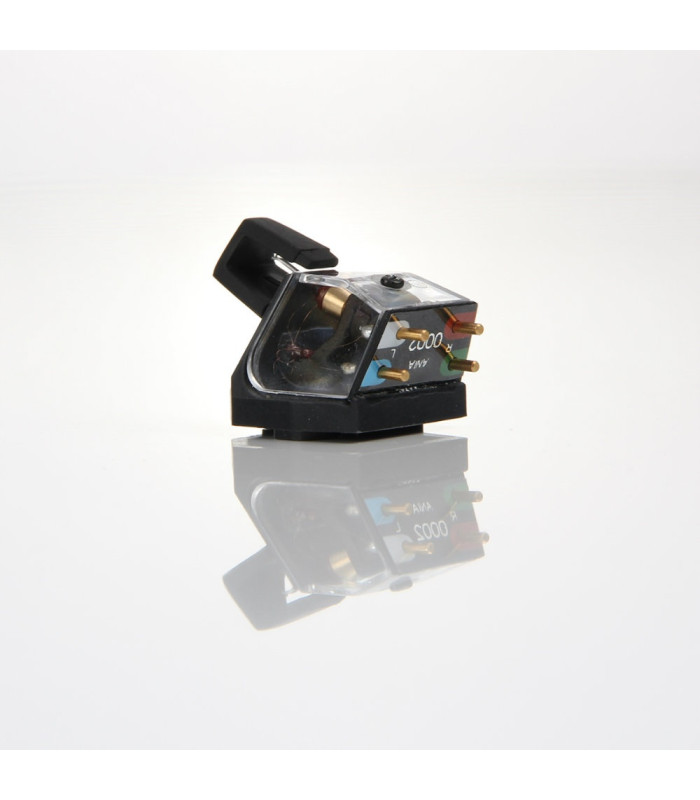

Sviluppata utilizzando lo stesso metodo di avvolgimento a mano adottato per le due sorelle maggiori, la Ania ha un corpo realizzato in  Solfuro di polipropilene (PPS) ad elevatissima rigidità, che assicurare la massima accuratezza nella costruzione e sfrutta il metodo di fissaggio a 3 punti per garantire un aggancio ottimale sullo shell e la massima semplicità di messa a punto. Il nuovo corpo testina è protetto da una cover rigida trasparente progettata con CAD in grado di proteggere al meglio il finissimo cablaggio interno. La Ania è caratterizzata da un magnete in neodimio e da un cablaggio sottilissimo meticolosamente avvolto a mano attorno ad un'anima metallica incrociata. Questa costruzione così minuziosa permette grande libertà di movimento sulla traccia del LP e assicura la massima estrazione di dettagli dalla vostra musica.

Tutte queste caratteristiche, combinate con la dinamica e la musicalità che caratterizzano i prodotti Rega, vi faranno riscoprire il piacere di ascoltare i vostri dischi preferiti. Ania è la partner perfetta per i giradischi Planar 3, RP6 e RP8.

Descrizione in aggiornamento.

A unique design.

Rega’s Moving Coil cartridge design is unique in its approach to achieving an ultra-low mass generator which is undamped (no tie wire) using a unique rhomboid pivot for the cantilever powered by a purpose designed, exclusive to Rega, Neodymium magnet system. This type of design requires a zero-tolerance engineered cartridge body which is Rega’s area of expertise and with the Apheta 2 and Aphelion products these bodies are machined from one piece of the highest quality aluminium. This is a difficult and expensive process requiring all of Rega’s forty-four years of experience to achieve. In particular, the “zero” tolerancing of the body is required in the alignment and dimension of the pivot pad mounting hole and the magnet mechanism mounting hole relationship.

When we decided to produce a Moving Coil cartridge at half the cost of the Apheta 2, the special aluminium body could not be used, it was simply too expensive. The solution lay in an unusual polymer/glass combination called Polyphenylene Sulphide (PPS-Fortron). With 40% glass, this material could be moulded and would solve the cost problem. The special attributes of this material are its hardness and stability in shape and dimension post moulding, both critical for the performance of Ania. Now came the challenge. Rega designed and prototyped using SLA systems in just a few months, proving the validity of the design direction.

Now we had to design a production mould tool capable of extreme accuracy and long life. PPS is a difficult polymer to mould and requires special attention to how the mould tool operates. Couple this to an almost unmouldable complex shape of the Ania body and a very considerable challenge faced the Rega engineers and the toolmakers chosen. The toolmakers are of the highest technical skill level, using the most accurate Swiss EDM CNC machines, their regular customers being the military and medical industries, routinely working down to a micron (one thousandth of a millimetre).To achieve this intricate body shape required the most complex high pressure injection mould tool that Rega has ever designed. The tool has eight major parts, four of which must move in perfect synchronicity with each other to achieve each cartridge body. The design and manufacture of this “work of art” took an entire year to produce and was made exclusively by the most senior toolmaker requiring all his lifetime of artisanal experience.

Combine this special PPS body with its high specification stainless steel inserts, a unique rhomboid pivot system, a tried and tested high performance, diamond tipped elliptical stylus cantilever with low mass moving coil generator assembly and you have new market leading musicality, performance, speed, clarity, and detail as never before at this price.

Specifications:

Tracking Pressure 1.75 - 2.00g
Input load impedance 100 ohm
Output impedance 10 ohms
Nominal output voltage 350μV
Channel Balance : ≥ 20μV
Separation : ≥ -29dB

Mass 6g

Key Features:

Iron cross & micro coil assembly
One of the world's smallest MC generators.
Cutting edge neodymium magnet.
Elliptical profile stylus
Constructed from high specification 0.018mm fine wire

Load settings for adjustable MC stages

Impedance -100ohm
Capacitance - 1000pF
Gain setting - High ('On' position for Rega phono stages)

Fono MC dip switch settings for all Rega MC models.

Aria Phono stage dip switch settings for all Rega MC models.
