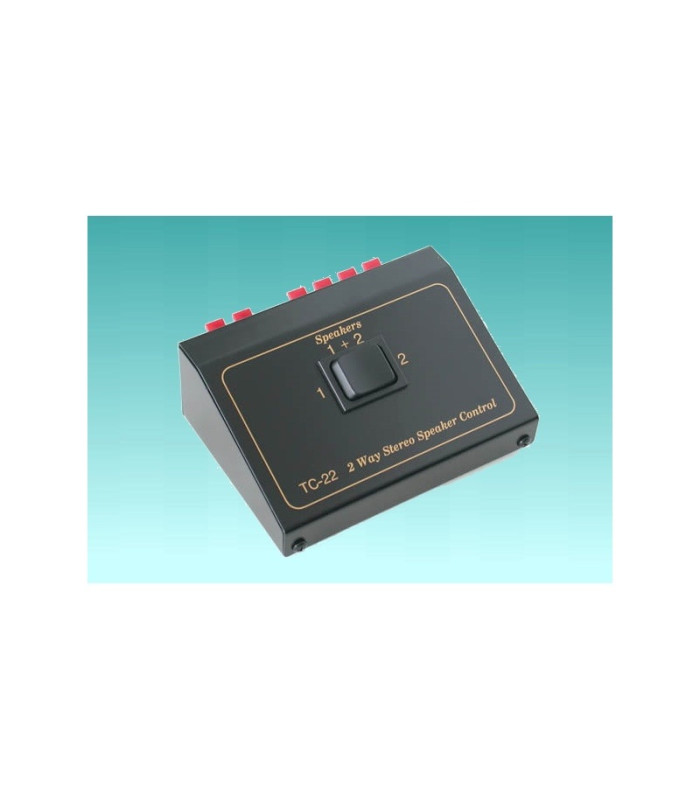

TCC TC-22 2-Way Stereo Speaker Control

Designed to enable 2 pairs of stereo loudspeakers to be connected to Hi-Fi power Amplifier and make it possible of listen to
either pair of loudspeakers in separate or all together.

Features:

• Suitable for speaker from 4 ohms to 16 ohms.
• Simple connection snap in push screw terminals
• Stylish strong metal box.

Note:

With two 8 ohms speakers connected to TC-22, switched to position 1 or 2, the load presented to amplifier is 8 ohms, switched
to middle (1+2) will make the two pairs connected serially and the load to amplifier is 16 ohms thus when both pairs are playing
which will not overload the amplifier.
