Schiit Freya MKI Tube Balanced Preamplifier with Remote [2nd hand]

Schiit Freya MKI Tube Balanced Preamplifier with Remote [2nd hand]

Schiit Freya MKI Tube Balanced Preamplifier with Remote [2nd hand]

Reference:

Condition:

pre-owned

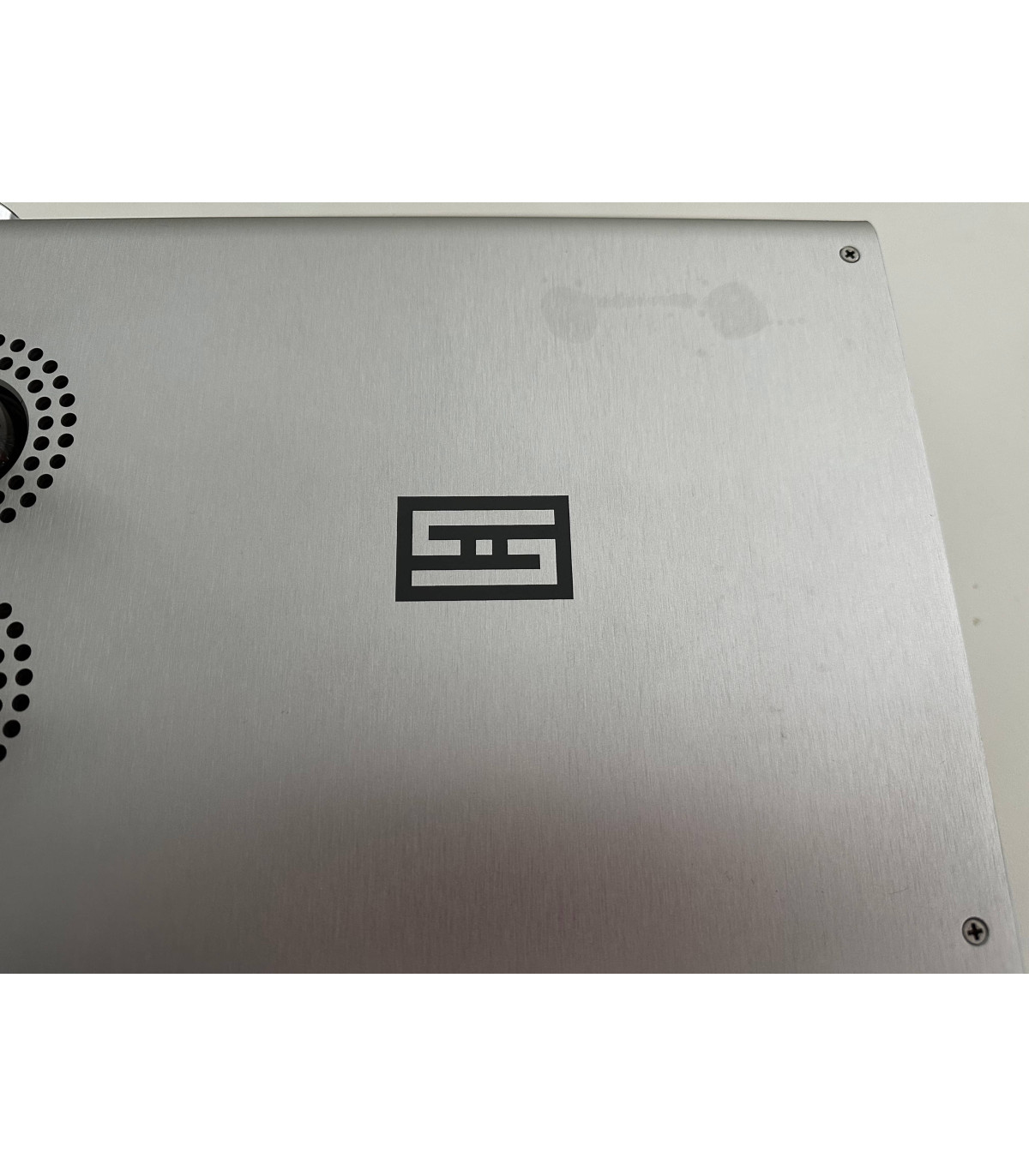

Used unit, in excellent condition, slight stain on the chassis, very small signs of use. Includes original packaging, remote control, accessories, and 1-year warranty.

6N8S Tube Version.

Freya is a true high-end, balanced, remote-control preamp. Switch between passive, differential buffer, and differential tube gain modes, and enjoy the fine control of a 128-step relay-switched stepped attenuator volume control with perfect channel matching.

Whisper-Silent Tube Stage—With Tube Shutdown

Now, you can enjoy a tube preamp without the hiss and hum of classic designs. Freya+ offers super-quiet tube modes with DC heaters and semi-circlotron, noise-cancelling output stages. Better yet, the tubes turn off when you’re not using them! That’s right, both the tube heater and high voltage rails go away when not in use, so you can preserve lifetime of costly tubes.

Forkbeard™: Total Control is Just the Start
Freya+ F includes Forkbeard, the only multi-product, multi-stack, unified control system. One iOS app gives you total control of Freya (and many other Schiit devices). Don’t want Forkbeard? Drop it off your order and save $50. You’ll still get the standard IR remote control.

The Ultimate Volume Control

The benefits of a relay-switched stepped attenuator for volume are clear. Compared to a potentiometer, they give you essentially perfect channel matching and near-unmeasurable distortion. However, some preamps with relay-stepped attenuators confuse you with buttons and screens. Not Freya+. Freya+ has a volume knob that works just like a volume knob—just grab and turn.

Designed and Built in the USA

By “designed and built in the USA" this is what we mean: the vast majority of the total production cost of Freya+ F—chassis, boards, transformers, assembly, etc—goes to US companies manufacturing in the US. Our chassis, transformers, PCBs, and assembly are all from California, and all Freyas come together in our San Antonio, Texas production facility.

SPECS THAT MATTER

Noise: inaudible
Distortion: unmeasurable by APx555 in passive mode, better than any transducer even in tube mode
Heat: gets quite warm; not surprising for a tube-based, Class A device

Size: shelf- and rack-friendly, not super desk-friendly

OTHER SPECS

Passive

Noise and distortion unmeasurable with APx555, below analyzer limits

Equipoise Differential Buffer

Gain: 1 (0dB)

Frequency Response: 20Hz-20Khz, -0.2db, 3Hz-500KHz, -3dB

THD: <0.004%, 20Hz-20KHz, at 1V RMS

IMD: <0.0055%, CCIR

SNR: >120dB, A-weighted, referenced to 2V RMS

Output Impedance: 75 ohms SE, 600 ohms balanced

Topology: JFET differential amplifier compound pair with equalized-gm followers

Tube Gain

Gain: 4 (12dB)

Frequency Response: 20Hz-20Khz, -0.2db, 3Hz-200KHz, -3dB

THD: <0.01%, 20Hz-20KHz, at 1V RMS

IMD: <0.01%, CCIR

SNR: >115dB, A-weighted, referenced to 2V RMS

Output Impedance: 75 ohms SE, 600 ohms balanced

Topology: differential triode input with semi-circlotron follower stage

LISST Gain

Gain: 5 (14dB)

Frequency Response: 20Hz-20Khz, -0.2db, 3Hz-150KHz, -3dB

THD: <0.005%, 20Hz-20KHz, at 1V RMS

IMD: <0.006%, CCIR

SNR: >114dB, A-weighted, referenced to 2V RMS

Output Impedance: 75 ohms SE, 600 ohms balanced

Topology: differential depletion MOSFET with semi-circlotron depletion MOSFET follower stage

Input Impedance: 10K ohms

Crosstalk: >85dB, 20-20kHz

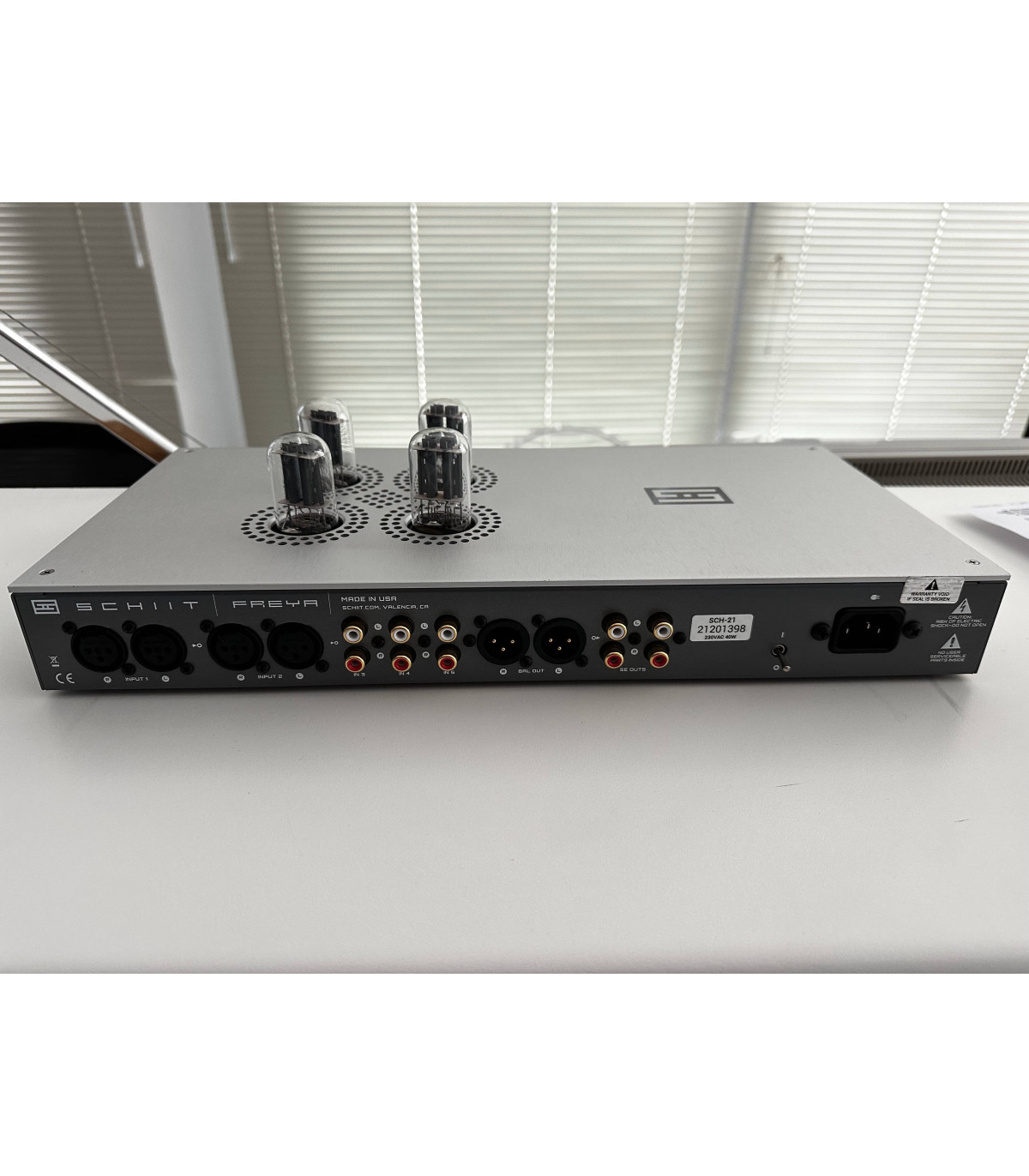

Inputs: 2 XLR pairs plus 3 RCA pairs, selectable via front switch or remote

Outputs: 1 XLR pair plus 2 RCA pairs, selectable via front switch or remote

Volume Control: relay-switched stepped attenuator with discrete thin-film resistors, 128 0.625dB steps

Power Supply: One 48VA transformer with regulated 300V rail, plus 24VA transformer with regulated +/-18V rails, plus 6.3VDC tube heaters and regulated 5VDC for microprocessor

Tubes: 6SN7, 6N8S, and 5692 types all OK. Other types may be accommodated with adapters. Do not exceed 2.4A total heater current for 4 tunes. CV181 tubes not recommended.

Remote:

Standard IR remote for all front panel functions: volume, input select, gain, mute, etc.
Standard Forkbeard control system for all the above, plus advanced functions including system health and alerts, and additional capabilities when more Schiit Forkbeard products are added to the stack.

Power Consumption: 40W typical

Size: 16” x 8” x 2” + tube height (about 2.5" more)

Weight: 11 lbs
