Trilogy Audio Systems 915R Stament Tube Preamplifier

2564

New product

24 000,00 €

This article it's not in stock but can be ordered and it will take a number of days indicated into the Blue tab below, to be shipped to you. Please verify the availability for immediate shipping of other eventual versions of the same product.


Description

The 915R preamplifier is Trilogy’s superlative statement pre amplifier, a culmination of decades of design knowledge and a no compromise brief. The sonic character of this design being as close to the live source in performance, has been realised. Boldness and subtlety are delivered with equal aplomb.

Openness, balance and agility produced with this preamp make music tangible, the listener is not left lacking feeling a nuance has been lost. Lithe sonic landscapes imbued with just the correct scale and perfect imaging.

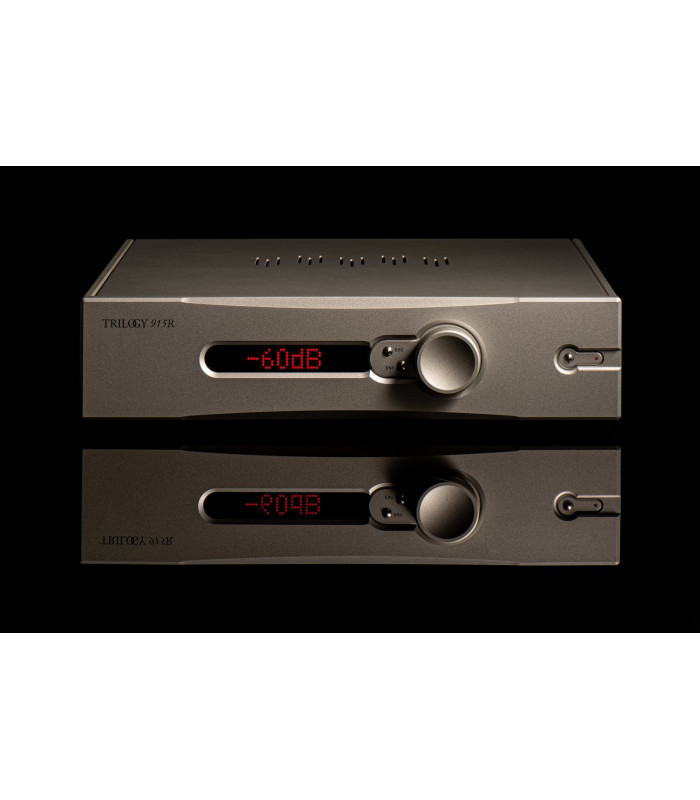

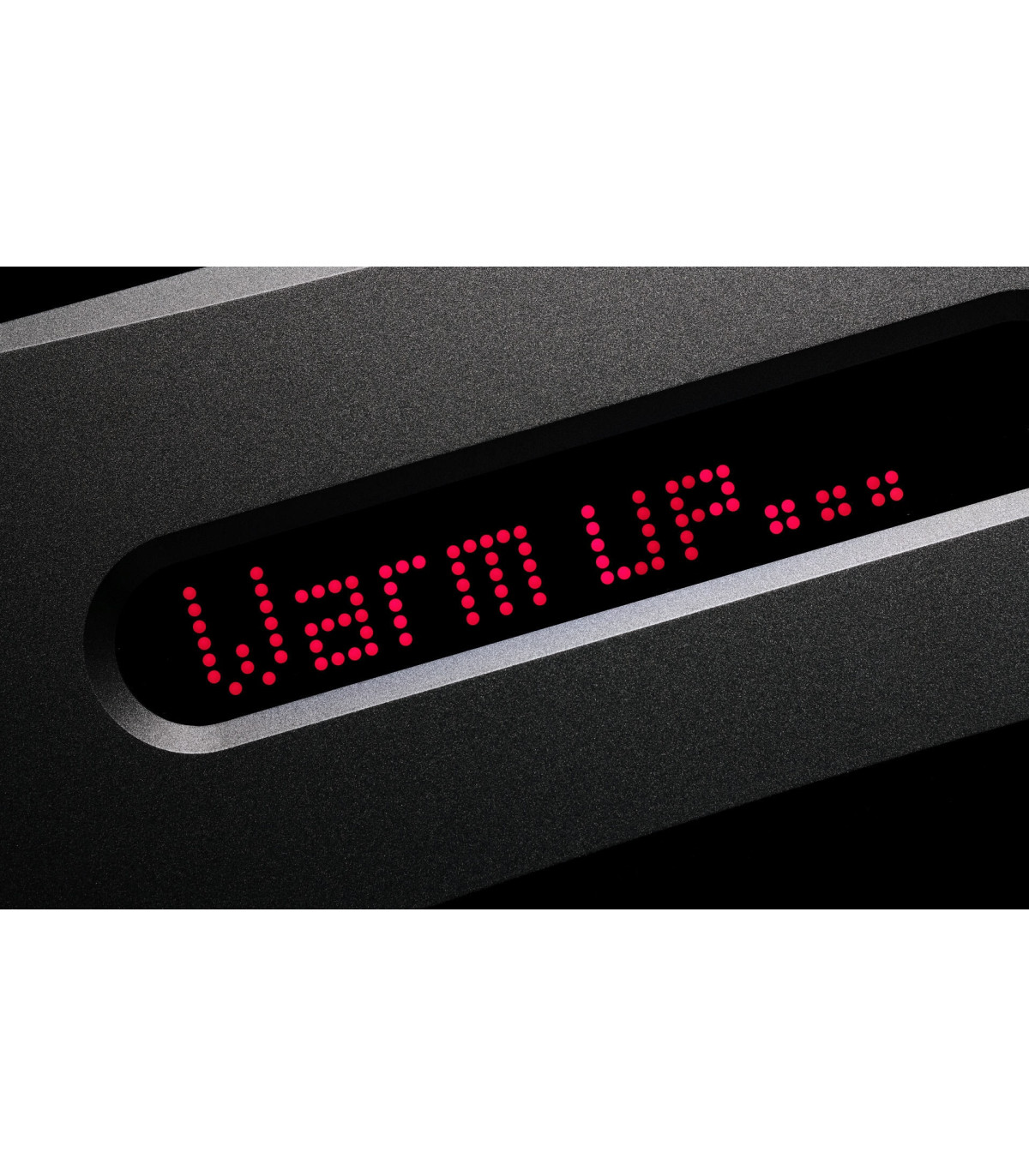

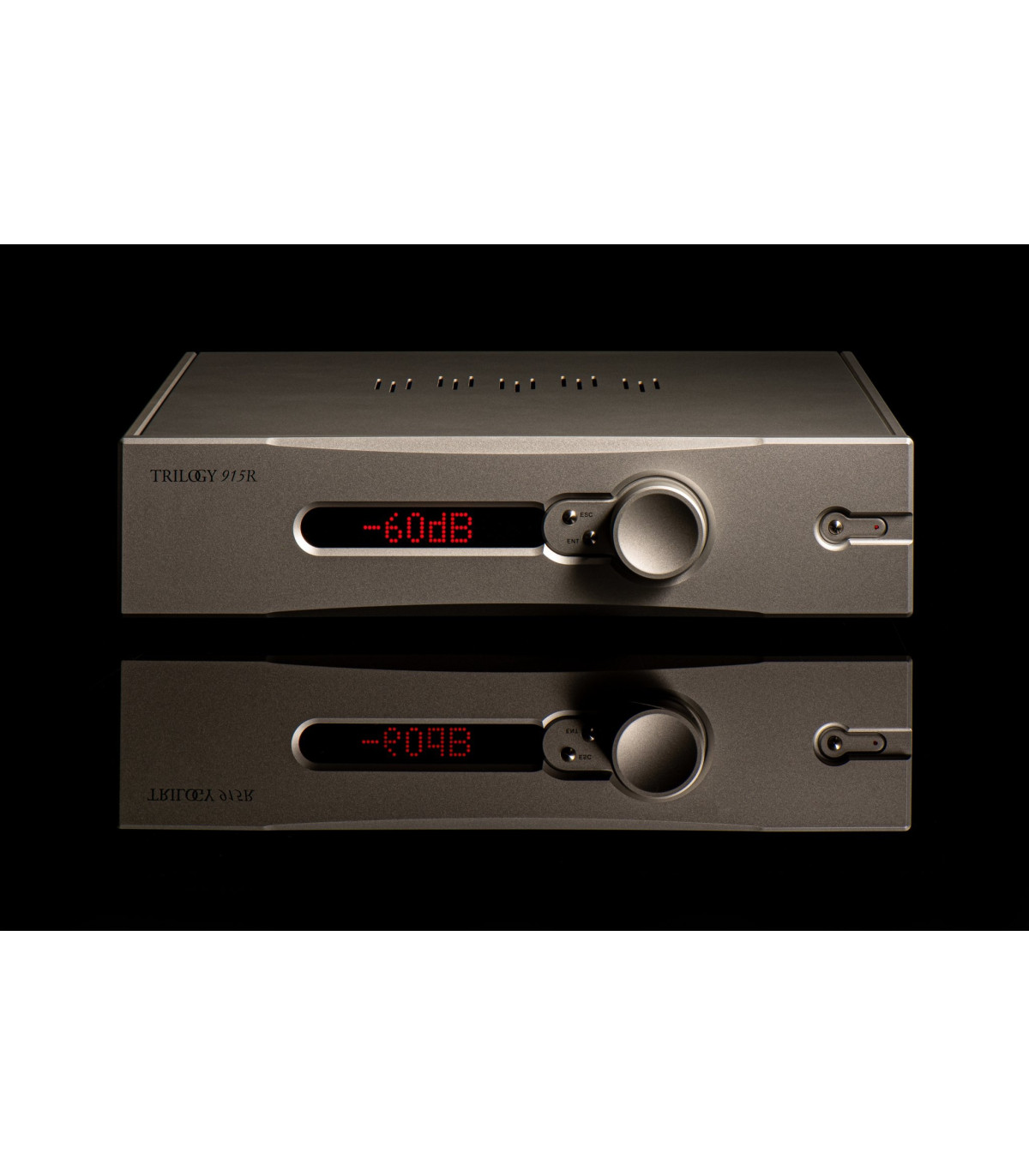

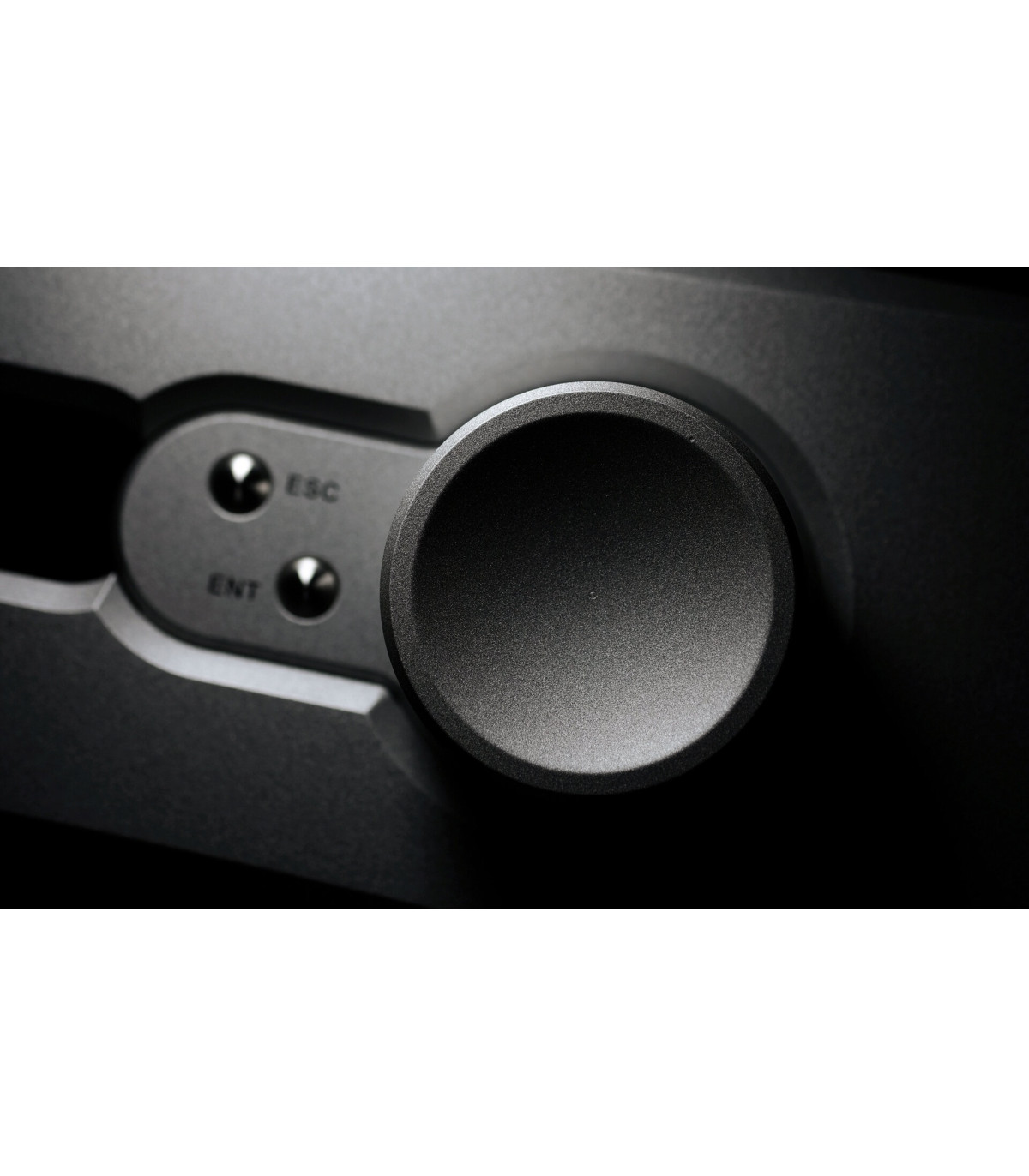

The control menu is accessible through a highly intuitive rotary encoder, this facilitates all the common functions being readily available with thoughtful implementation communicated through a large red LED dot matrix display. Display brightness, customised labels and gain trims for each input, film mode, security bonding, sleep countdown, timed system switch on via TAS link, and remote operation enable you to make the 915R a bespoke experience - an interface that is a joy to use. An optional security PIN code can be entered at start up which in the event of theft would render the unit unusable.

This is a preamplifier that anticipates all the users requirements. The inputs can be named individually, and channel balance configured to suit. Dig deeper into the menu and you will find the display of valves’ work hours or temperature read of connected Trilogy amps, real-time bar graph instead of volume level, days of week and the ability to schedule on and off times to everything connected via TASlink.

READ Hifidelity Poland’s Review HERE

READ 6Moons Review HERE

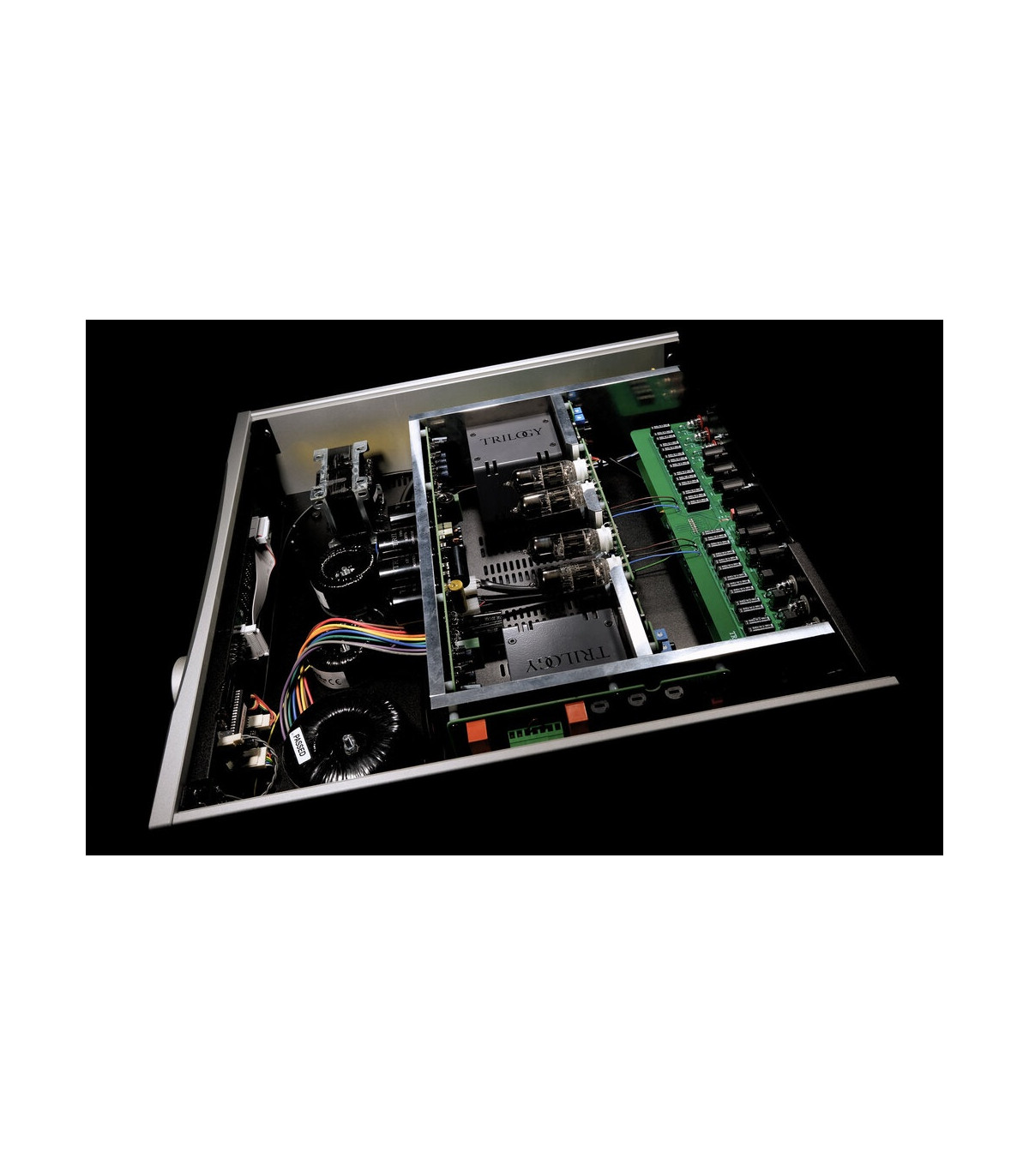

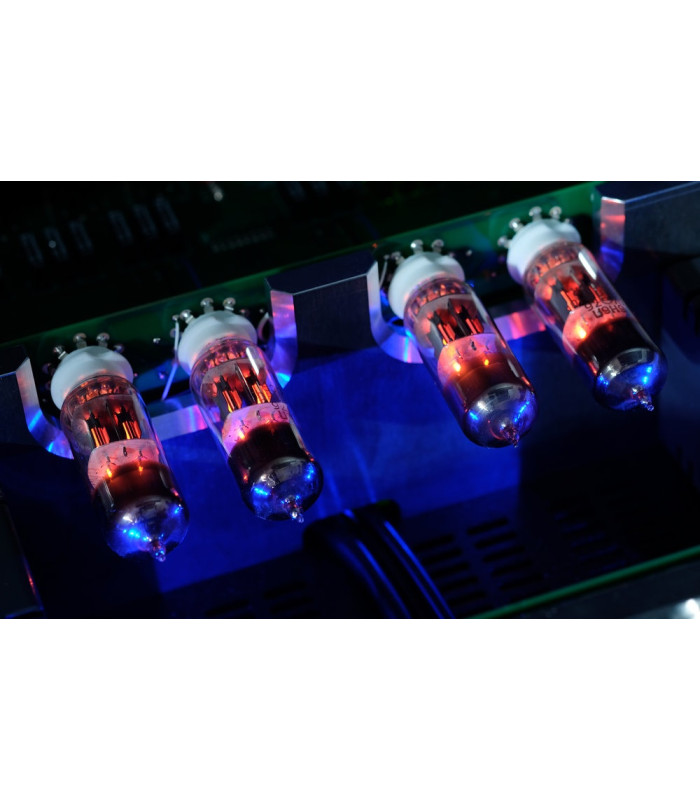

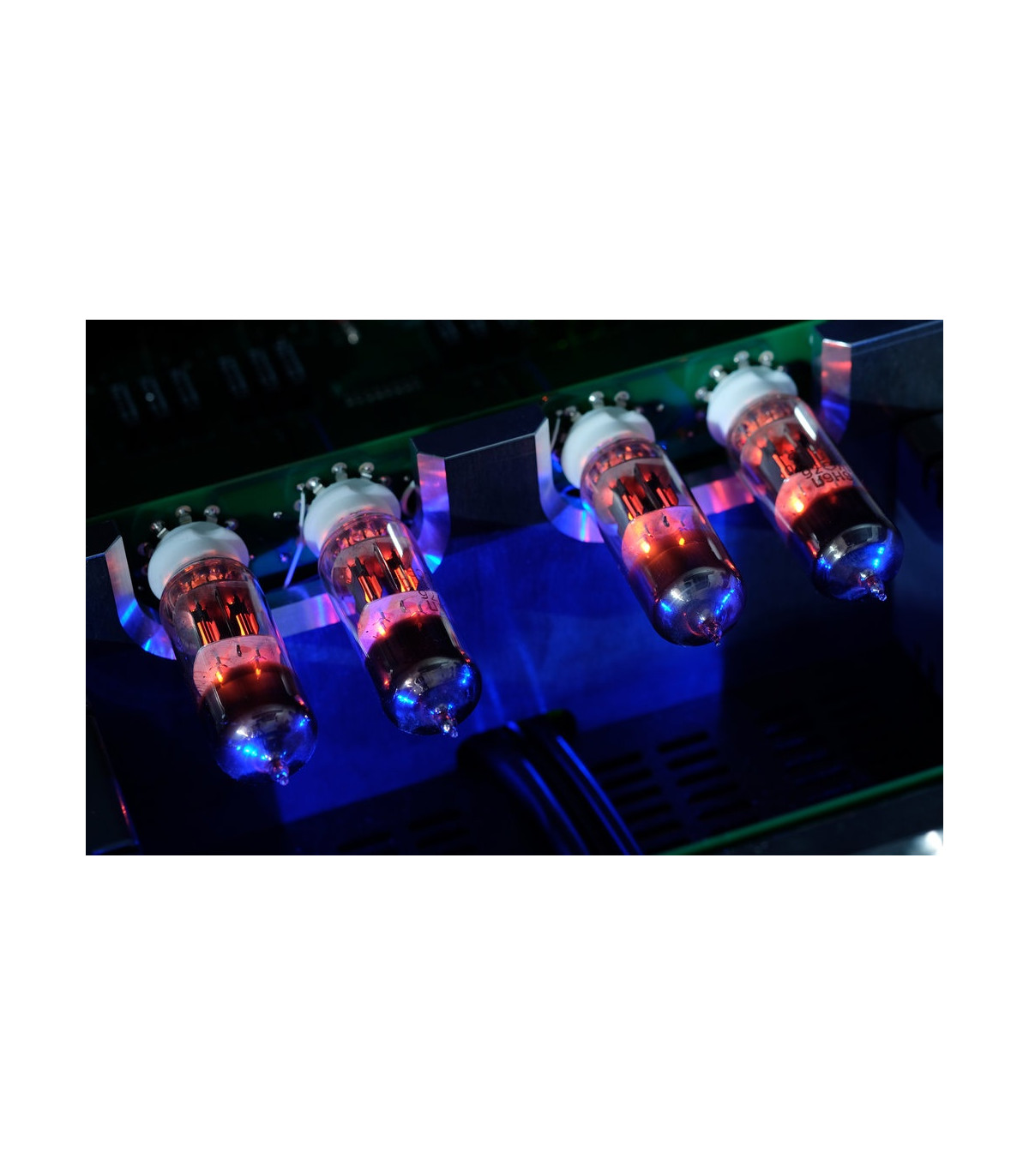

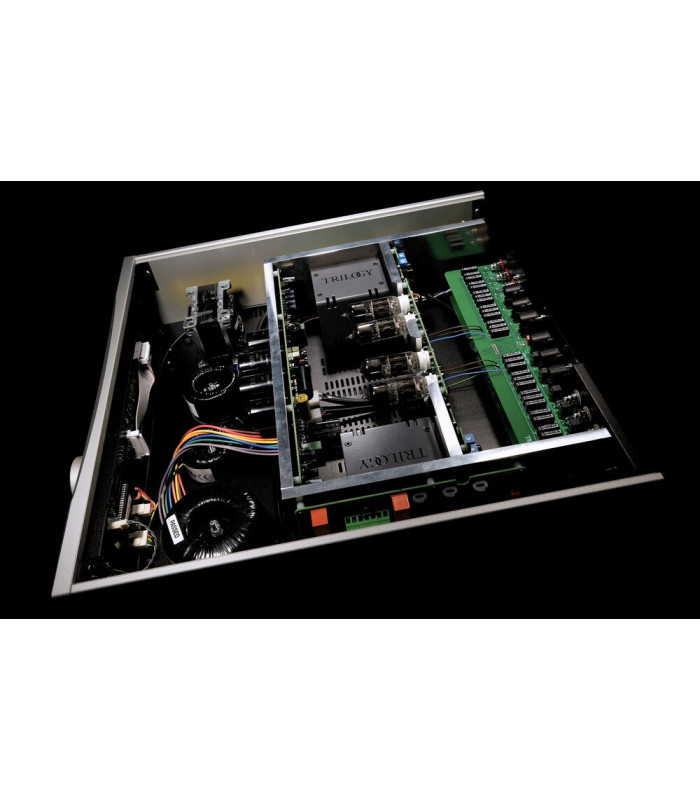

The gain stage uses the 6H6P super tube mounted in a billet compartment for the voltage gain, this tube performs exceptionally well in audio applications and its associated frequencies with true high fidelity and low distortion. A series of three transformers feed the power supply, the design actively shunt regulates the valves high voltage supply. The voltage rails ability to both sink and source current allows it to be both stable and quiet. Output is provided by the renowned Lundahl transformers.

It’s apex level topology is only equalled by the attention to its casing and detailing machined from billet alloy with the attention of a purist. The philosophy of utilising the optimum technology to solve a problem is the Trilogy ethos, encapsulated in the 915R preamplifier.

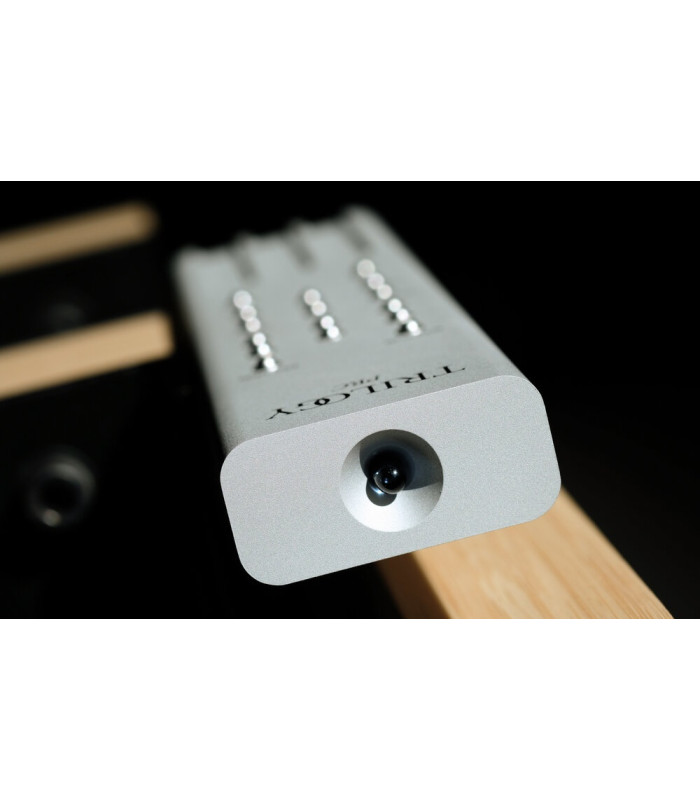

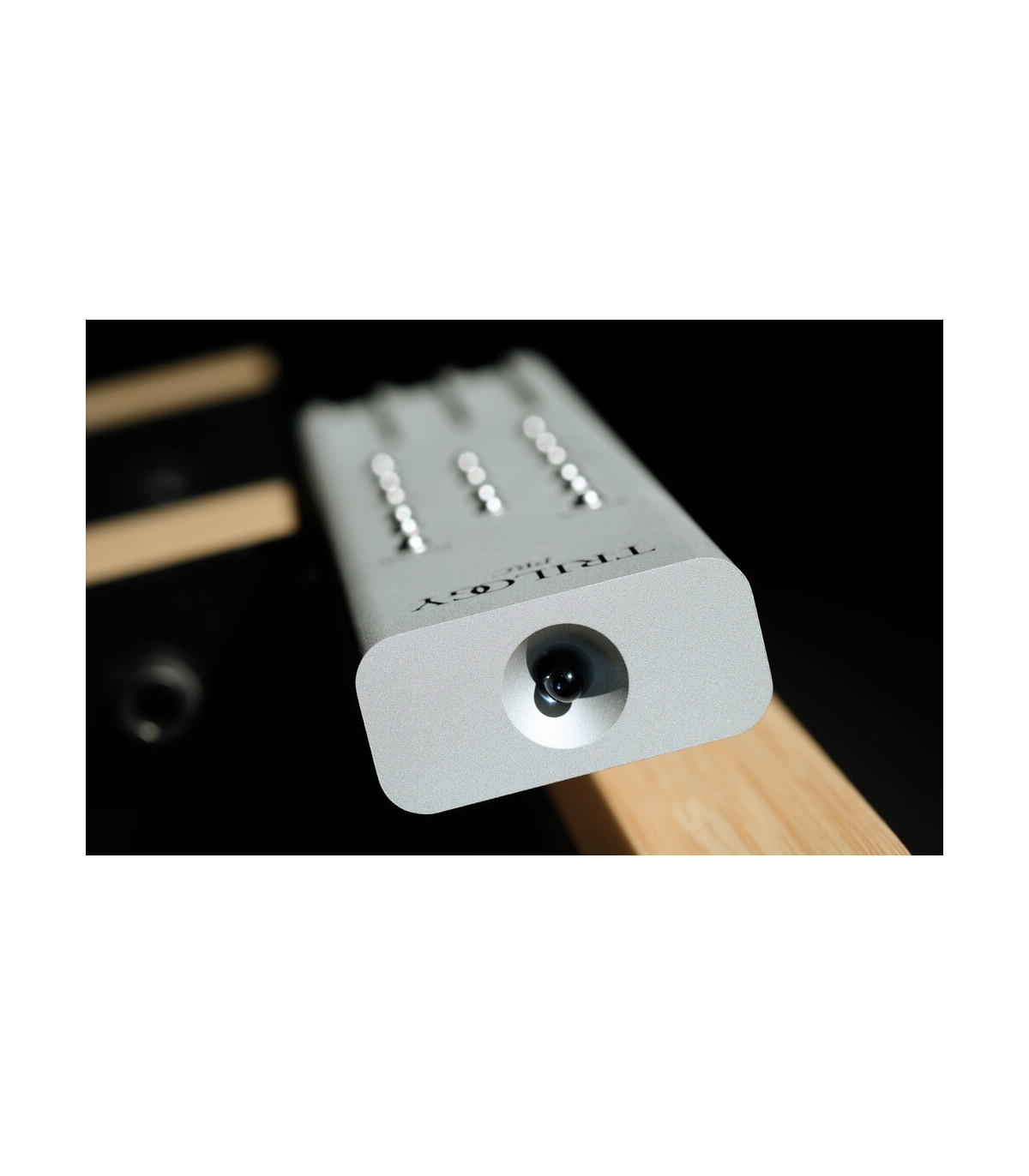

The preamp is supplied as standard with the stunning billet PRC remote, and a quality ISOL-8 IsoLink Wave power cord.

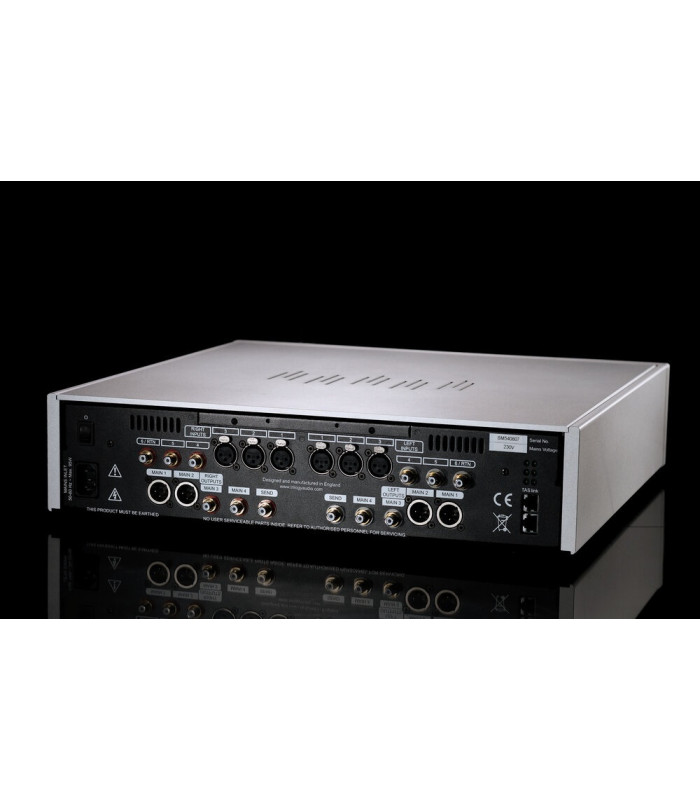

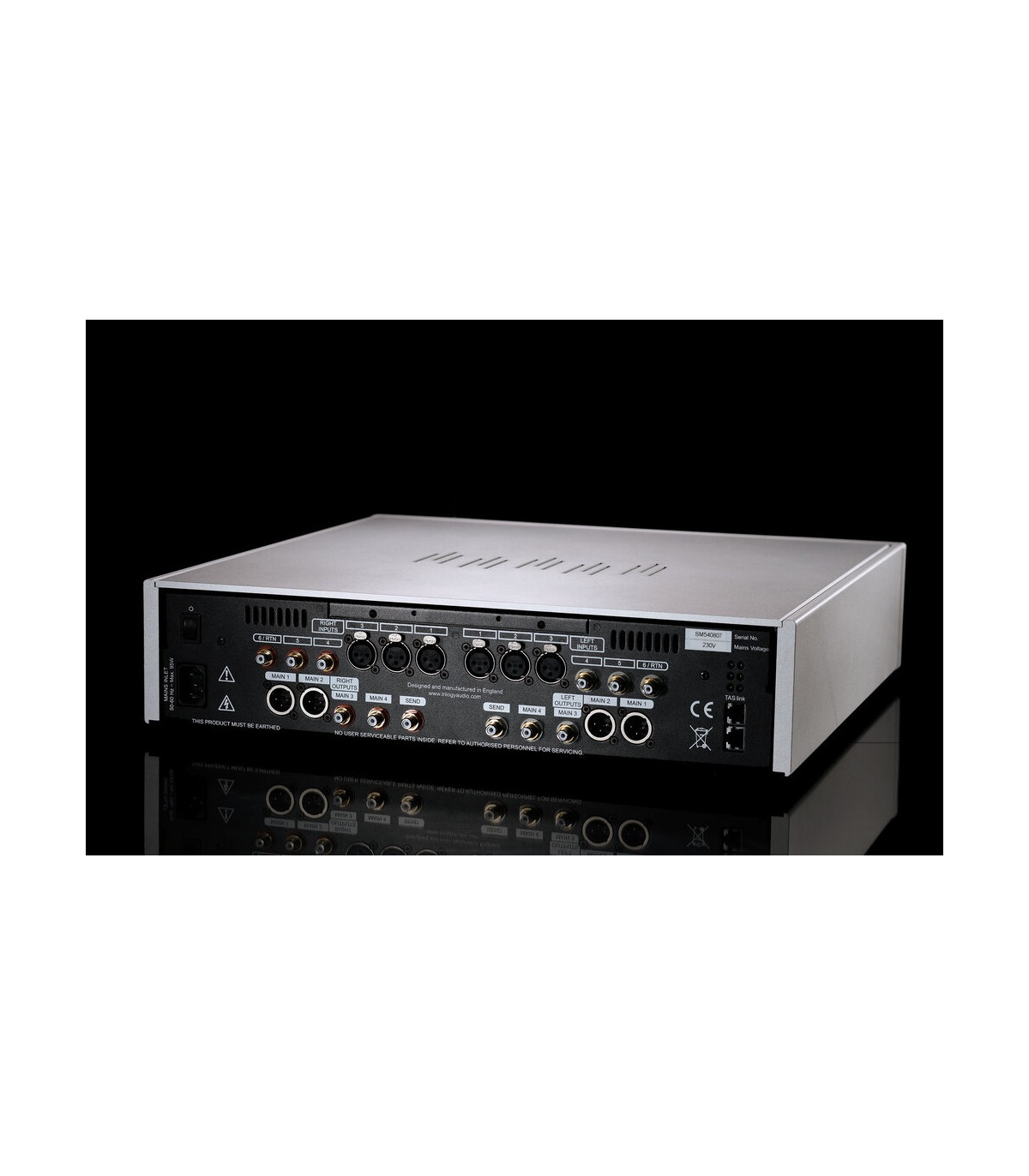

The 915R features a comprehensive range of inputs and outputs ; TASlink RJ45 socketry on the far right and a number of connections by Cardas (RCA) and Neutrik (XLR) in-between. There are six inputs (3x RCA, 3x XLR), four outputs (2x RCA, 2x XLR) and one RCA send (record) out in total. One of SE inputs can be also used as a return channel.

Specifications
 Size 465*450*117(W*D*H)
 Packaged Size 650*650*310 (W*D*H)
 Weight 19 Kg
 Packaged Weight 23 Kg
 Maximum Power consumption 95 Watts
 Inputs (balanced) 3 XLR 3 pin female
 Inputs (single ended) 3 pairs RCA phono sockets
 Input Impedance (balanced) >48K Ohms
 Input Impedance (single ended) >24K Ohms
 Main Outputs (balanced) 2 pairs XLR 3 pin male
 Main Outputs (single ended) 2 pairs RCA phono sockets
 Send (Tape) Outputs 1 pair RCA phono sockets
 Output impedance (Main) 600 Ohms
 Frequency response 20Hz-45KHz +/- 0.5dB
 Gain (Inputs to Send outputs) 0dB
 Gain (Inputs to Main outputs) 14 dB
 Phase Phase correct (non inverting)

--------------------------------------------------------------------------------------------------------------------

Introduzione alla Trilogy Audio Systems

'The essence of music

- engineered'

From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, we create products of true quality.

Look at the objects around you in your home or work place; the chances are much of what you see is the end result of derivative thinking. By bringing a small improvement to what already exists; a commercial niche is filled and a small advantage over your competitors is gained. Here at Trilogy Audio Systems we do things differently.

"Making some of the best-looking, best-finished and - appropriately - best-sounding kit in the UK today, but rarely shouting about it, is Trilogy."

KEN KESSLER - HIFI NEWS

Nic Poulson is the principal designer of all Trilogy Audio Systems products.

Nic's background was originally in broadcast engineering, training with the BBC in the eighties. The corporation's legendary high standards made a deep impression on him. He learned that the way to achieve true quality is to strive for excellence in every area and accept nothing less. He went on to found Trilogy in 1990 and quickly earned a reputation for producing designs that reflected his core values of performance, reliability, pride of ownership and value for money.

Nic's designs can also be found in runway lighting systems, guiding aircraft safely to land at major airports across the UK. His success in the exacting industry of aviation is further confirmation of his breadth and versatility as a designer.

After studying in depth the inherent weaknesses in most mains derived power supplies, and their surprising impact on sound quality, Nic founded Isotek and revolutionised the concept of mains conditioning. Now the creative force behind Isol-8 Teknologies, he has delivered award winning designs which display none of the negative qualities shown by previous generations of mains conditioners. His products have taken the audio community by storm and are sold to discerning users worldwide.

His design philosophy is the key to understanding all Trilogy products.

Instead of deciding a price point and assembling a product steering committee chaired by a marketing manager, Nic goes back to first principles: identifying the fundamental questions at the core of each design issue. By carefully addressing and optimising each electrical design element to deliver the optimum solution, his goal of minimum compromise is achieved.

We complement this by taking great care over the realisation of the design. Beauty, reliability and user friendliness are essential qualities that must be present as a design makes its way through the myriad processes that make a physical real world product.

These are the reasons why our designs are enduring. From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, we create products of true quality.

Several years in the making, the latest generation of Trilogy Audio Systems components remain true to our original core values. Engineered from the inside out with real heart and soul behind them, they will provide lasting satisfaction, making music for your pleasure. We hope you will share the experience with us soon.

Nic Poulson, progettista Trilogy Audio Systems


Designer

'The essence of music

- engineered'

From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, we create products of true quality.

Look at the objects around you in your home or work place; the chances are much of what you see is the end result of derivative thinking. By bringing a small improvement to what already exists; a commercial niche is filled and a small advantage over your competitors is gained. Here at Trilogy Audio Systems we do things differently.

"Making some of the best-looking, best-finished and - appropriately - best-sounding kit in the UK today, but rarely shouting about it, is Trilogy."

KEN KESSLER - HIFI NEWS

Nic Poulson is the principal designer of all Trilogy Audio Systems products.

Nic's background was originally in broadcast engineering, training with the BBC in the eighties. The corporation's legendary high standards made a deep impression on him. He learned that the way to achieve true quality is to strive for excellence in every area and accept nothing less. He went on to found Trilogy in 1990 and quickly earned a reputation for producing designs that reflected his core values of performance, reliability, pride of ownership and value for money.

Nic's designs can also be found in runway lighting systems, guiding aircraft safely to land at major airports across the UK. His success in the exacting industry of aviation is further confirmation of his breadth and versatility as a designer.

After studying in depth the inherent weaknesses in most mains derived power supplies, and their surprising impact on sound quality, Nic founded Isotek and revolutionised the concept of mains conditioning. Now the creative force behind Isol-8 Teknologies, he has delivered award winning designs which display none of the negative qualities shown by previous generations of mains conditioners. His products have taken the audio community by storm and are sold to discerning users worldwide.

His design philosophy is the key to understanding all Trilogy products.

Instead of deciding a price point and assembling a product steering committee chaired by a marketing manager, Nic goes back to first principles: identifying the fundamental questions at the core of each design issue. By carefully addressing and optimising each electrical design element to deliver the optimum solution, his goal of minimum compromise is achieved.

We complement this by taking great care over the realisation of the design. Beauty, reliability and user friendliness are essential qualities that must be present as a design makes its way through the myriad processes that make a physical real world product.

These are the reasons why our designs are enduring. From a passion to remain true to the essence of music, and by keeping all the key design elements in harmony, we create products of true quality.

Several years in the making, the latest generation of Trilogy Audio Systems components remain true to our original core values. Engineered from the inside out with real heart and soul behind them, they will provide lasting satisfaction, making music for your pleasure. We hope you will share the experience with us soon.

"I firmly believe that making exceptional products is a combination of knowledge and intuition, or passion if you prefer. My passion lay firmly with analogue electronics. I also have little or no interest in digital circuits. I understand what’s going on with them but have no feeling about them." - Nic Poulson

Nic Poulson, Trilogy Audio Systems Designer
