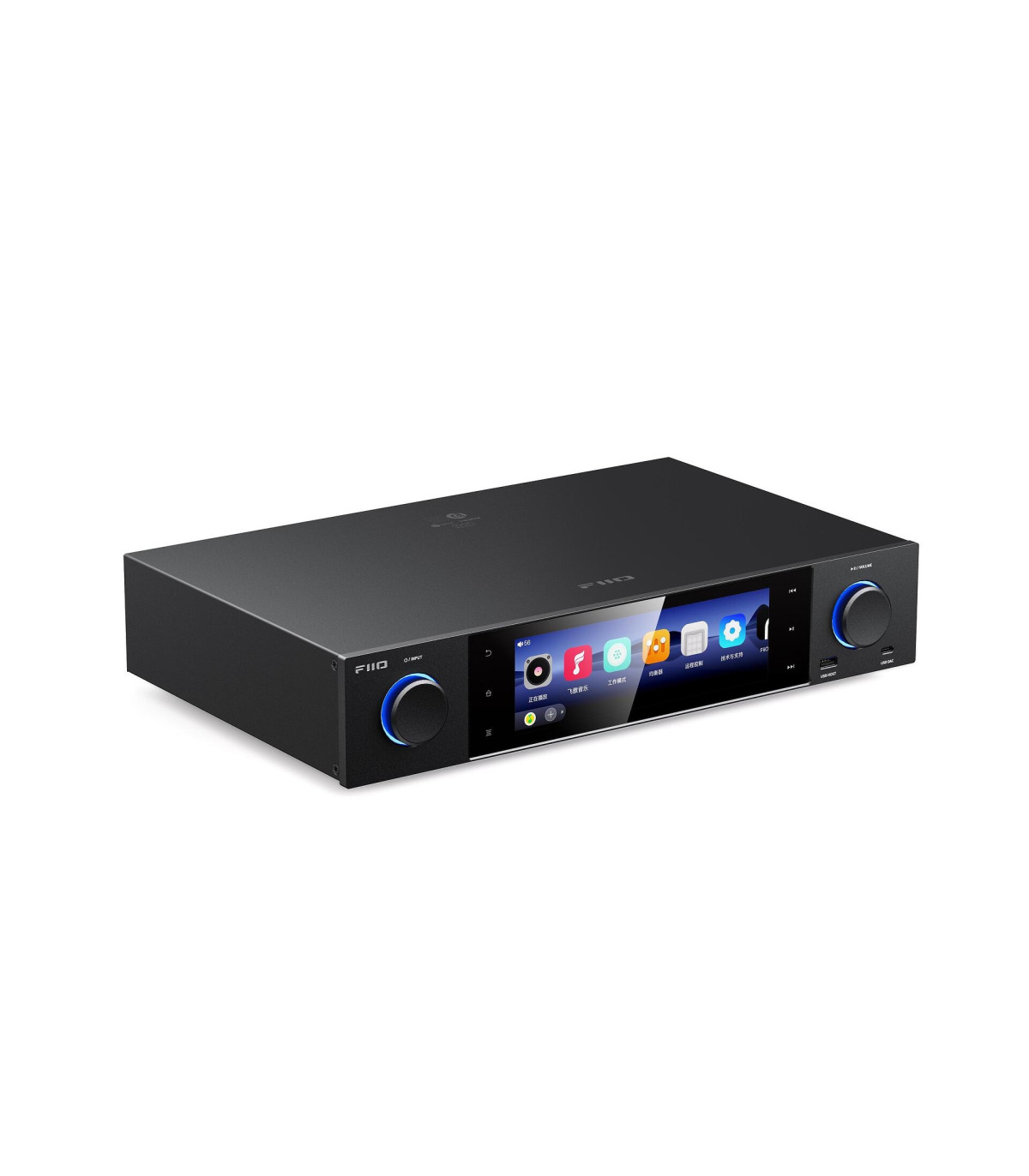

FiiO S15 Streamer Preamplifier DAC
FiiO S15 Streamer Preamplifier DAC
- Media streamer-local playback-decoder-preamplifier
- Flagship AKM DAC combo AK4191+AK4499EX
- Ultra-low phase noise femtosecond crystal oscillator Android12+custom landscape display
- Snapdragon 660 + Qualcomm QCC5125 + XMOS 16-core XU316
- 35W Iow-noise linear power supply
- 7.84-inch automotive-grade large color screen Fully balanced analog audio architecture
- HDMI/ARC decoding
Flagship Features
The S15 leverages the highly praised AKM flagship DAC combination—AK4191 paired with AK4499EX. This innovative design separates the digital and analog components completely, integrating “DWA ROUTING Technology” to enhance sound clarity. The result is a quieter background, greater resolution, and a natural, effortless, and immersive listening experience.
To achieve exceptional decoding accuracy and digital output precision, the S15 employs two cutting-edge ACCUSILICON AS318-B ultra-low phase noise femtosecond oscillators (45.1584MHz and 49.1520MHz), rigorously screened for quality. These oscillators significantly minimize phase noise interference in audio signals, enabling the S15 to deliver reference-grade sound when paired with premium external decoders and amplifiers.
Furthermore, the S15 incorporates three flagship-level systems: the Qualcomm Snapdragon 660, the Qualcomm Bluetooth QCC5125 chip, and the XMOS 16-core XU316. This high-end configuration reflects years of refinement and expertise through successive flagship products, ensuring unparalleled stability and performance across a variety of listening scenarios for an exceptional audio experience.
Extensive Connectivity Options

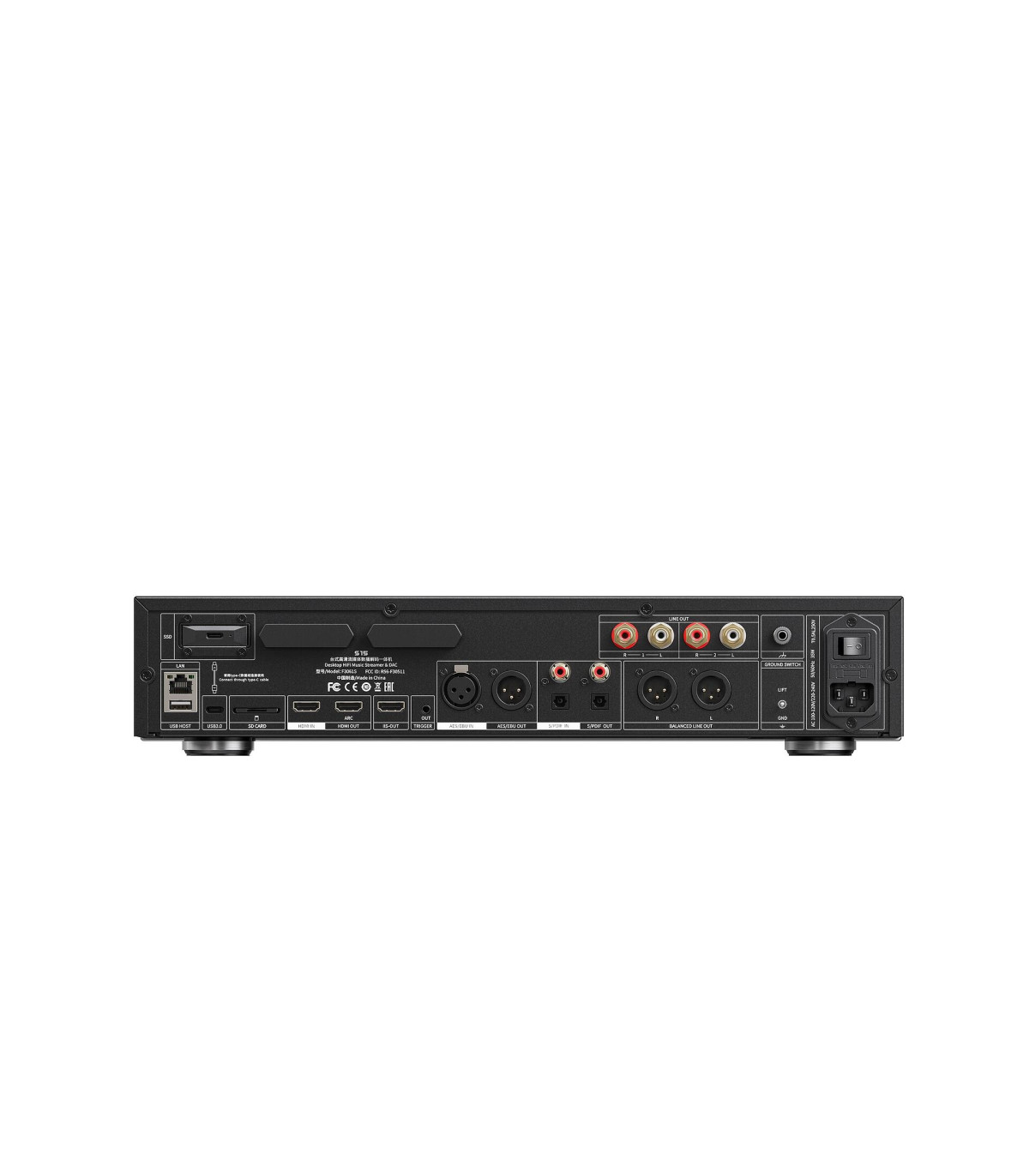

The S15 features a wide range of digital and analog connectivity options, including I2S output, AES input/output, coaxial input/output, HDMI input/output/ARC, RCA line-out, optical input/output, and XLR balanced line-out.
Designed to meet diverse connectivity requirements, the S15 is built with carefully selected components to optimize sound quality throughout the entire audio system.
Both coaxial and AES outputs utilize digital audio isolation transformers, offering isolation performance similar to optical outputs.
The XLR port employs NEUTRIK’s tulip-style design, ensuring durability and stable connections. Meanwhile, the RCA outputs are crafted from gold-plated copper, with internal wiring made from oxygen-free copper to guarantee high-fidelity signal transmission with minimal loss.
Integrated and Intuitive Control
Equipped with a custom Android 12 system, the S15 includes a portrait-mode display interface that allows users to fully customize the desktop for a more personal and intuitive experience. The FiiO Music app has been specially optimized for horizontal screens, delivering seamless control over music playback and settings while supporting visual audio effects like VU meters for added functionality and enjoyment.

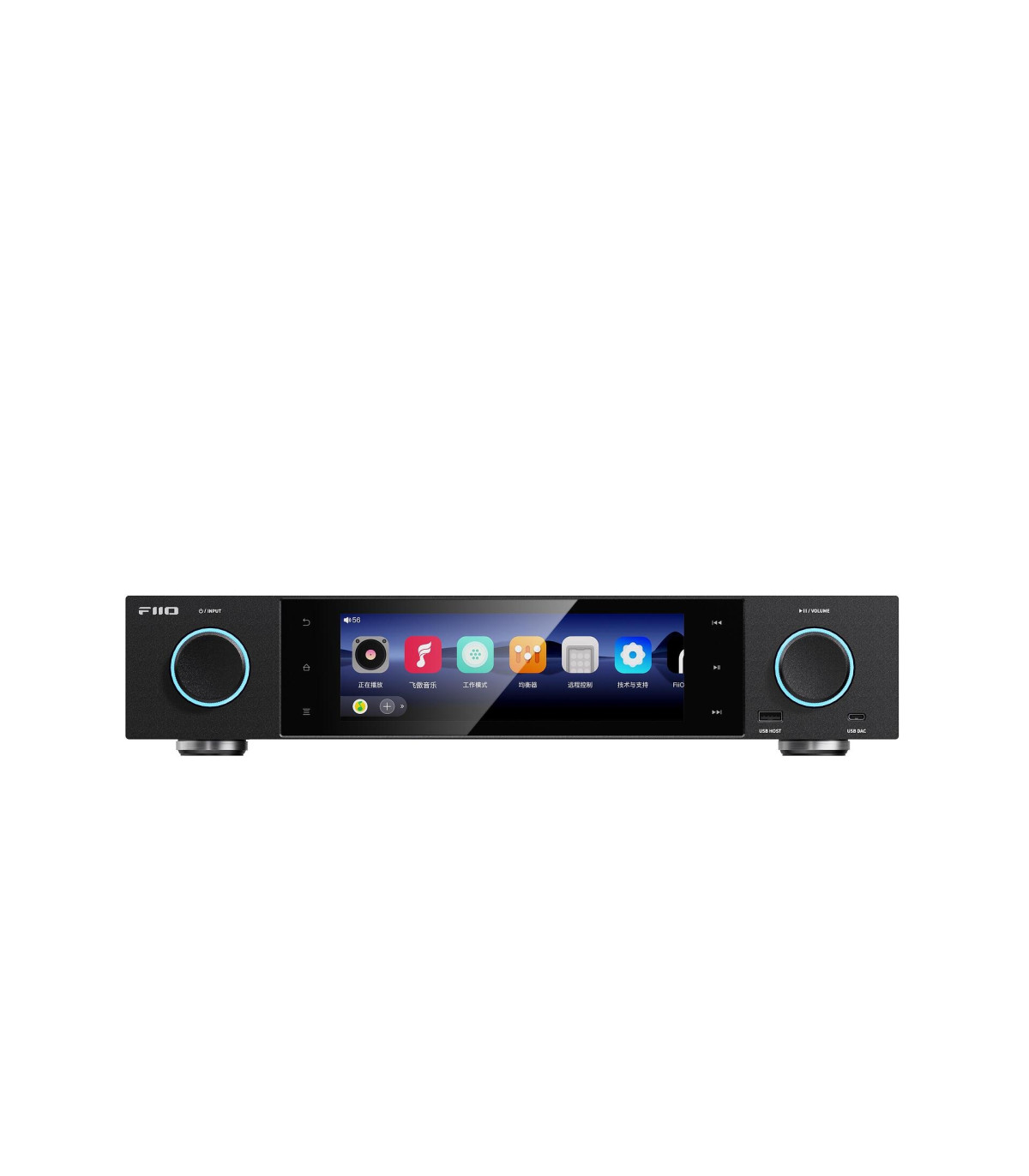

The 7.84-inch automotive-grade full-color display, combined with the all-new FIIO OS, ensures the S15 performs exceptionally well in various use scenarios.
Dual Knobs + Virtual Buttons: The dual physical knobs and virtual keys provide flexible, precise control, making quick adjustments more convenient for certain operations.
Bluetooth Remote: The included Bluetooth remote allows users to manage playback, adjust volume, and save favorite tracks with a single click, all from a distance.
App-Based Control: The innovative dual-screen setup enables users to fully control the S15 through their smartphone, offering a seamless and comprehensive user experience.
SPECIFICATIONS:
|
General Specifications |
|||
|
Name/Model |
S15 |
Hardware solution |
Master control: Qualcomm Snapdragon 660, DAC: AK4191+AK4499EX, USB decoding: XU316, Bluetooth: QCC5125 (reception) |
|
Work mode |
Android mode/Pure Music mode/USB DAC mode/Bluetooth receiving mode/AirPlay mode/Coaxial Decoding mode/Roon Ready/Optical Decoding mode/HDMI IN mode, HDMI ARC mode and AES Decoding mode |
||
|
Color |
Black/Silver |
Weight |
About 5647g |
|
Dimensions |
About 430x274.5x89.5mm |
Volume control |
Volume knob |
|
Display |
7.84-inch (400*1280) bezel-less display |
ROM |
64GB/About 46GB available |
|
RAM |
4GB |
M.2 portable hard disk |
Supports 2TB |
|
Storage card |
Single microSD card expansion, supports up to 2TB in theory |
Channel balance |
L20~R20 (each for 0.5dB) |
|
Buttons and Ports |
|||
|
Knob |
Encoder knob (including volume adjusting)*1+Output selection knob (including power on/off)*1 |
USB |
Type-C USB3.0*1+USB A*2 (data transfer) |
|
Grounding terminal |
M6x23mm grounding terminal |
Toggle switch |
Ground selection switch*1 |
|
Balanced line-out port |
XLR3 balanced port |
Single-ended line-out port |
RCA port*2 |
|
Digital optical input port |
Optical port |
Digital coaxial input port |
RCA port |
|
Digital optical output port |
Optical port |
Digital coaxial output port |
RCA port |
|
AES input port |
XLR3 balanced port |
AES output port |
XLR3 balanced port |
|
TRIGGER port |
Standard 3.5mm headphone port (TRIGGER OUT port*1) |
HDMI port |
HDMI IN port*1, HDMI OUT (ARC) port*1 |
|
Ethernet port |
100M Ethernet port |
I2S port |
HDMI I2S output port*1 |
|
Special Functions |
|||
|
WiFi |
2.4GHz/5GHz, supports DLNA, AirPlay, WiFi song transfer, Roon Ready, etc. |
Bluetooth transmission (5.0) |
AAC/SBC/aptX/aptX HD/LDAC/LHDC |
|
Bluetooth reception (5.1) |
SBC/AAC/aptX/aptX LL/aptX HD/aptX Adaptive/LDAC |
FIIO Link |
Android supports WiFi and Bluetooth control, iOS supports Bluetooth control |
|
HDMI decoding |
Supports audio decoding for DVD/set-top box/computer |
HDMI ARC |
Supports audio decoding for devices with ARC function |
|
HDMI I2S |
Supports audio decoding for devices with I2S input |
All to DSD |
Supported |
|
EQ adjustment |
10-band dynamic EQ adjustment (±12dB), built-in 8 preset EQ, supports self-define EQ |
MQA |
Supports full decoding |
|
Operating mode |
Supports gesture navigation, two-button navigation and three-button navigation |
Bluetooth codec indicator (knob indicator light) |
Blue: SBC |
|
Max. supported sampling rate |
USB DAC: Up to768kHz/32bit; DSD512 (Native) |
Cyan: AAC |
|
|
Native decoding: Up to384kHz/32bit; DSD256 (Native) |
Purple: aptX/aptX LL |
||
|
USB Audio: 768kHz/32bit; DSD512 (supports DoP/D2P/Native) |
Yellow: aptX HD |
||
|
Coaxial in decoding: Up to192kHz/24bit |
White: LDAC |
||
|
AES in decoding: Up to192kHz/24bit |
Green: aptX Adaptive |
||
|
Optical in decoding: Up to96kHz/24bit |
Orange: LHDC |
||
|
Coaxial out: Up to384kHz/24bit; DSD128 (D2P/DOP) |
Sampling rate indicator (knob indicator light) |
Blue: Lossy |
|
|
AES out: Up to384kHz/24bit; DSD128 (D2P/DOP) |
Cyan: SQ |
||
|
Optical out: Up to192kHz/24bit |
Yellow: HR |
||
|
HDMI in: Up to192kHz/24bit |
Green: DSD |
||
|
HDMI out: Up to192kHz/24bit |
Magenta: MQA |
||
|
Screensaver |
Supported |
Double tap to wake up |
Supported |
|
Firmware upgrade |
Supports upgrade through local storage+microSD card+OTA |
|
|
|
Power Supply Parameters |
|||
|
Power supply |
Supports AC 110~120V/220~240V 50/60Hz; 230V and 115V input level switch |
|
|
|
Audio Parameters |
|||
|
Performance and parameters of pre XLR out (XLR3 out, USB DAC/Optical/Coaxial/AES decoding) |
|||
|
THD+N |
＜0.00023% (1kHz/0dB@10KΩ) |
SNR |
≥131dB (A-weighted) |
|
Crosstalk |
≥126dB |
Noise floor |
＜2.6uV (A-weighted) |
|
Frequency response |
20Hz~70kHz: attenuation＜2.8dB |
Line output level |
8.9Vrms |
|
20Hz~20KHz: attenuation＜0.3dB |
|
|
|
|
Performance and parameters of pre RCA out (RCA out, USB DAC/Optical/Coaxial/AES decoding) |
|||
|
THD+N |
＜0.00026% (1kHz/-0dB@10KΩ) |
SNR |
≥128dB (A-weighted) |
|
Crosstalk |
≥120dB |
Noise floor |
＜1.8uV (A-weighted) |
|
Frequency response |
20Hz~70kHz: attenuation＜2.8dB |
Line output level |
4.5Vrms |
|
20Hz~20KHz: attenuation＜0.3dB |
|
|
|
|
Performance and parameters of XLR out (XLR3 out, USB DAC/Optical/Coaxial/AES decoding) |
|||
|
THD+N |
＜0.00026% (1kHz/-0dB@10KΩ) |
SNR |
≥126dB (A-weighted) |
|
Crosstalk |
≥120dB |
Noise floor |
＜2.5uV (A-weighted) |
|
Frequency response |
20Hz~70kHz: attenuation＜2.8dB |
Line output level |
4.8Vrms |
|
20Hz~20KHz: attenuation＜0.3dB |
|
|
|
|
Performance and parameters of RCA out (RCA out, USB DAC/Optical/Coaxial/AES decoding) |
|||
|
THD+N |
＜0.00027% (1kHz/-0dB@10KΩ) |
SNR |
≥122dB (A-weighted) |
|
Crosstalk |
≥117dB |
Noise floor |
＜1.8uV (A-weighted) |
|
Frequency response |
20Hz~70kHz: attenuation＜2.8dB |
Line output level |
2.4Vrms |
|
20Hz~20KHz: attenuation＜0.3dB |
|
|
|
