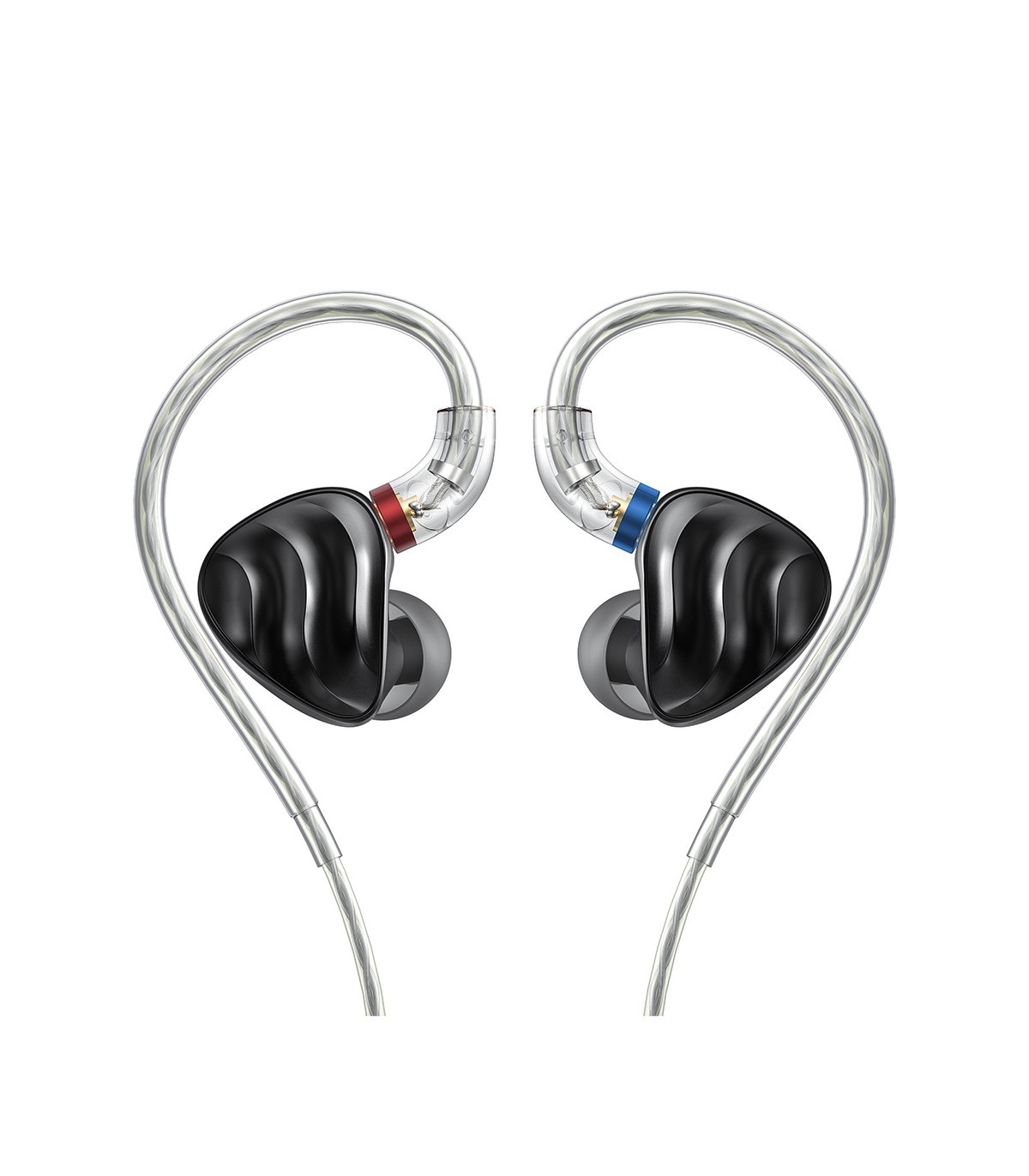

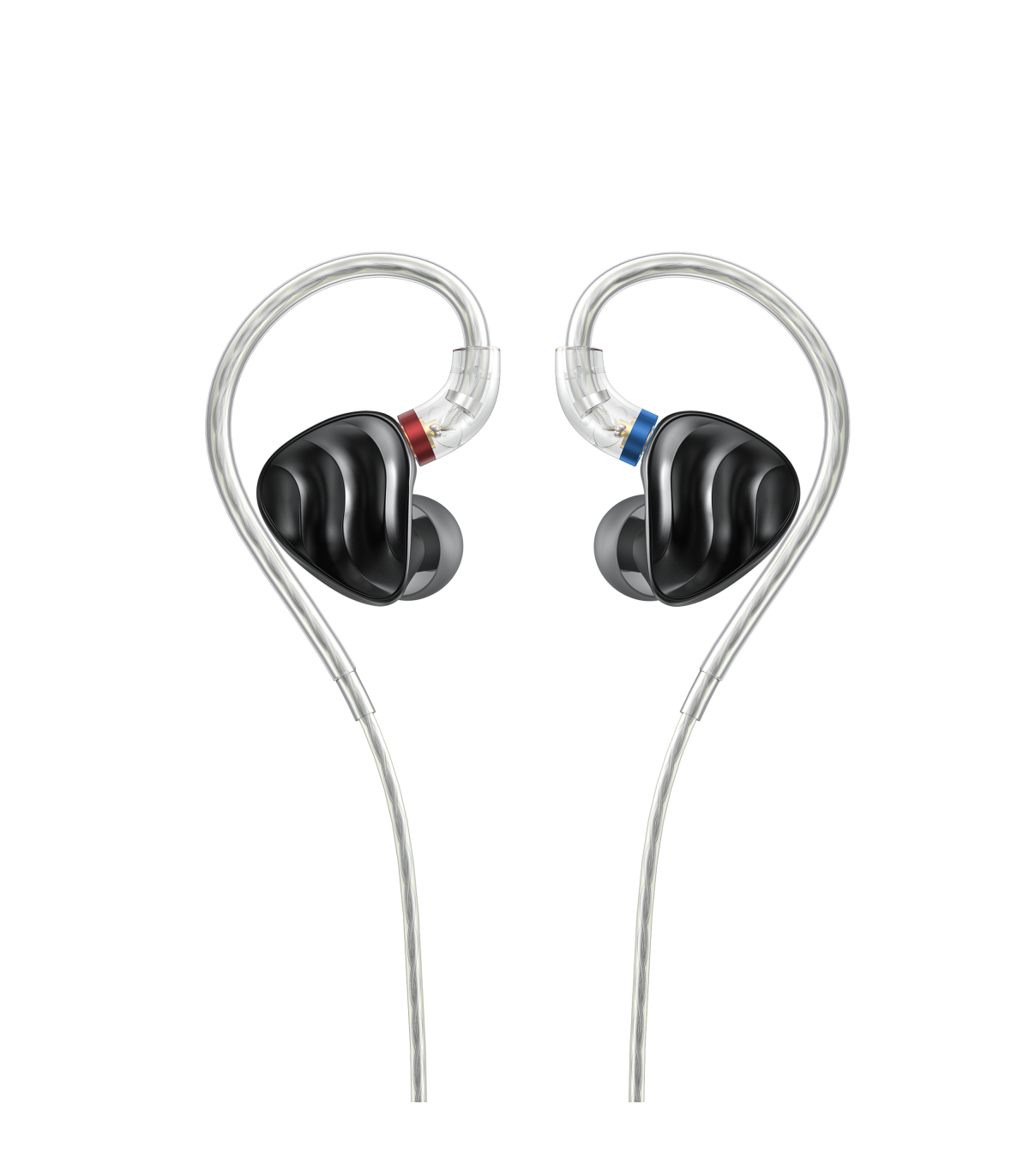

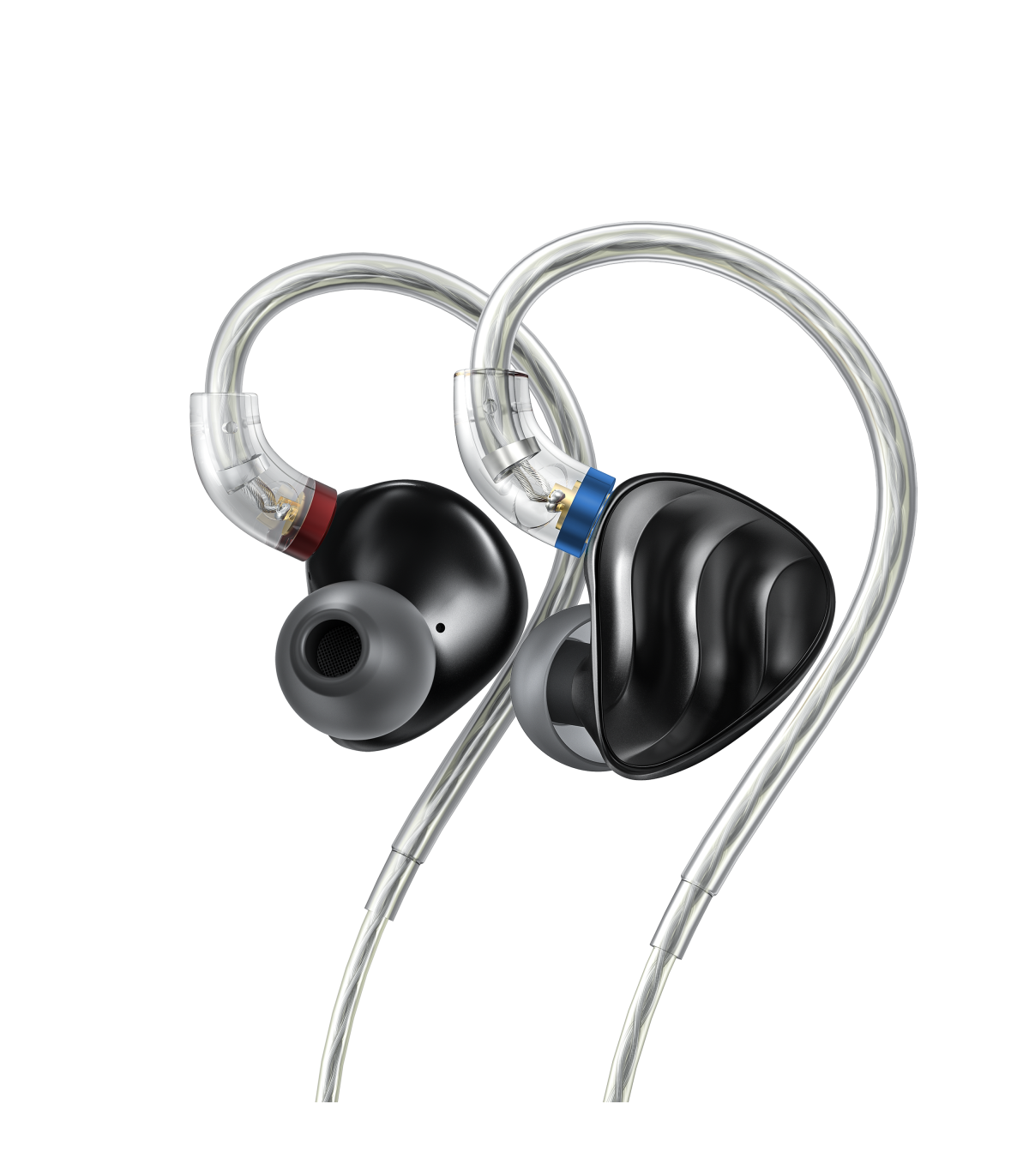

FIIO FH3 2BA + 1 Dynamic Driver Hybrid MMCX HiFI Audiophile In-ear Earphone IEMS

Description

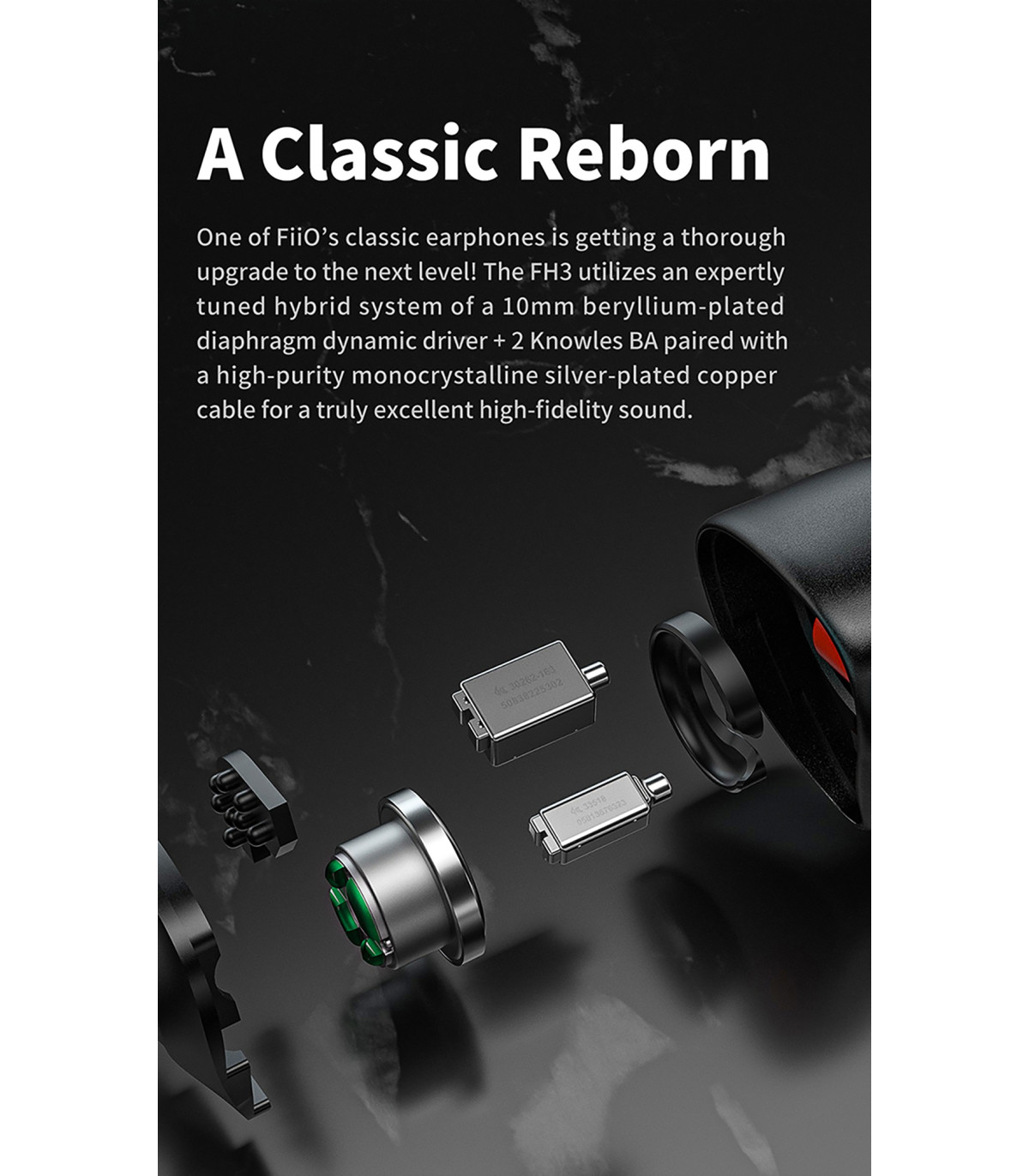

A classic reborn
One of FiiO’s classic earphones is getting a thorough upgrade to the next level! The FH3 utilizes an expertly tuned hybrid system of a 10mm beryllium-plated diaphragm dynamic driver + 2 Knowles ВА paired with a high-purity monocrystalline silver-plated copper cable for a truly excellent high-fidelity sound.

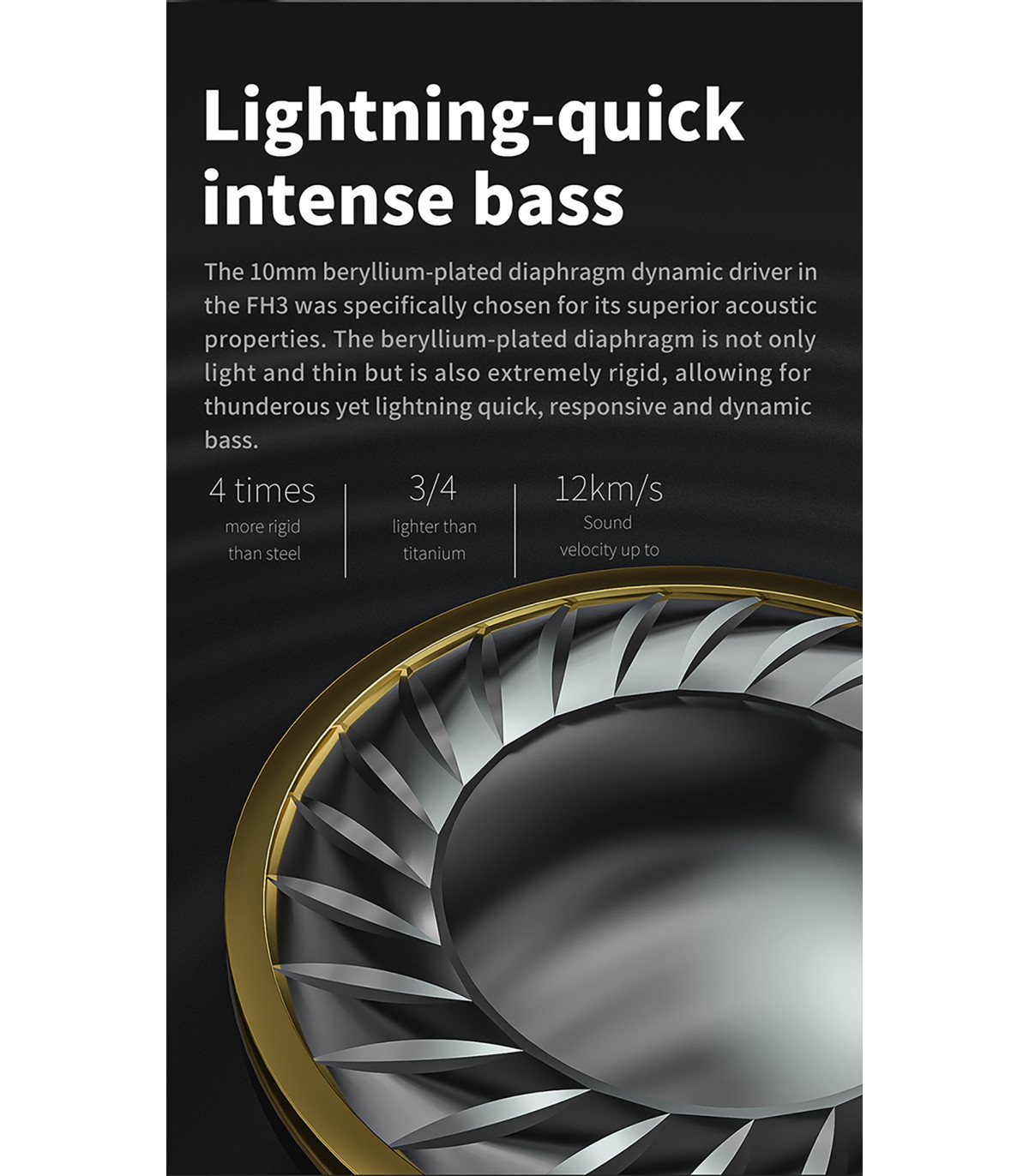

Lightning-quick, intense bass
The 10mm beryllium-plated diaphragm dynamic driver in the FH3 was specifically chosen for its superior acoustic properties. The beryllium-plated diaphragm is not only light and thin but is also extremely rigid, allowing for thunderous yet lightning quick, responsive and dynamic bass.

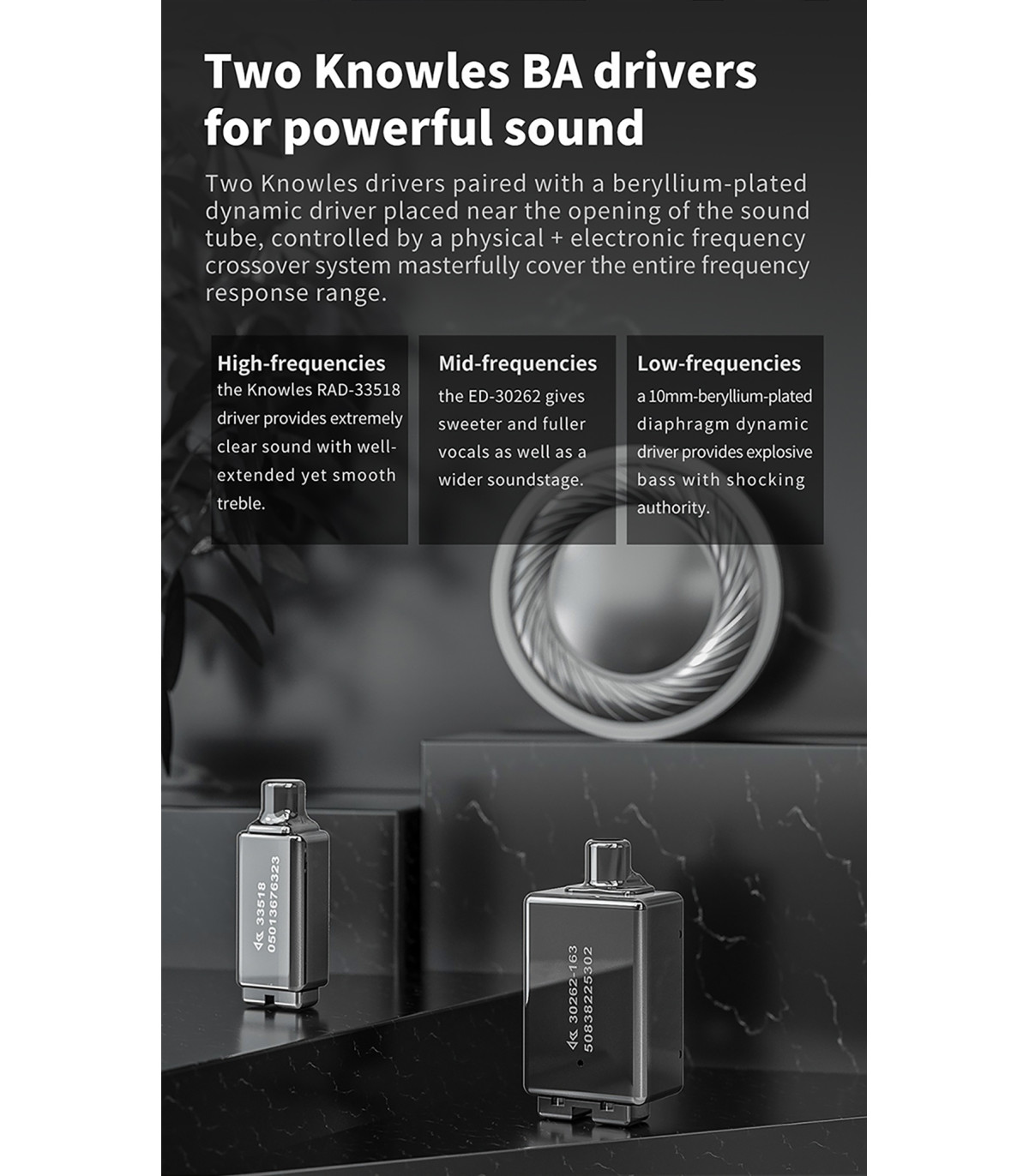

Two Knowles BA drivers, for powerful sound
Two Knowles drivers paired with a beryllium-plated dynamic driver placed near the opening of the sound tube, controlled by a physical + electronic frequency crossover system masterfully cover the entire frequency response range.
High-frequencies: the Knowles RAD-33518driver provides extremely clear sound with well-extended yet smooth treble.

Mid-frequencies: the ED-30262 gives sweeter and fuller vocals as well as a wider soundstage.
Low-frequencies: a 10mm-beryllium-plated diaphragm dynamic driver provides explosive bass with shocking authority.

Getting closer, allowing clearer listening

Acoustically, placing the driver responsible for treble closer to the ear reduces unwanted treble reflections that reach one’s ears compared to a typical earphone design, ensuring minimal loss of treble detail and thus making for more pleasant listening.
*Laboratory tests show that if the treble-producing driver is placed closer to the opening of the sound tube, 8 15 kHz frequencies are 3-4dB louder than if placed further back, for clearer overall treble.

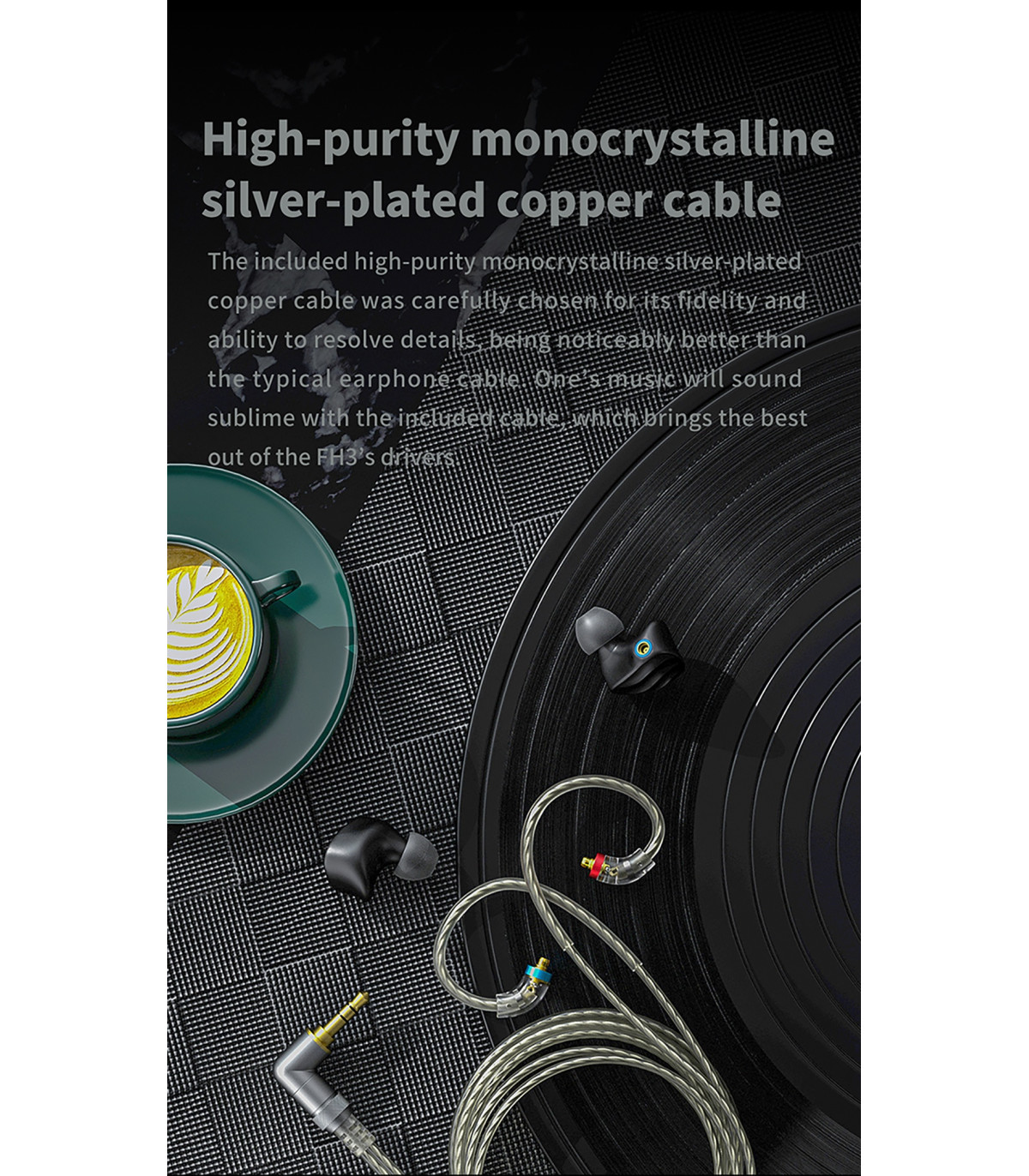

High-purity monocrystalline silver-plated copper cable

The included high-purity monocrystalline silver-plated copper cable was carefully chosen for its fidelity and ability to resolve details, being noticeably better than the typical earphone cable. One’s music will sound sublime with the included cable, which brings the best out of the FH3's drivers.

4 strands of 96 wires, gold-plated plugs, 3.5mm jack, MMCX connectors.

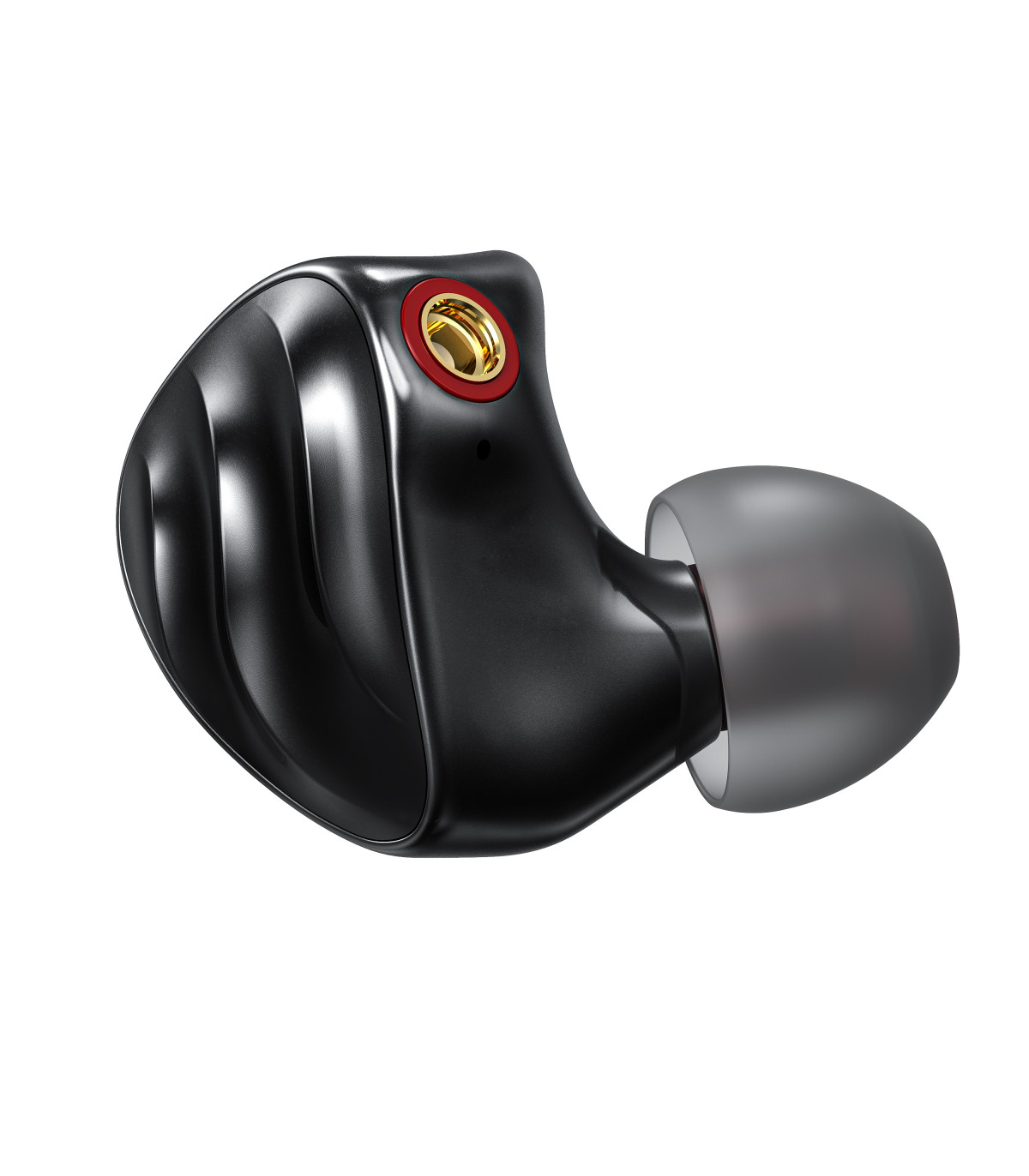

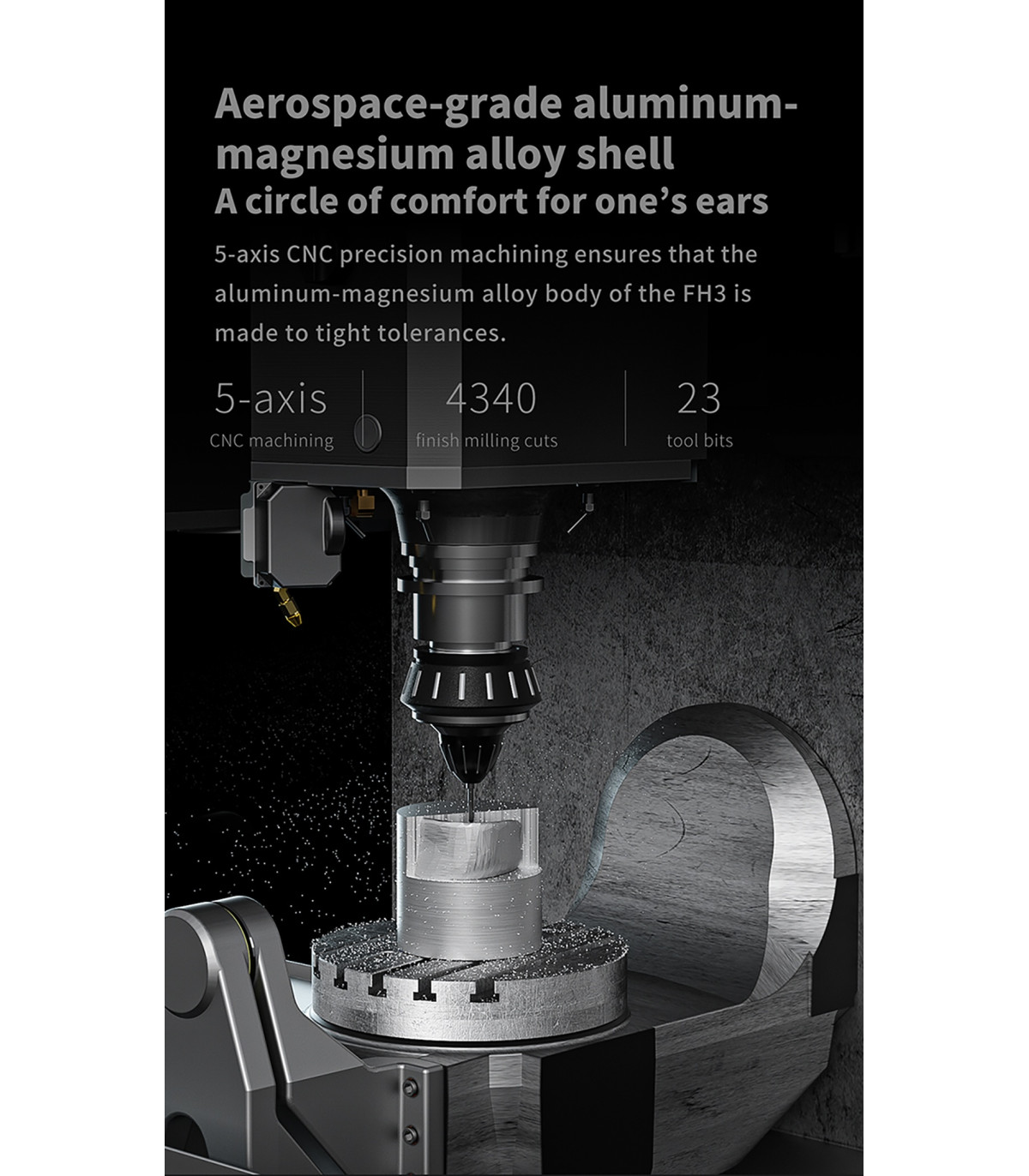

Aerospace- grade aluminum-magnesium alloy shell, a circle of comfort for one’s ears

5-axis CNC precision machining ensures that thealuminum-magnesium alloy body of the FH3 is made to tight tolerances.

5-axis CNC machining, 23 tool buts, 4340 finish milling cuts.

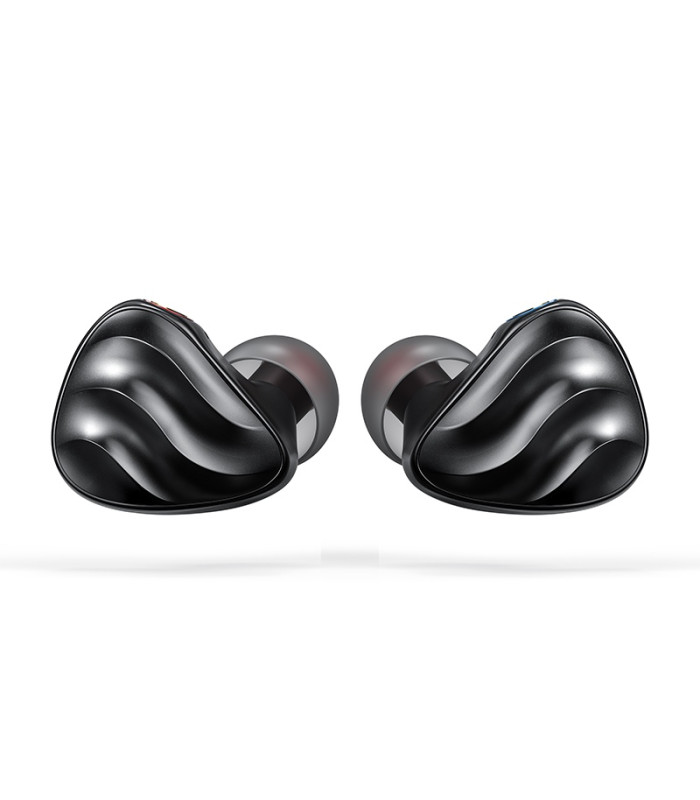

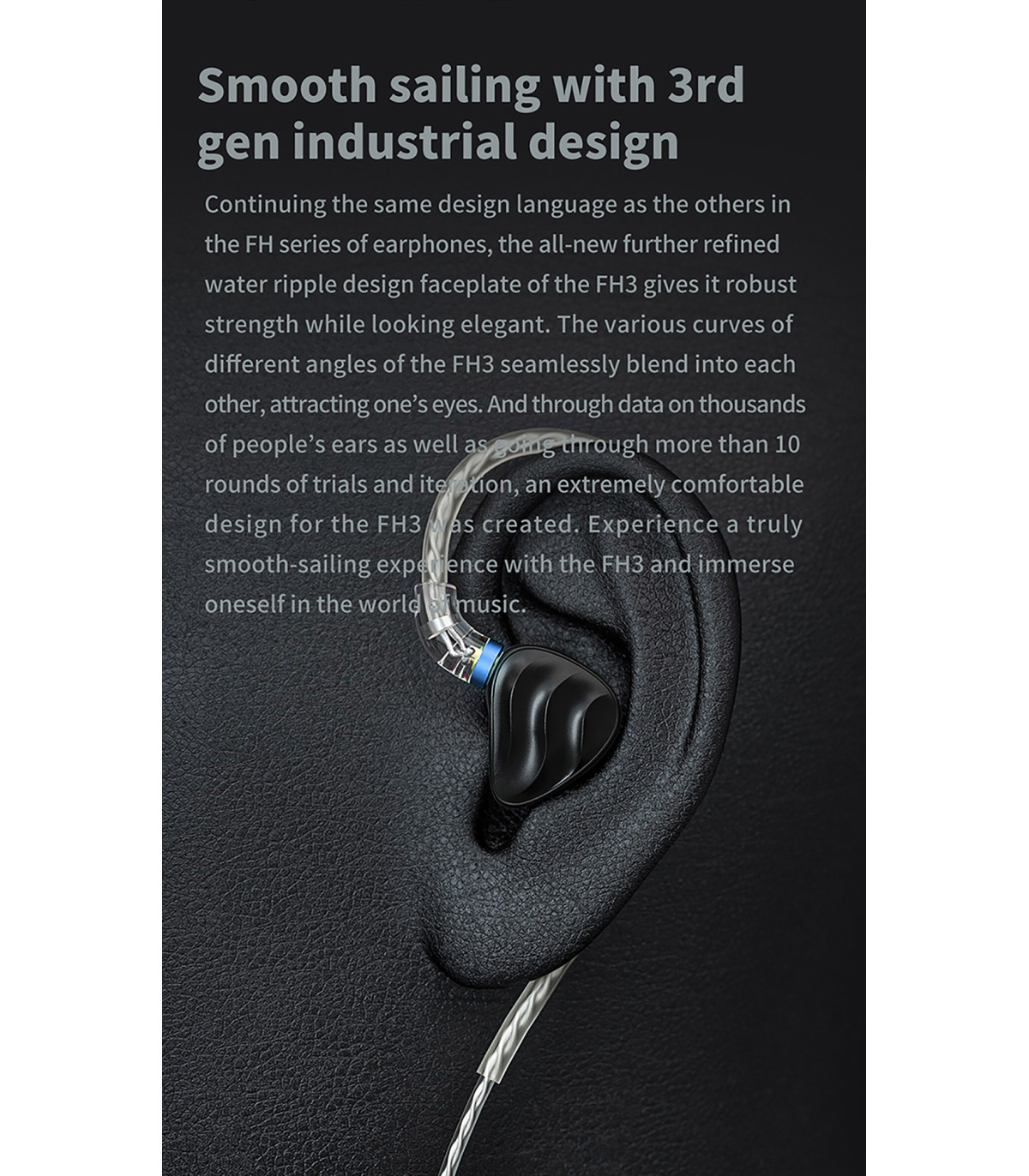

Smooth sailing with 3rdgen industrial design

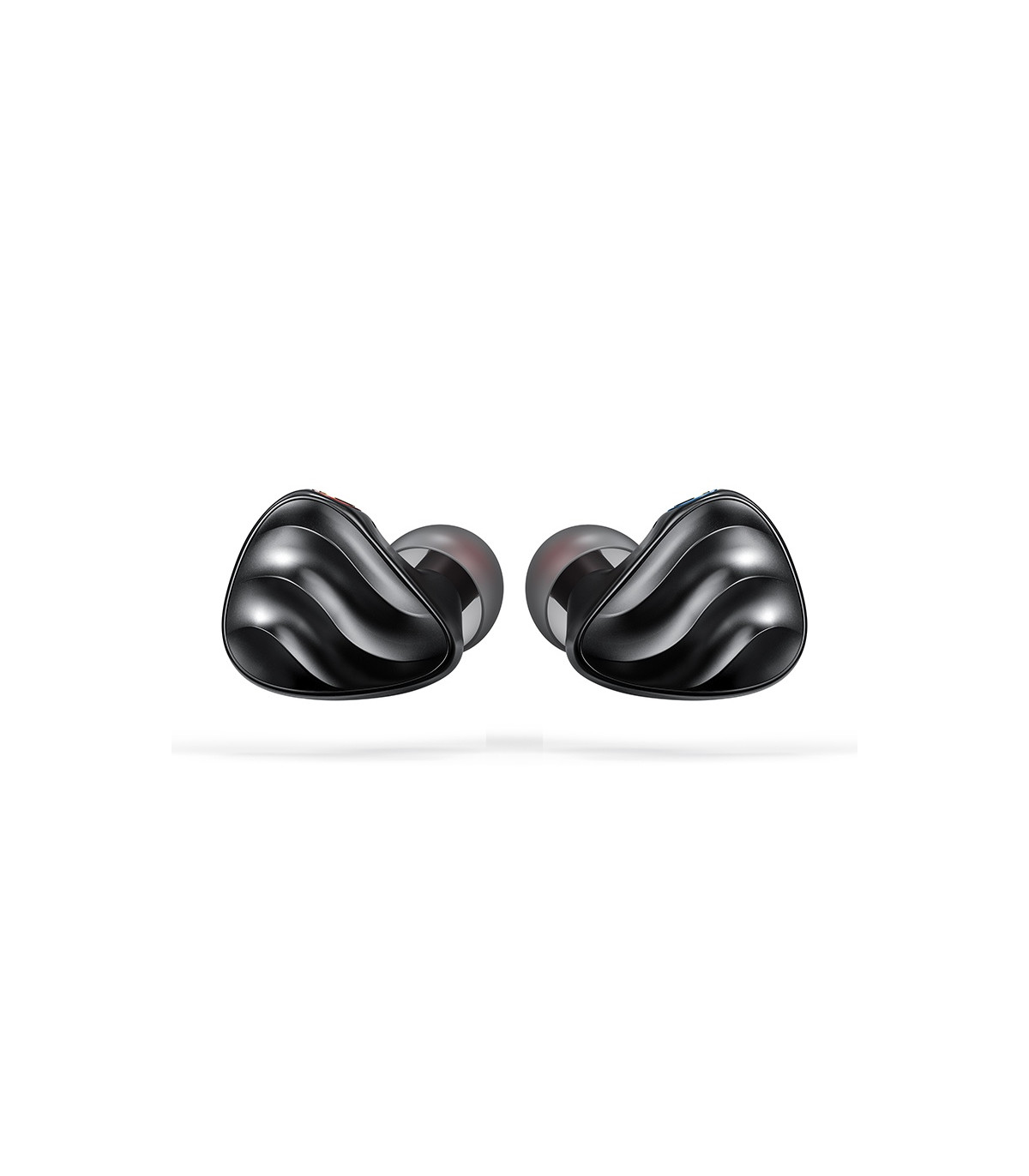

Continuing the same design language as the others in the FH series of earphones, the all-new further refined water ripple design faceplate of the FH3 gives it robust strength while looking elegant. The various curves of different angles of the FH3 seamlessly blend into each other, attracting one’s eyes. And through data on thousands of people’s ears as well as going through more than 10 rounds of trials and iteration, an extremely comfortable design for the FH3 was created. Experience a truly smooth-sailing experience with the FH3 and immerse oneself in the world of music.

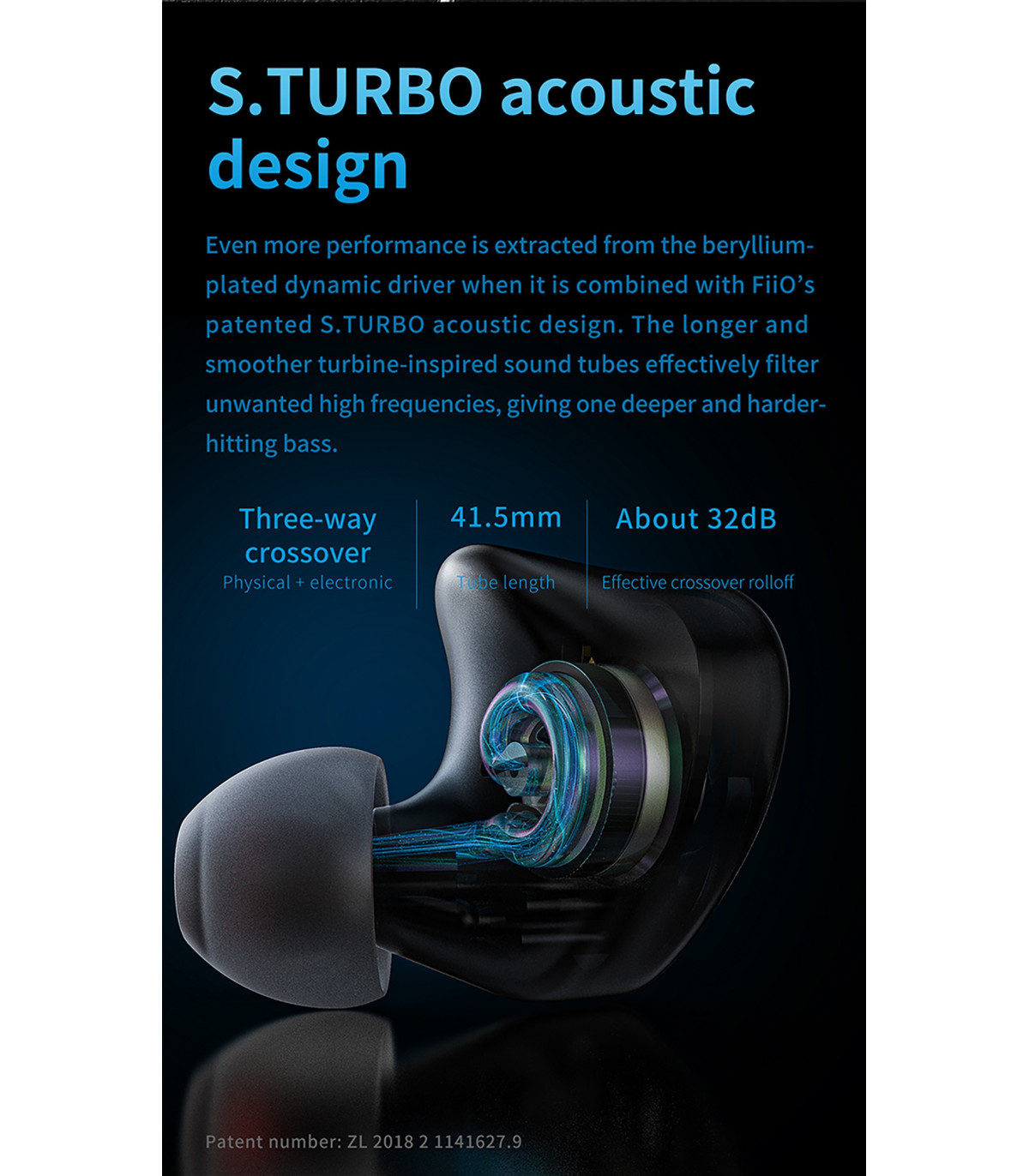

S.TURBO acoustic
Even more performance is extracted from the beryllium-plated dynamic driver when it is combined with FiiO’s patented S.TURBO acoustic design. The longer and smoother turbine inspired sound tubes effectively filter unwanted high frequencies, giving one deeper and harder-hitting bass.

Patent number: ZL 2018 2 1141627.9

Physical + electronic three-way crossover

Tube length: 41.5mm

Effective crossover rolloff: about 32dB

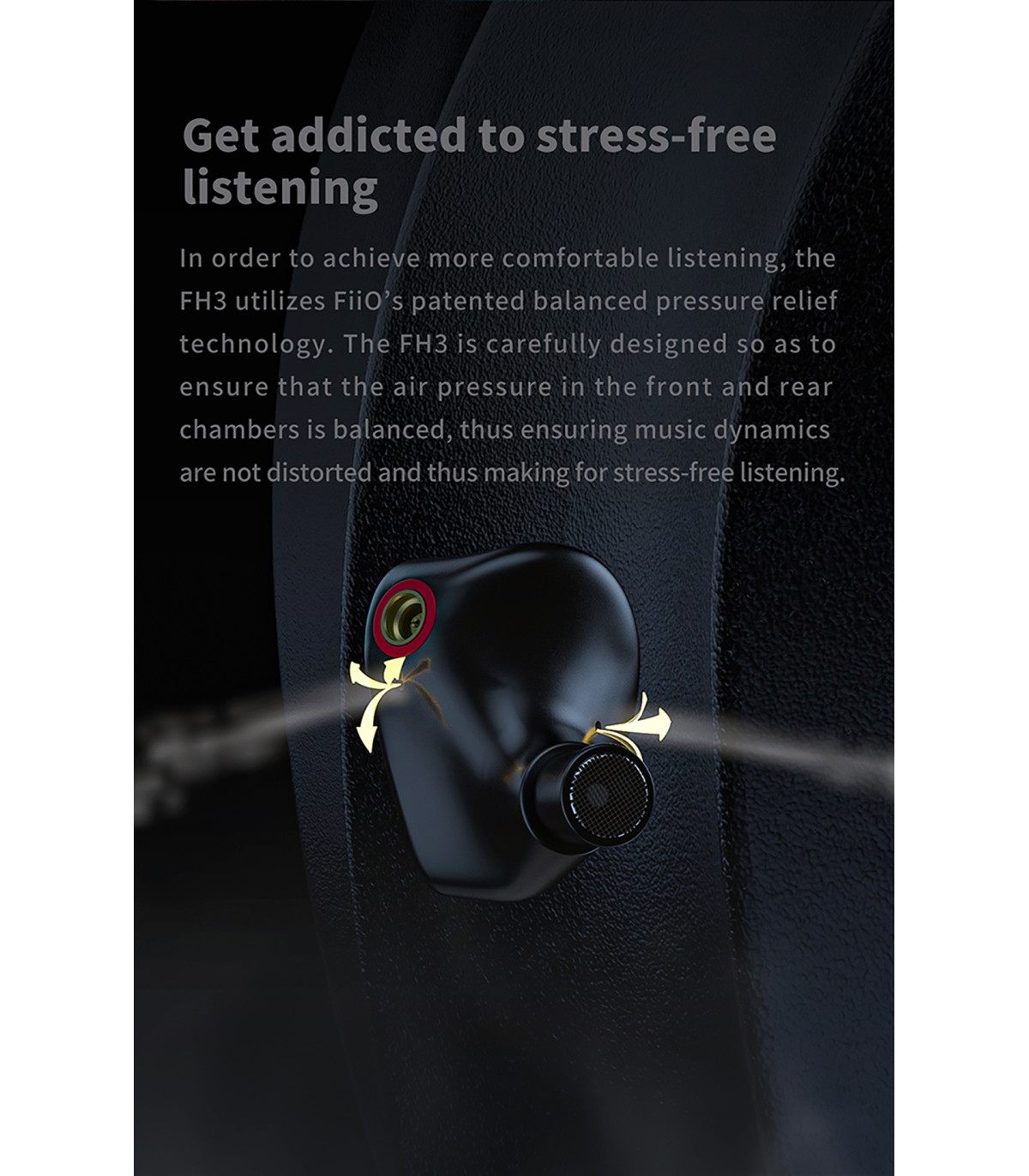

Get addicted to stress-free
In order to achieve more comfortable listening, theFH3 utilizes FiiO’s patented balanced pressure relief technology. The FH3 is carefully designed so as to ensure that the air pressure in the front and rear chambers is balanced, thus ensuring music dynamics are not distorted and thus making for stress-free listening.

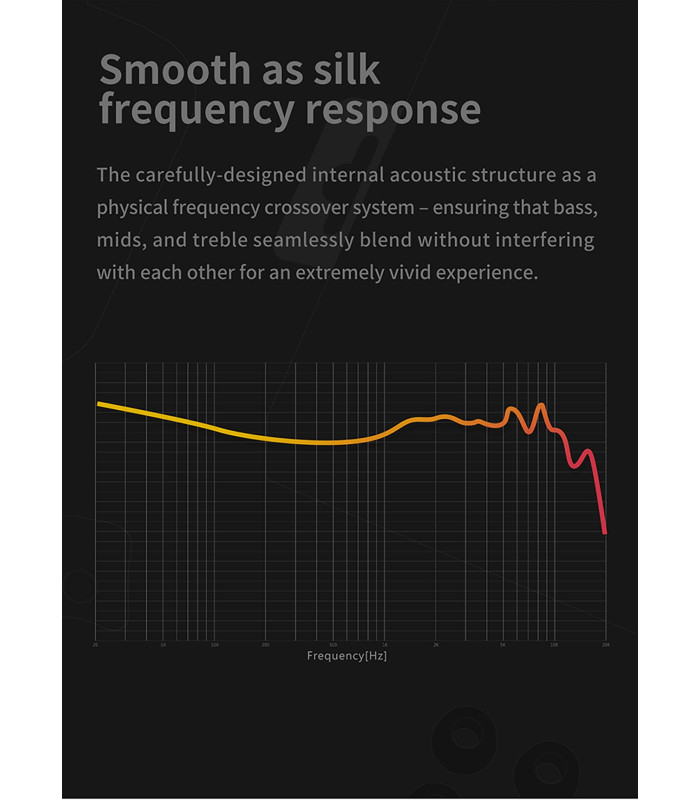

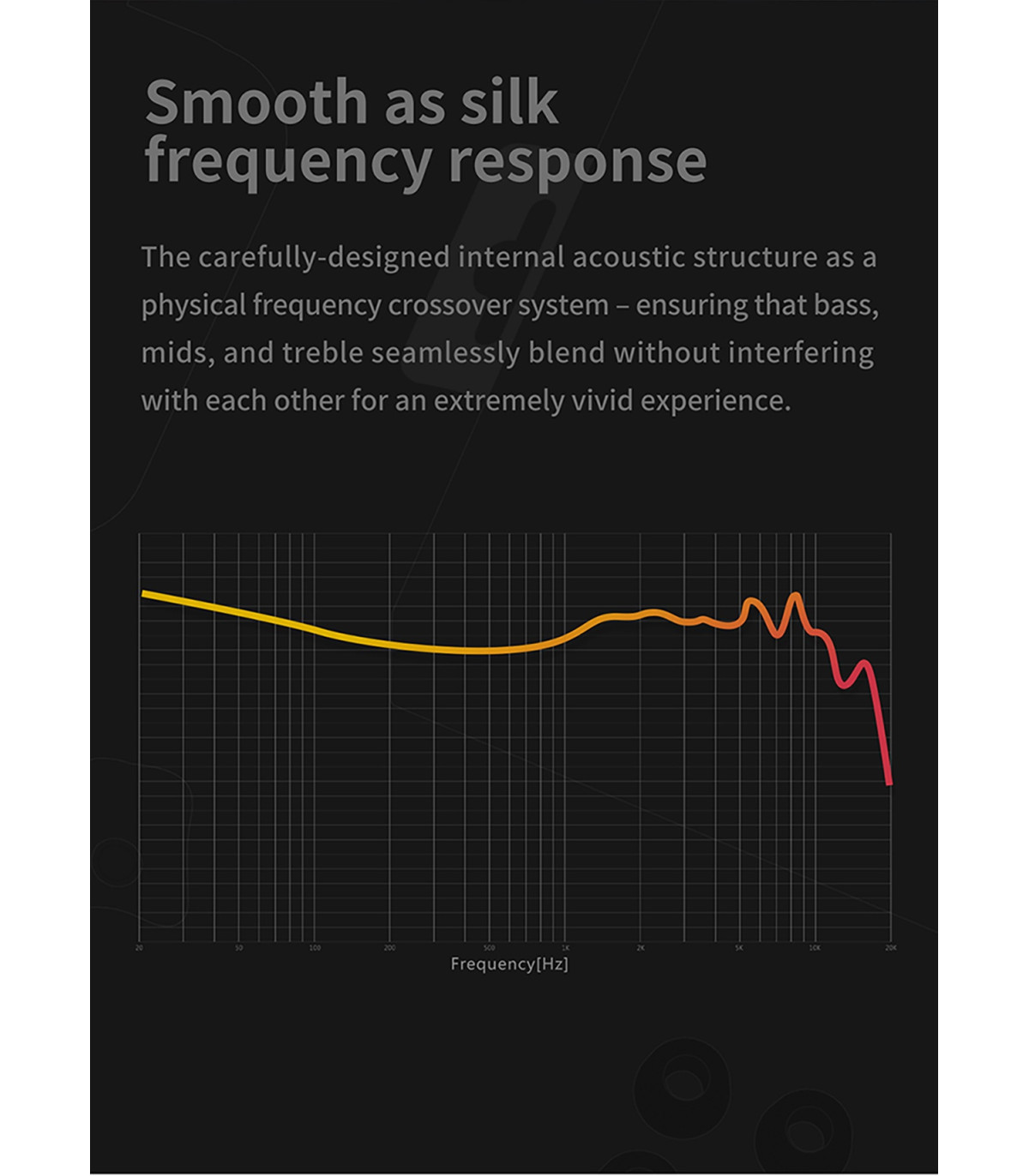

Smooth as silk, frequency response
The carefully-designed internal acoustic structure as a physical frequency crossover system- ensuring that bass, mids, and treble seamlessly blend without interfering with each other for an extremely vivid experience

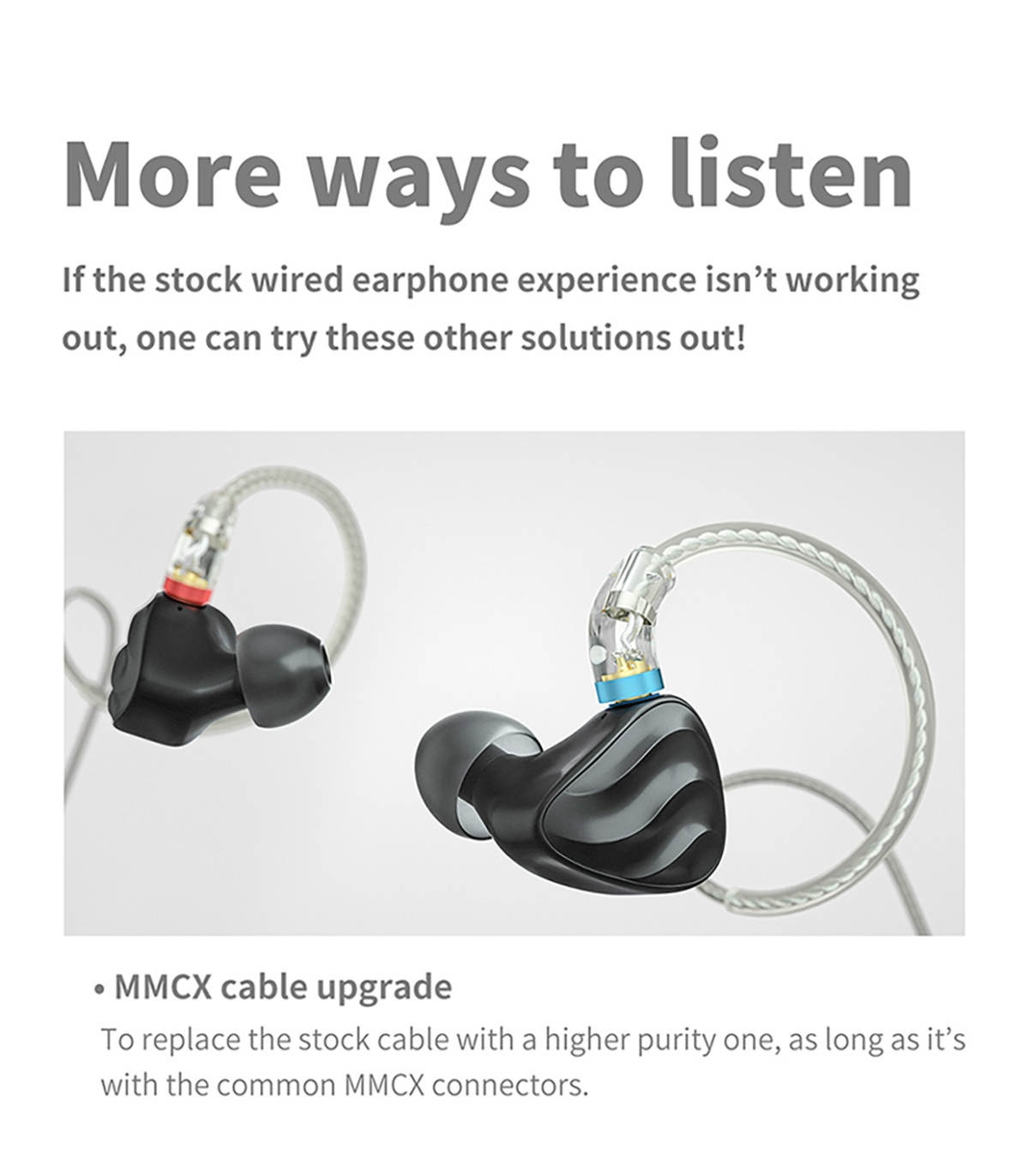

More ways to listen
If the stock wired earphone experience isn’t working out, one can try these other solutions out!
MMCX cable upgrade
To replace the stock cable with a higher purity one, as long as it’s with the common MMCX connectors.

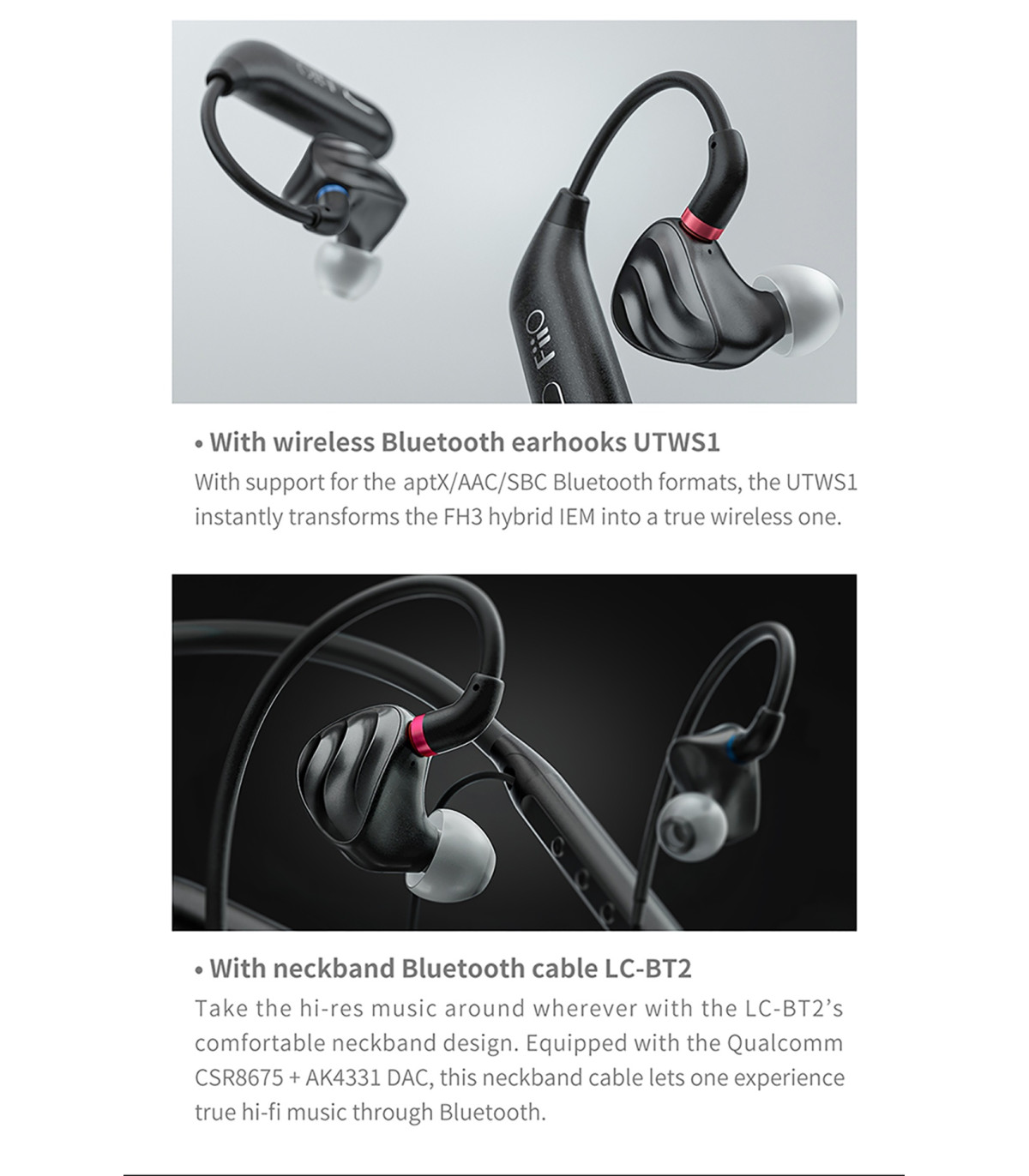

With wireless Bluetooth earhooks UTWS1
With support for the aptX/AAC/SBC Bluetooth formats, the UTWS1 instantly transforms the FH3 hybrid IEM into a true wireless one.

With neckband Bluetooth cable LC-BT2
Take the Hi-Res music around wherever with the LC-BT2’s comfortable neckband design. Equipped with the Qualcomm CSR8675 + AK4331 DAC, this neckband cable lets one experience true Hi-Fi music through Bluetooth.

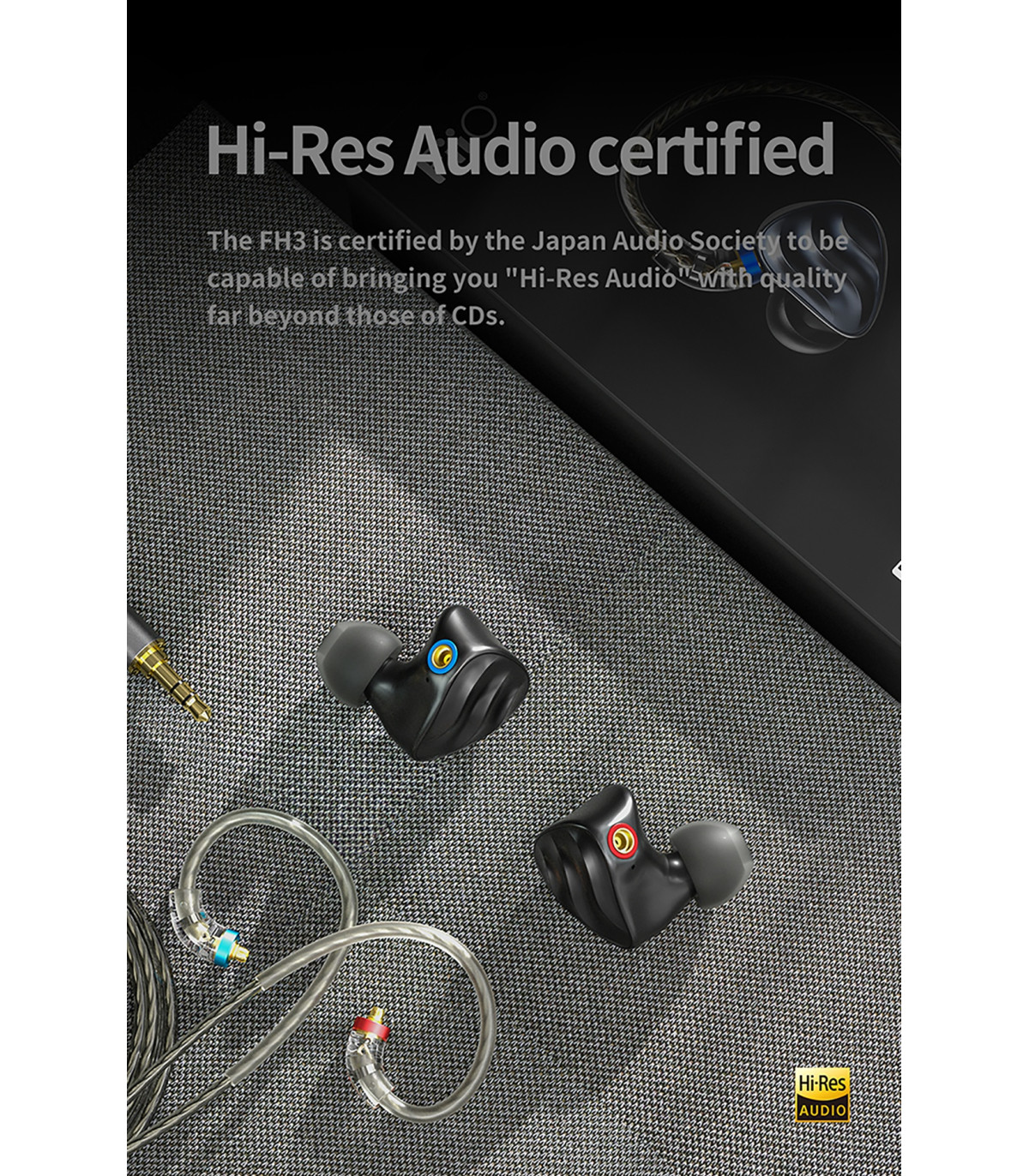

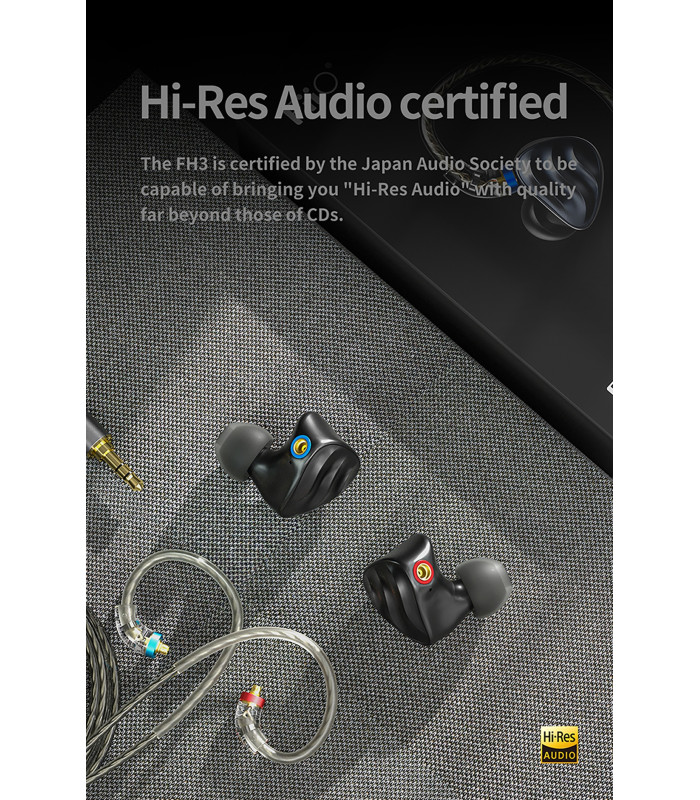

Hi-Res Audio certified
The FH3 is certified by the Japan Audio Society to be capable of bringing you "Hi-Res Audio" with quality far beyond those of CDs.

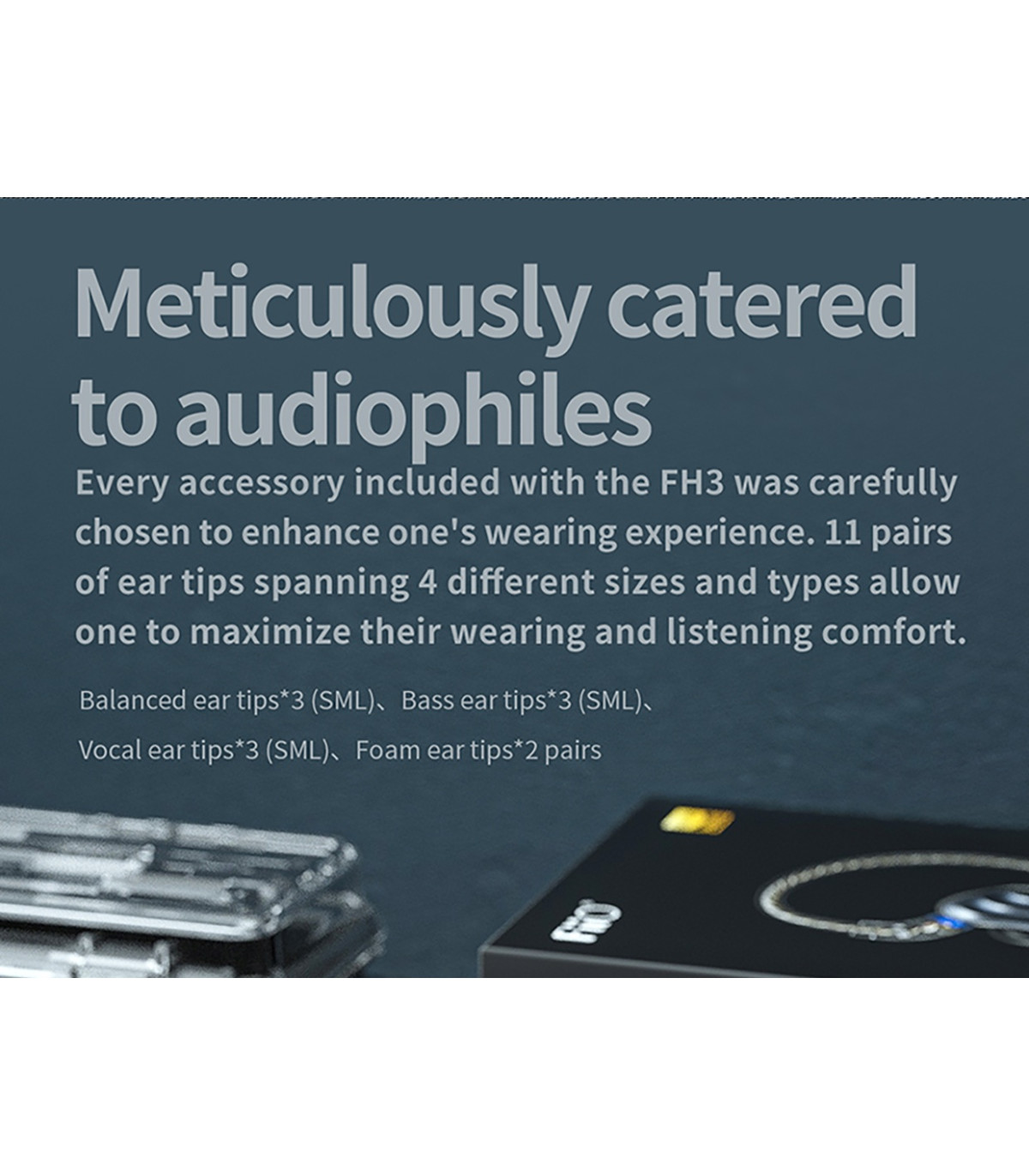

Hi-Res Audio certified, meticulously catered to audiophiles

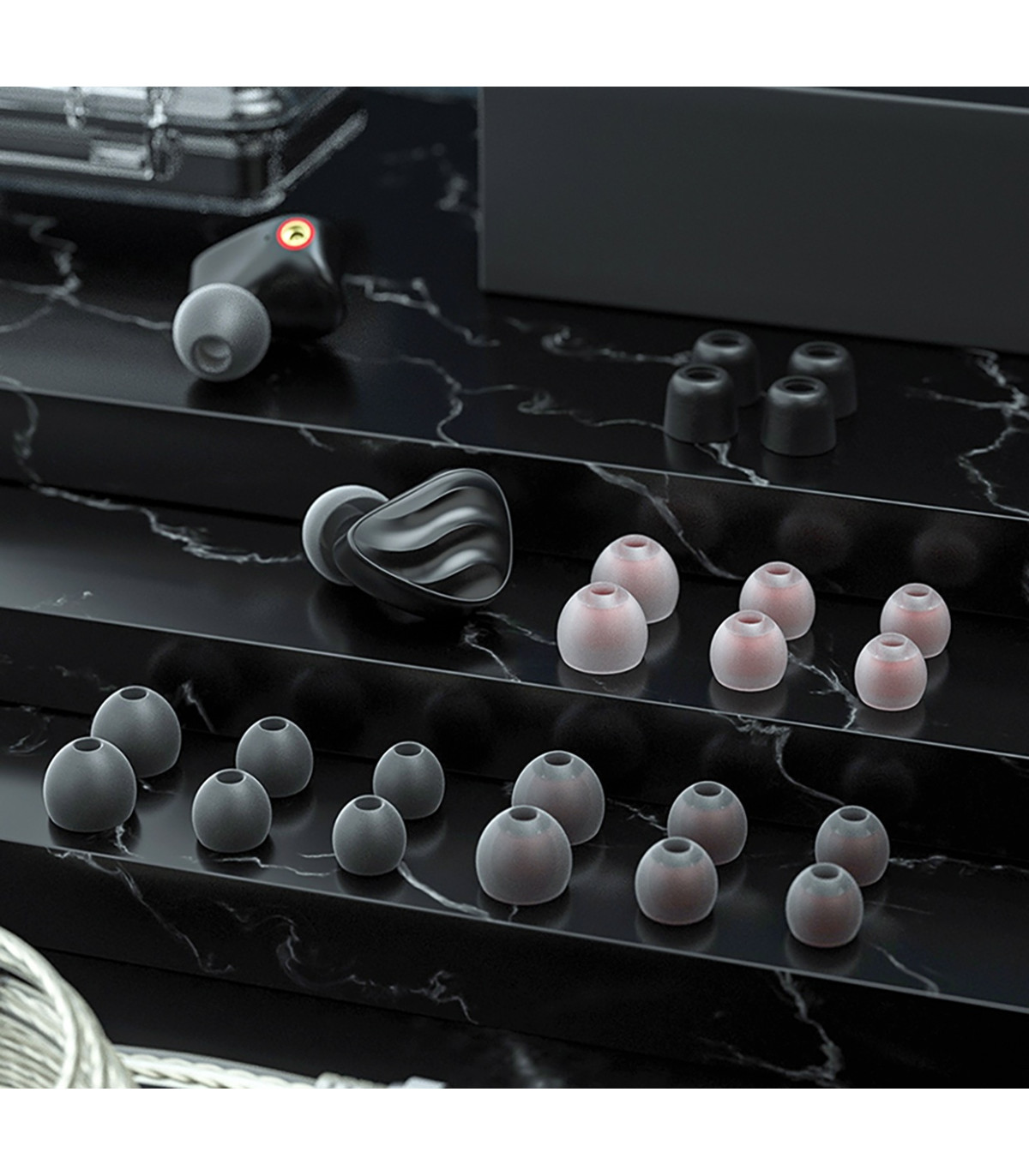

Every accessory included with the FH3 was carefully chosen to enhance one’s wearing experience. 11 pairs of ear tips spanning 4 different sizes and types allow one to maximize their wearing and listening comfort.

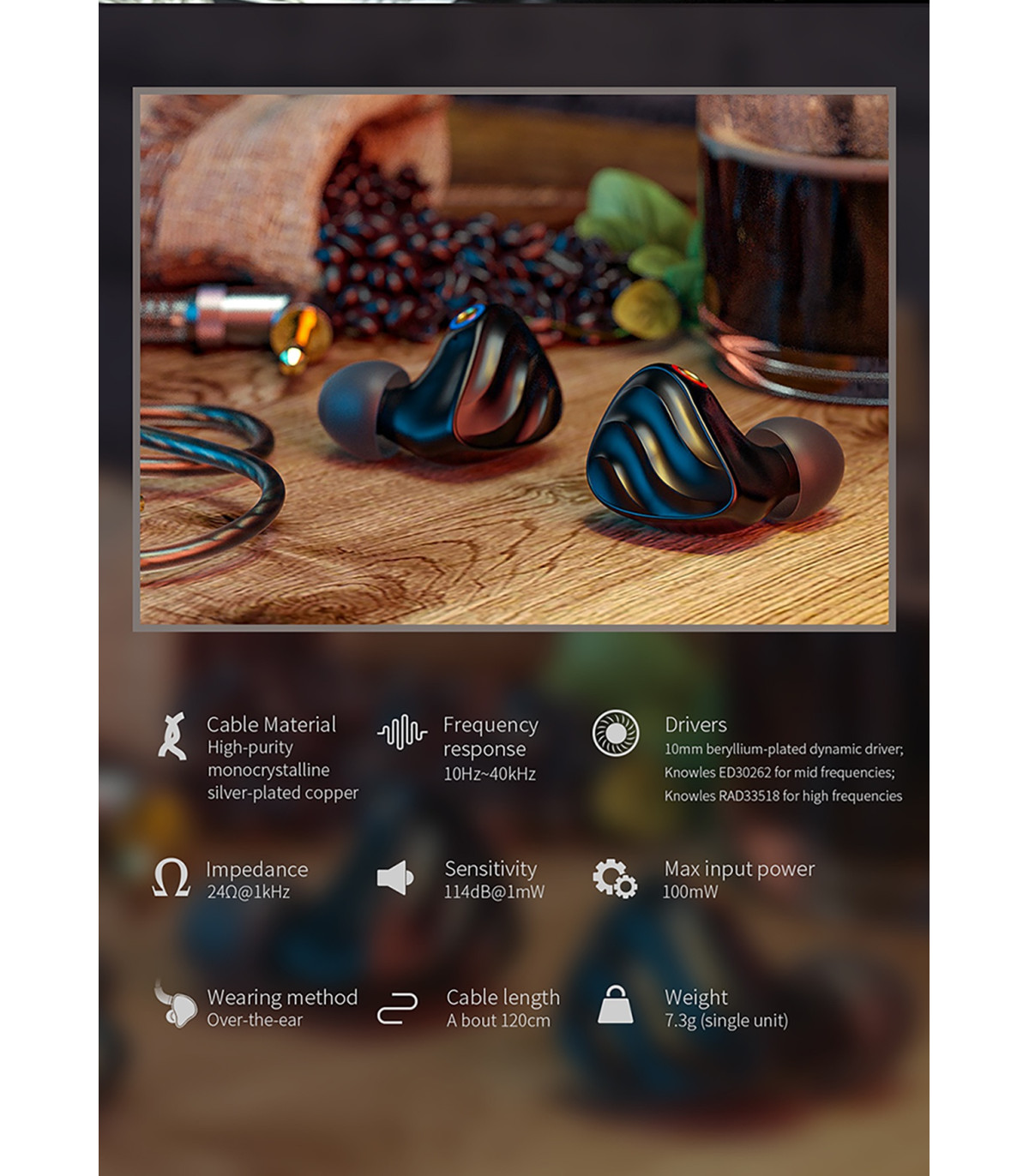

Specification

Model: FH3

Drivers: 10mm beryllium-plated dynamic driver, Knowles ED30262 for mid frequency, Knowles RAD33518 for high frequency

Frequency response: 10Hz-40kHz

Impedance: 24ohm @1kHz

Sensitivity: 114dB@1mW

Max input power: 100mW

Cable material: high-purity monocrystalline silver-plated copper

Cable length: 1.2m

Weight: 7.3g (single unit)

Wear method: over-the-ear

Package

FIIO FH3

Balanced ear tips* 3 (SML)

Bass ear tips* 3 (SML)
Vocal ear tips* 3 (SML).

Foam ear tips* 2 pairs
