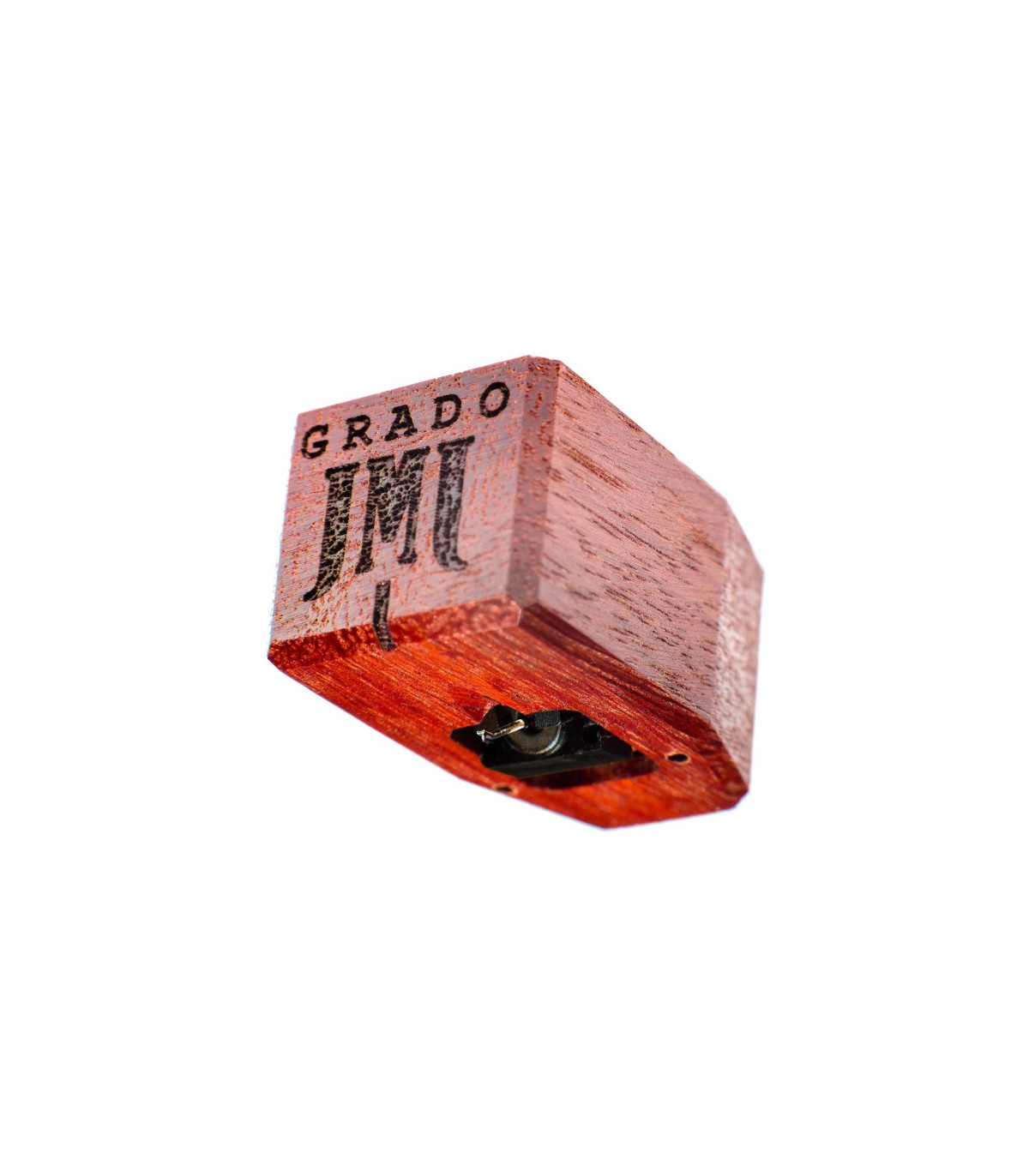

Grado Timbre Sonata 3 Phono Cartridge

The Sonata3 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Sonata3 model uses Grado's specially designed nude elliptical diamond.

Specs:

• Body: Australian Jarrah Wood
• Cantilever: Aluminum / Elliptical Diamond
• Output:
  High 4.0mV @5 CMV (45)
  Low 1.0mV @5 CMV (45)
• Inductance:
  High Output 55mH
  l
• Low Output 6mH
• Resistance:
  High Output 660 ohms
  Low Output 70 ohms
• Input Load: 10k-47k ohms
• Cartridge Weight: 9 grams
• Tracking Force: 1.6-1.9 grams
• Compliance: 20μm/mN
• Channel Seperation: Average 30db - 10-30k Hz
• Controlled Frequency Response: 10-60 KHz
• Non-Sensative to Capacitative Load
• Builds: High Output, Low Output, Mono
