FiiO DM13 Portable CD Player

Be the first to write your review

Product Code:

Condition: New product

Add to wishlist

Description
Designer
Comments (0)
Questions (0)

Description

FiiO DM13 Portable CD player with Hi-Fi output

Specially designed audio architecture
Flagship DAC CS43198*2
660 mW+660 mW output power
Customised LCD display
3.5 mm+4, 4 mm headphone outputs
Optical/coaxial digital outputs
Dual desktop-portable power supply modes
USB CD ripping
aptX HD Hi-Res Bluetooth transmitter (Bluetooth version only)

Specially designed audio architecture

The FiiO DM13's specially designed audio architecture pairs two flagship Cirrus Logic CS43198 chips with two SGM8262 low-noise hi-fi headphone amplifiers. The combination of two DACs and two amplifiers enables the portable CD player to produce truly high-quality sound.

High-quality ‘core’ for smoother volume control

Flagship DAC 2x CS43198 Unlike most portable CD players, the FiiO DM13 uses two flagship CS43198 DAC chips, which offer high performance and low power consumption for excellent audio quality. FIIO engineers have also specially designed an output stage that better captures the sound of the DAC, with the same DAC chip controlling the volume. The DAC chip allows for 99-step fine volume adjustment, which not only allows for smooth volume changes, but also makes the sound clearer at any volume.

Tiny body - Enormous performance

The FiiO DM13 may be compact, but it offers impressive performance that sets it apart from other similar products. Not only can it drive most headphones, but it can also be connected to powered speakers or other headphone amplifiers for an exceptional listening experience.

Portable CD player

FIIO designers have combined manufacturing artistry and structural design to shrink the FiiO DM13 to a size smaller than most other CD players, with dimensions of approximately 144 x 137 x 27 mm (excluding feet). The DM13 also features an ESP (electronic skip protection) switch, ensuring a stable and enjoyable listening experience whether you're on the move or standing still.

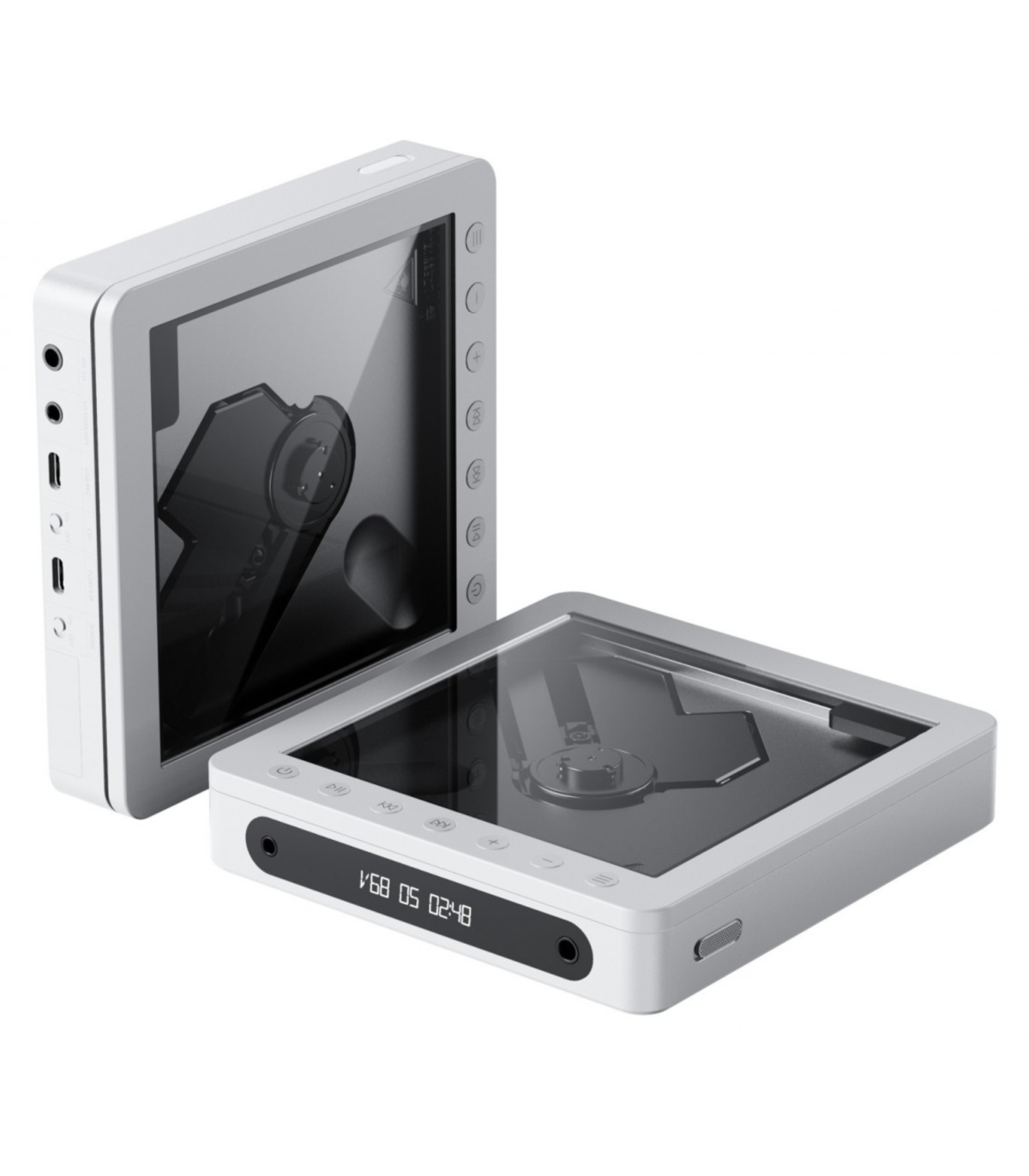

Stable CD reading

By lightly pressing the lever, the lid opens effortlessly so that you can insert your disc. This gives your music a physical presence that cannot be found with digital-only playback. The spacious disc tray significantly reduces the likelihood of scratches during high-speed rotation and provides maximum protection for your favourite discs. *Due to technical limitations, the above measures reduce the likelihood of discs being scratched, but cannot completely eliminate it.

Customised LCD display

The high-contrast, durable LCD display clearly shows the volume, track number and playback duration of the song and makes the status of the device easy to understand. Even with prolonged screen use, it won't burn in, giving you one less thing to worry about.

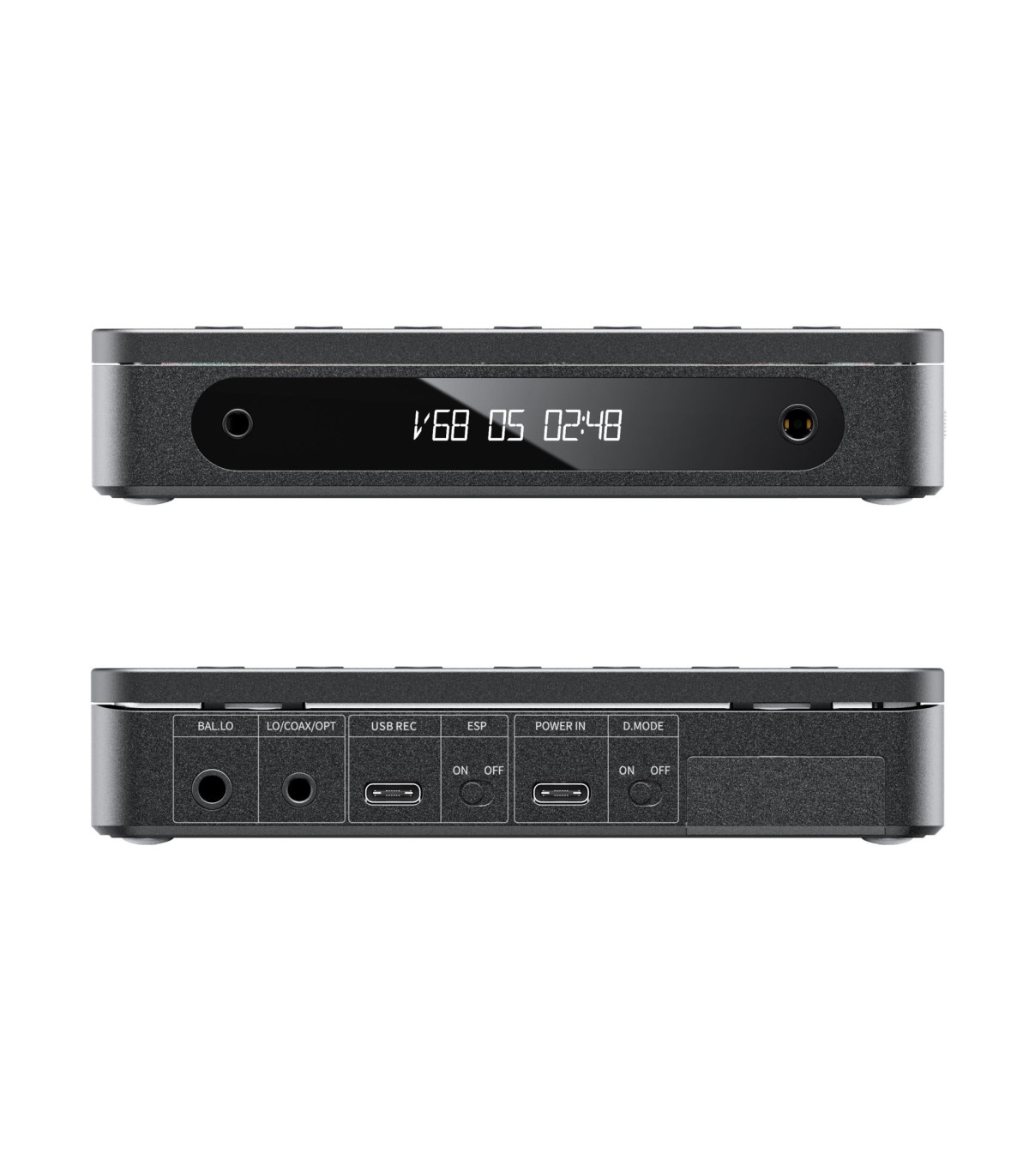

3.5 mm + 4.4 mm dual headphone outputs

3.5 mm and 4.4 mm outputs: for connecting headphones Single-ended and balanced line outputs: for connecting to powered speakers or amplifiers

Optical/coaxial digital outputs

Special low-jitter crystal oscillators ensure accurate synchronisation of the digital clock, resulting in cleaner and more stable digital signal transmission. Optical and coaxial digital outputs: for connection to an external DAC

USB CD ripping

You can rip your favourite CDs to WAV files stored on a portable storage device and easily share them with friends and family. The WAV music files on this portable storage device can then be easily transferred to other computers or phones, so you can play the music on your CDs anytime, anywhere. * Supports FAT32 formatted storage devices only.

aptX High-Res Bluetooth (Bluetooth version only)

Unlike traditional Bluetooth portable CD players, the DM13 BT features a Qualcomm Bluetooth platform that provides high-resolution Bluetooth audio with support for aptX, aptX Low Latency, aptX HD codecs as well as the standard SBC codec. This high-quality wireless transmission improves the Bluetooth sound quality of portable CDs.

Patented Desktop Mode

FIIO's highly acclaimed Desktop Mode is now available for the DM13. When connected to a USB power source, simply slide the D.MODE switch to ‘ON’ and the DM13 will be powered directly via USB without consuming battery power, extending battery life. *When the remaining battery capacity reaches 0% and the device is forcibly switched off, the battery will start charging regardless of the current mode.

Long battery life

The DM13 is powered by a specially selected 3750 mAh, 3.8 V cobalt-lithium battery. You can take the DM13 anywhere and listen to music for 10 hours* - more than enough for even the longest listening sessions. *Data from FIIO Labs. Actual results may vary due to usage conditions that differ from test conditions.

Gapless Playback

In the early stages of developing this product, FiiO gathered extensive feedback from users and overcame many challenges to carefully develop a range of user-friendly and thoughtful features - including gapless playback, the ability to save favourites, and loop playback. The loop playback function supports loops on a single track, random tracks and even the entire CD - so you can customise playback to your liking.

High quality materials

The aluminium alloy casing perfectly combines texture and feel while ensuring the structural strength of the device. Precision-machined aluminium alloy components are used for the critical hinge, offering greater wear resistance and durability. *Rigorous testing in FIIO laboratories has shown that the hinge can be reliably closed and opened > 5000 times.

Technical Specifications

Frequency Response: 20Hz - 40kHz
Impedance: 32 Ohms
Sensitivity: 110 dB/mW
Dimensions: 144 x 137 x 27 mm, Weight: 300g
Features dual CS43198 DACs and SGM8262 headphone amps for high-quality sound
Ideal for audiophiles who prefer wired connectionsconstruction
Perfect for use with portable audio devices
High comfort level for long wear.

Designer

FiiO logo

About FiiO Electronics Technology Co., Ltd.

01 Brand Introduction - HiFi+Fashion

FiiO Electronics Technology Co., Ltd. was established in 2007. It is a high-tech enterprise that combines research, development, production and sales, and its sales are mainly based on its own FiiO brand as opposed to OEM/ODM. It focuses on digital audio, with current mainstay products being portable headphone amplifiers, DAC / amps and portable digital audio players.

FiiO: It is composed of Fi (Fidelity) from HiFi and iO (represents number 1 and 0) which indicates the sincerer feeling and more convenient life the digital tech has brought to us.

飞傲: The Chinese transliteration of FiiO, as well as representing youthful vigor and the active & innovative spirit of the company.

Audio products are meant to fulfill the spiritual pleasure of users.

FiiO provides products and service related to music.
We also hope to bring happiness to our users with the provided products and service, which is also the key value of FiiO.

Customer Service

Good after-sales service, more reliable
Great user experience, more pleasure
Variety of activities, more involved

About products

Affordable: FiiO products are well-known for its feature of high cost-performance. Lowering the entry level to make more customers can afford.
Easy to use: FiiO pays great attention to the user experience. We are not only provide products with high quality, but also easy to use and with long lasting durability.
More accessories bring more fun: Enable to play in a variety way and use under more possible environments.
Updates available: Equipped with a variety of ports, it makes the music players can still connect to external amp/DAC for upgraded enjoyment.
Endless transformability available: With replaceable amp module and expandable storage, the X7 can bring more playability.

02 Company Profile

Research & Development Team

Twenty years of R&D experience in audio products
Former core R&D team for audio products from OPPO
A team of 20 professional R&D engineers in software, hardware, industrial design, structure and electro-acoustic.

Research & Development Investment

FiiO keeps bringing in advanced equipments and high-tech talents so as to ensure the stable growth and long term competitive edge. Up till now, the team size has expanded three times than that of 2007 when we established.

Team Composition

The R&D team is made up of development dep, engineering dep and QC dep, with 60+engineers in total.

Authorized certifications

FC, CE, KC, CCC and ISO9001:2008 ensure the safety and quality of the products.

Production management

FiiO has strict requirements to production with almost “zero tolerance” even to small problems, which is strictly in compliance with the International Quality Management System ISO9001.

QC Equipment

a. AP audio analyzer (valued at 200,000RMB).
b. Life-span test platform against high & low temperature, swing and plug & unplug trial.
Aging test carriage towards mass production.
Aging test machine under high & low temperature.

Customer oriented

Driven by customers’ needs, we innovate constantly and response promptly to the market changes. We develop new products based on customers’ needs and compete for more market shares.

Company culture - Our Vision

Present the world a better “Made in China”.

Brand Spirit

Innovation

the earliest company that designed the minimum volume headphone amplifier. First dockable amp & DAC product. First amp specially designed for iPod/iPhone. First amp with adjustable power supply and power supplied by mobile phone battery. First multifunctional headphone amp & DAC for Android smarphone. First Hi-Res music player at a price lower than 1000RMB supporting 192K music. First Android-based Hi-res music player.

Quality

Repair Rate < 1%. Sound Quality Control system. Original components imported from TI, Wolfson, Maxim. Company-wide quality control. +20 quality engineers and inspectors. Complete testing facilities.

Service

CEO at the frontline of customer service. 100% response to enquiries. The most popular headphone amplifier brand on Head-Fi. First class website and contents in the audio industry. Interaction with and support to customers on Facebook and Microblog (twitter-like social website).

Brand Mission

FiiO designs, produces and sells high-quality products at favorable prices to those who love music and style.

Comments(0)

Be the first to write your review!

Questions

Gianfranco Formisano
2024-12-09 08:12
salve sarei interessato all\'acquisto vorrei sapere se collegandolo via usb al rose rs250a posso ascoltare i miei cd e sacd dall\'uscita analog del rose e visualizzare cover funzioni cd dall\'app rose come faccio attualmente con un semplice lettore/masterizzatore cd-dvd esterno
Valerio
2024-11-15 09:00
Buongiorno, è possibile collegarlo ad un alimentatore da cellulare ed utilizzarlo anche come lettore da tavolo, bypassando e preservando la batteria (senza collegarlo ad un PC, ma ad un ampli/DAC come il K5pro ESS)?
- PlayStereo
  2024-11-15 11:48
  Buongiorno, si il DM13 può essere usato tranquillamente come lettore da tavolo purché lo si doti di un cavo da minijack a 2xRCA. Riguardo la batteria può essere lasciata sotto alimentazione.
  - Valerio
    2024-11-15 14:47
    In coax non è possibile (per sfruttare il Dac k5)?
    - PlayStereo
      2024-11-19 14:24
      Sì, confermiamo che è presente anche l\'uscita digitale.
ciro
2024-11-12 17:29
Salve si puo collegare pure una pendrive per ascoltare file mp3?
- PlayStereo
  2024-11-13 11:43
  Buongiorno, non è possibile collegare una pendrive al DM13, per questo scopo occorre uno streamer, come il nuovo FiiO SR11 che può trovare sul nostro shop.
