Description

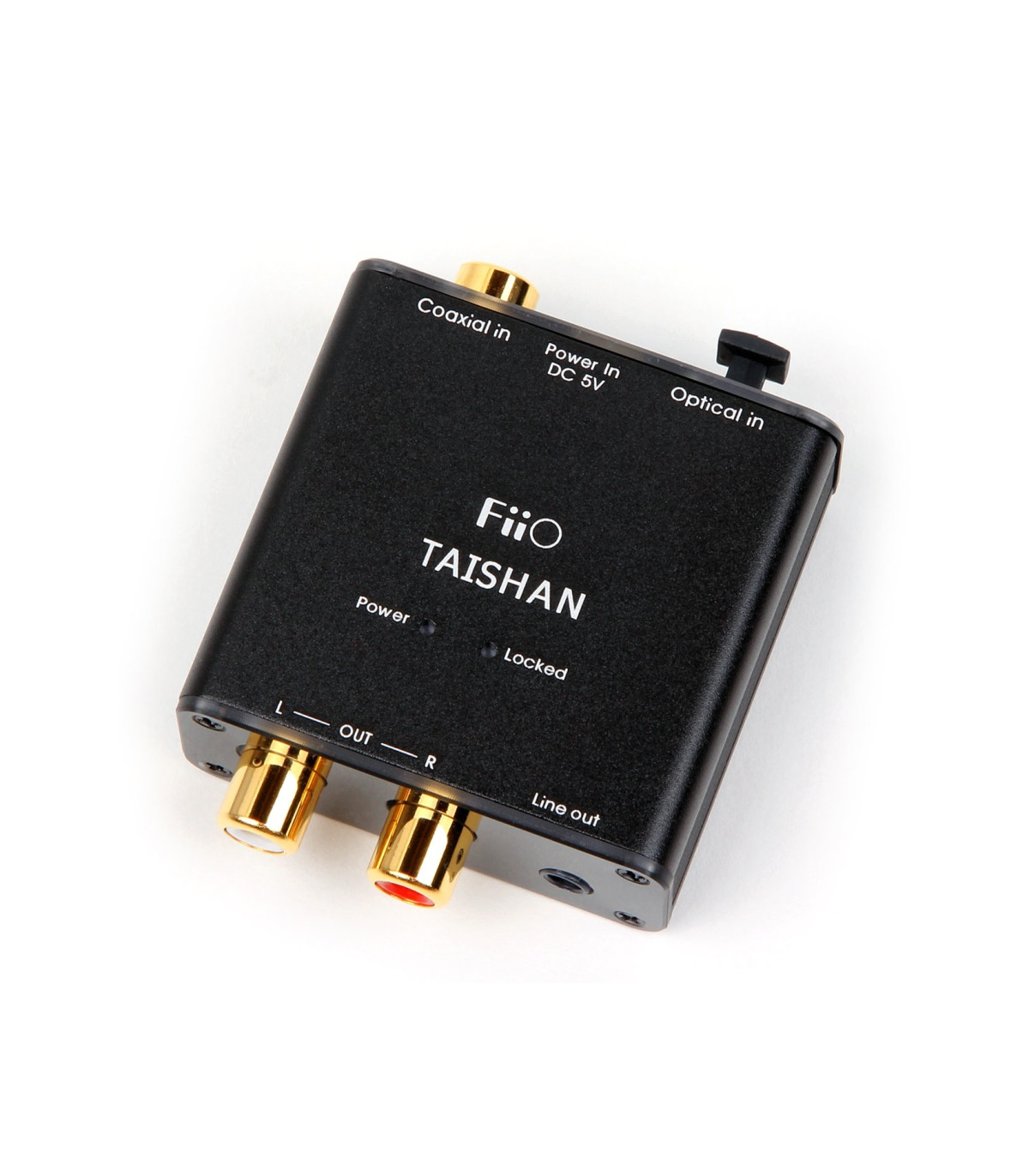

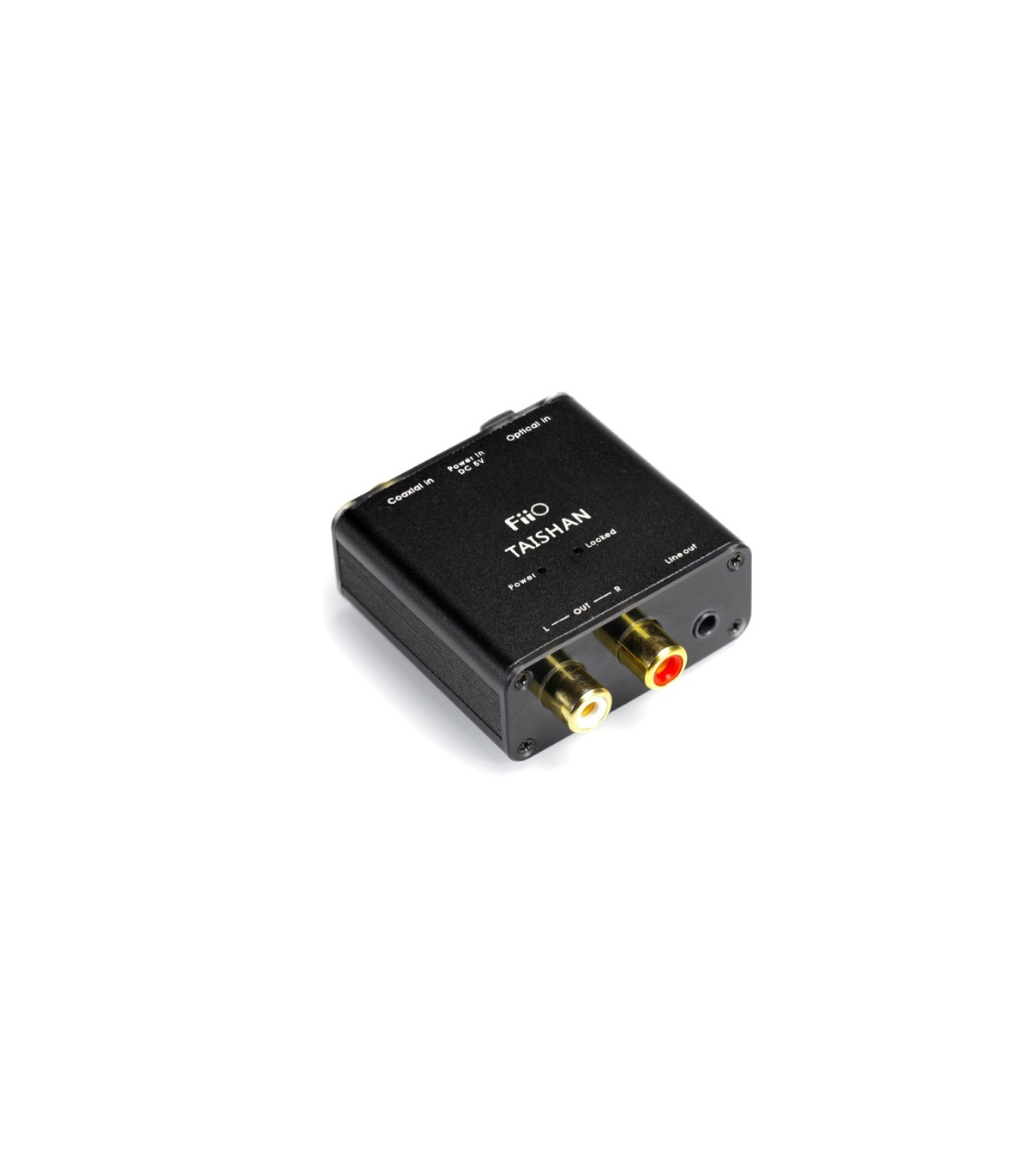

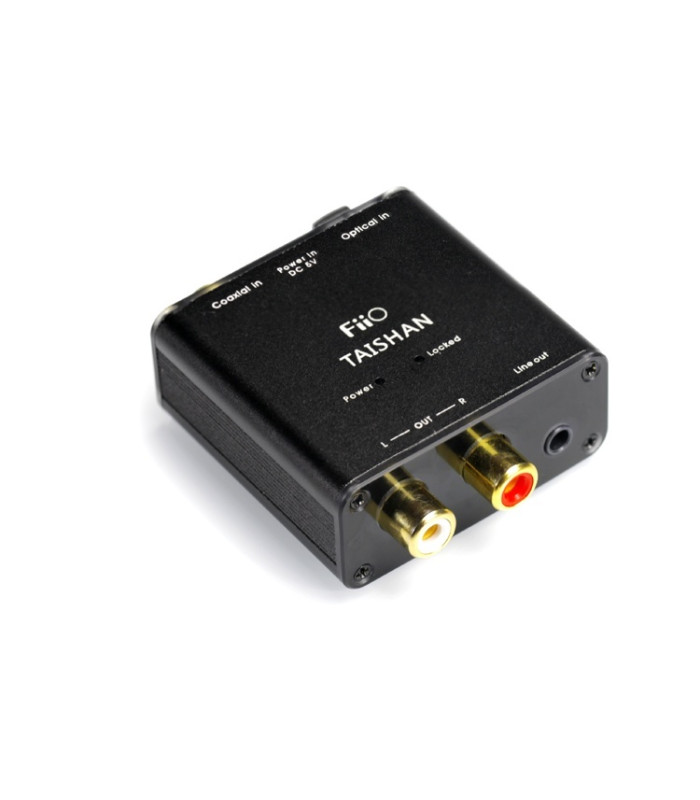

FiiO D03K without power supply

The FiiO D03K is the latest namimg of the famous micro-compact High-Res DAC. New graphic and gold connectors all around.

The FiiO D03K is a quick and easy way to convert digital audio output into high fidelity stereo analog sound. It is ideal for interfacing between modern digital audio/video devices with analog amplifiers or self-powered speakers. Ultraportable. The D03K works with any playback source with an optical (Toslink) or coaxial digital audio output. Here are just a few of the devices supported:

- Digital TVs and HDTVs
- CD, DVD, Blu-Ray, and HD-DVD players
- Optical output of Mac computers (using the Miniplug adapter available separately)
- Apple TV, Google TV (Revue)
- Game consoles: PS3 (All), XBOX 360 (Slim)
- Satellite/Cable receivers and DVRs, TiVO
- AV Receivers and Integrated Amplifiers
- Digital media players and streamers

NOTE: The D03K does not support Dolby, DTS, or other surround sound signals. Therefore, it is important that the digital audio output of your device defaults to or can be set to PCM/LPCM output. Otherwise the sound will be static.

Feature Highlights
● Maximum support 192KHz/24bit audio signal.
● Optical/coaxial optional input function.
● 2 sound channels stereo RCA audio output.
● 3.5mm sound output dock.
● Indication for digital receiving status (LOCKED).
● MINI USB power supply port.
● Support form is PCM, donnot support DOLBY and DTS form.

Specifications
● Maximum support 192KHz/24Bit
● Power supply: DC 5V
● Output amplitude：1.5V（0dB Fs）
● Frequency Response：20Hz~20KHz
● Signal to Noise Ratio: ≥95dB
● Crosstalk: 85dB
● Total harmonic distortion: <0.01%(10mW)
● Size: 61.6mm×49.1mm×21mm
● Weight: 50g

A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee.
These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition.
B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product.
Any special comments about a B-Stock product will be noted at the beginning of the article description.
