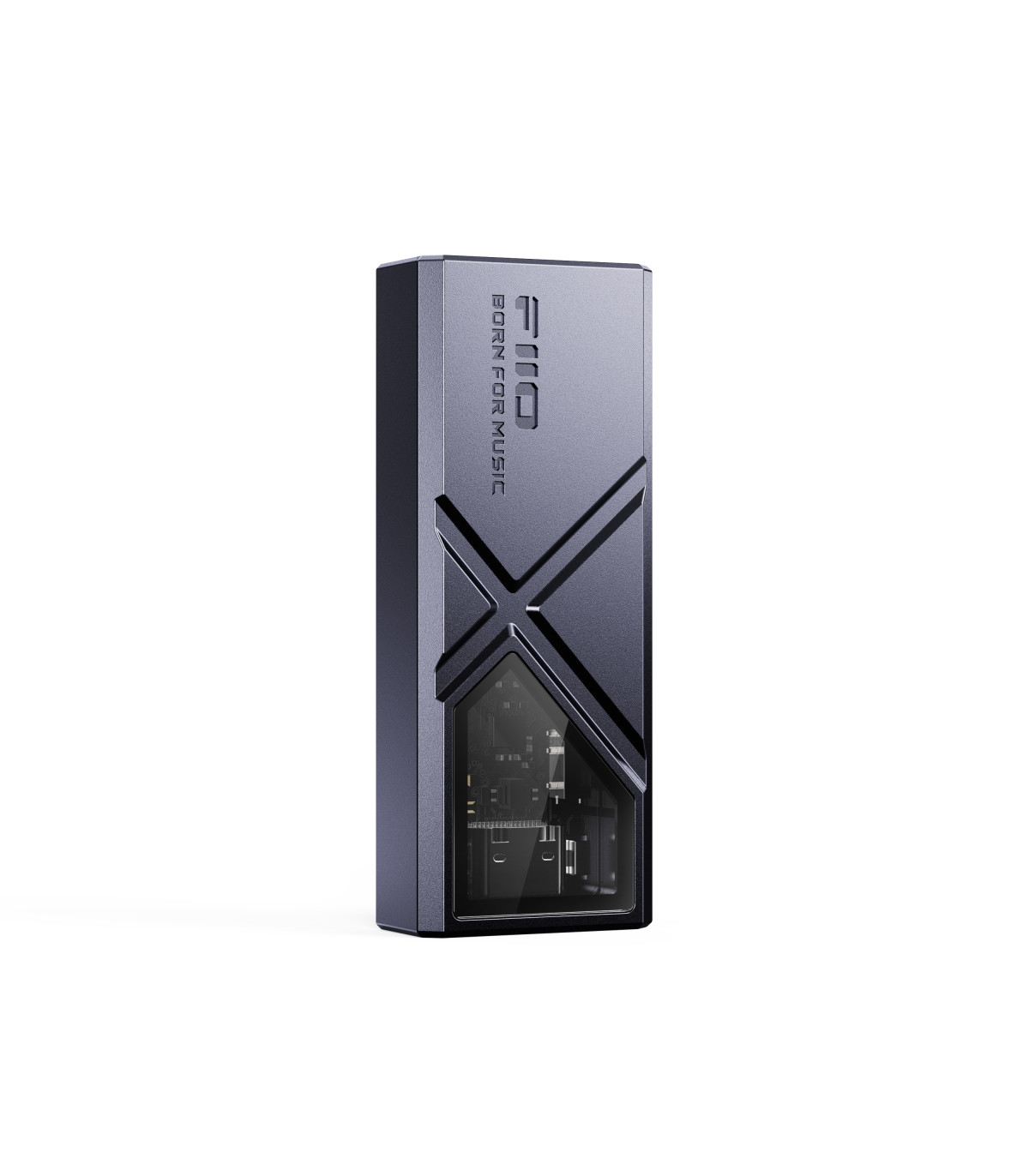

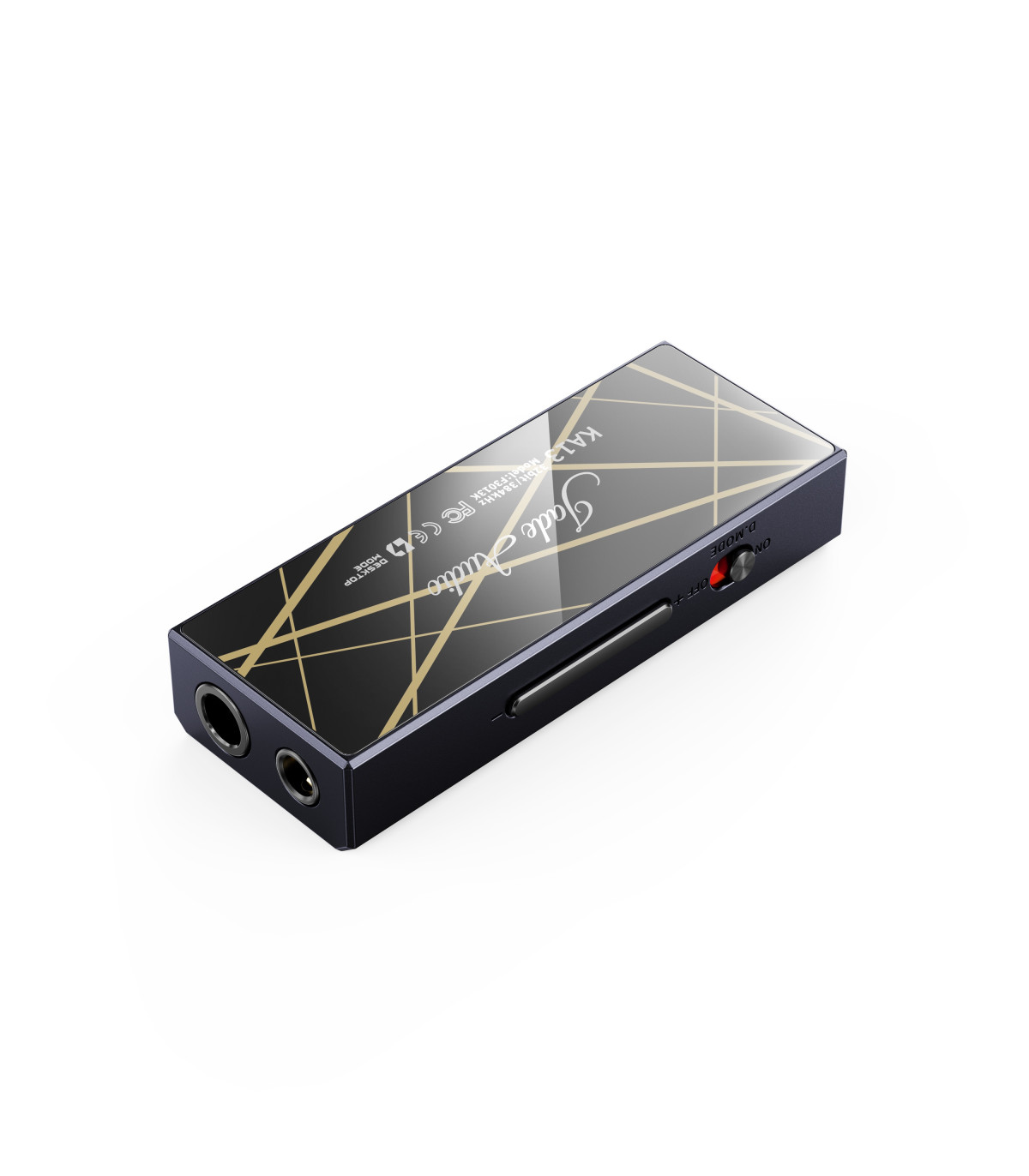

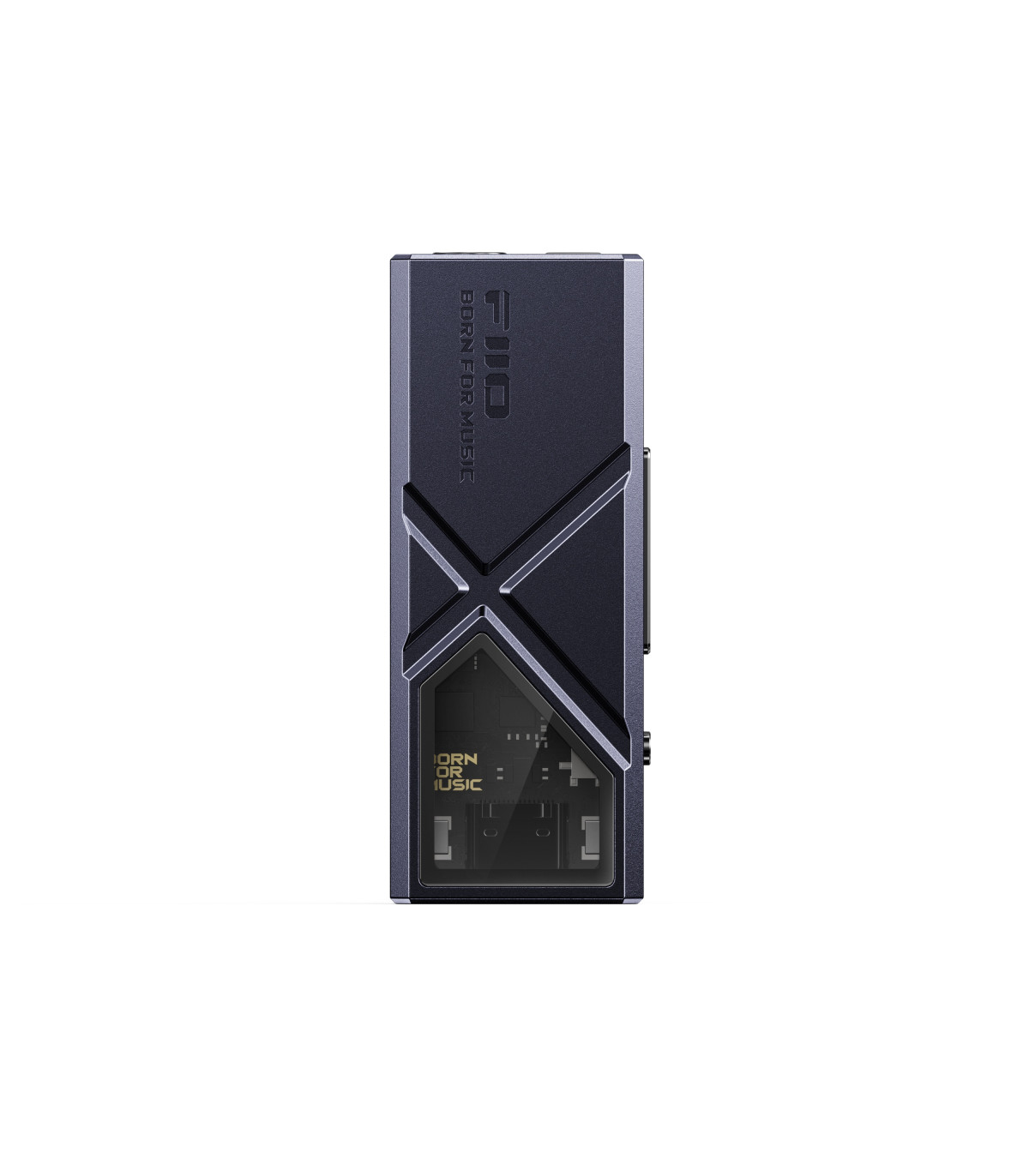

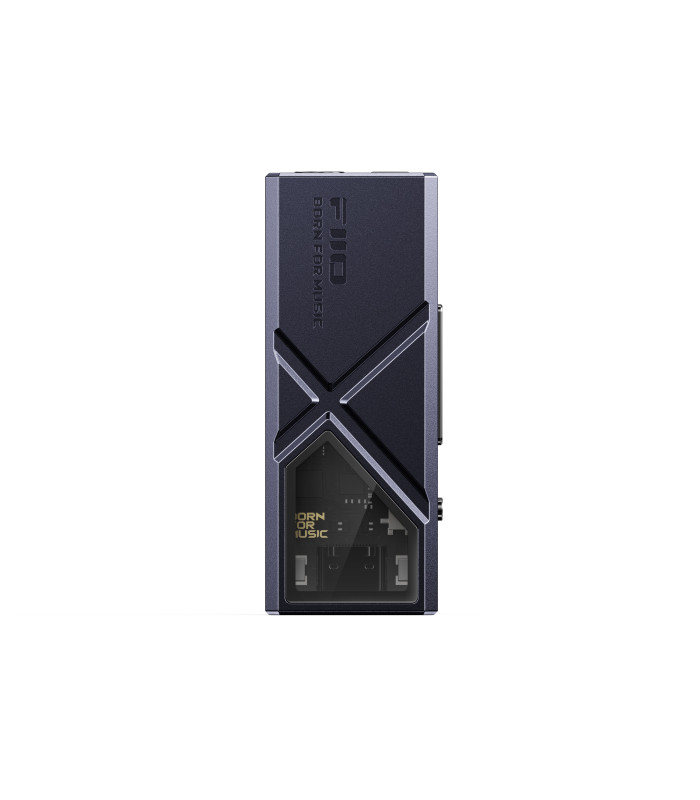

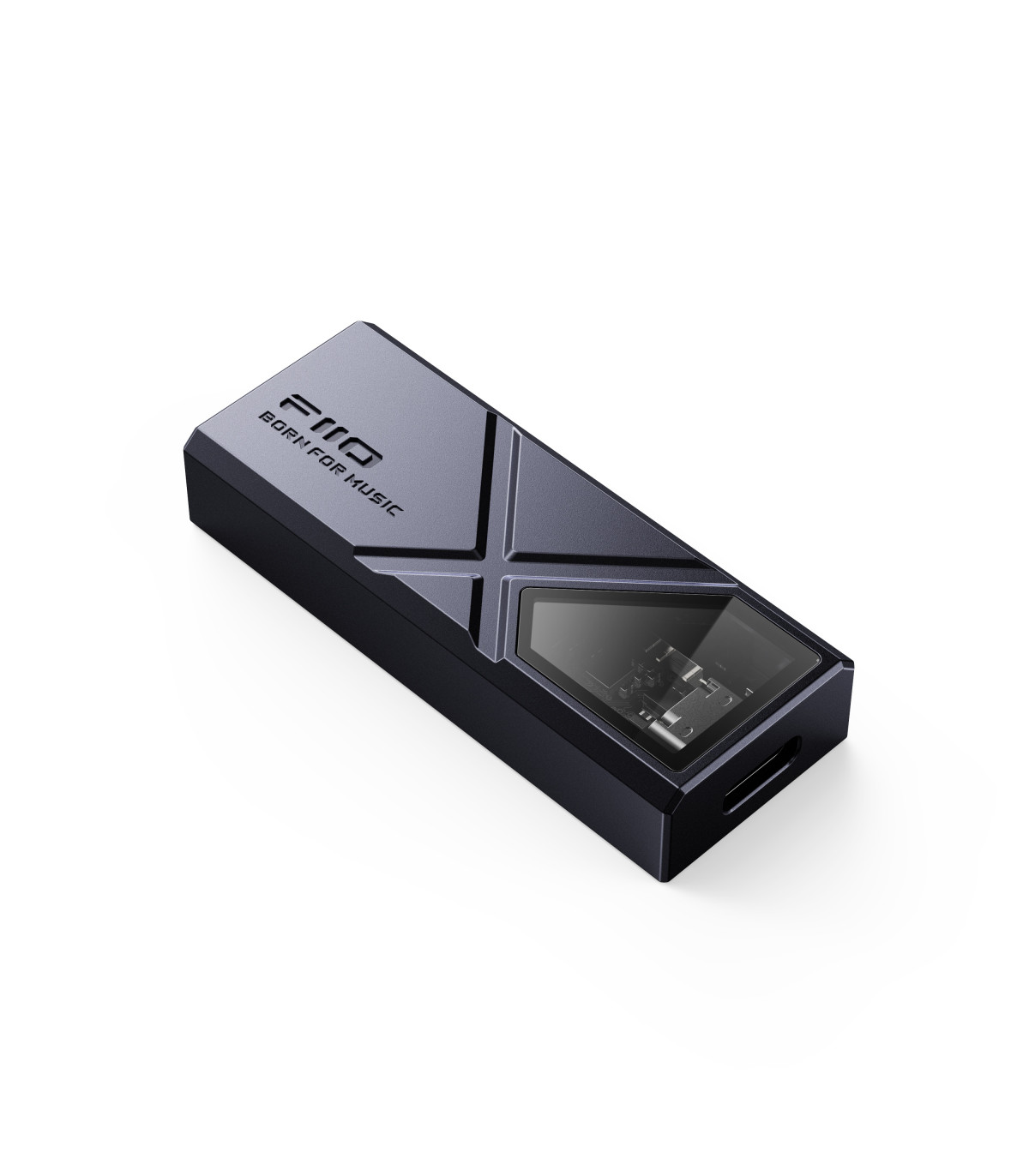

FiiO KA13 Portable DAC Headphone Amplifier

Desktop quality amplification yet portable
High-performance dual CS43131 DAC chips
Powerful dual 8262 OPAmps
Supports PCM 32-bit/384kHz and native DSD256 audio signals
Dual headphone outputs (3.5mm+4.4mm)
Physical volume buttons
Detachable Type-C connection cable
Support for FiiO applications
SPDIF digital output support
Customizable ambient backlit display window

FiiO's KA13 is a brand new portable USB DAC/AMP with enhanced audio circuitry for unrivaled performance. The portable DAC/AMP features desktop-quality amplification that delivers a solid output boost of up to 550mW, easily driving IEms and headphones without breaking a sweat. For decoding, a powerful dual DAC chipset with two CS43131 DAC chips is available, enabling crystal-clear decoding of high-resolution PCM and DSD audio signals. The FiiO x Jade Audio KA13 has an exquisite build with a solid metal chassis and an exclusive ambient-lit viewing window. Enhance your music enjoyment with the FiiO x Jade Audio KA13.

FiiO has equipped the brand new KA13 with a desktop-class mini amplifier. The portable DAC features two 8262 high-power OPAMPs that produce a solid output boost of up to 550 mW, which can easily drive most IEMs and even some power-hungry headphones.

The FiiO x Jade Audio KA13 offers crystal clear Hi-Res sound signal decoding. It is equipped with a premium dual DAC chipset, two CS43131 32-bit DAC chips. It offers full support for decoding high-resolution PCM (up to 32-bit/384kHz) and Native DSD256 audio signals. It supports both unbalanced and balanced headphone connections with 3.5mm and 4.4mm headphone jacks respectively. The 3.5 mm output also offers a coaxial SPDIF output.

The FiiO x Jade Audio KA13 is fully integrated with the FiiO Control application available on smartphones. Users can easily adjust various settings such as audio filters, gain level, ambient lighting, etc.

Specifications
Name/Model	KA13	Hardware solution	DAC: CS43131 *2
Color	Midnight black/Dawn silver	Dimensions	About 56.52210.5mm
Weight	About 19g	Adaptive impedance	PO: 16~150Ω
Sampling rate indication	RGB ambient light	Adaptive impedance	BAL: 16~300Ω
Max supported sampling rate	384K/32bit	Firmware upgrade	System firmware can be upgraded via USB
	DSD64/128/256	FIIO control	Supported
	384K/32bit (coaxial)
Buttons and Ports
USB port	Type-C USB	3.5mm plug	Single-ended/SPDIF output (shared)
Physical button	Adjust volume, switch songs	4.4mm plug	Balanced output
Toggle switch	Desktop mode switch
Audio Parameters
Parts of performance and parameters (3.5mm headphone out，, THD+N<1%, USB IN)
Output power	L+R≥290mW+290mW @16Ω	Peak output voltage	≥2.3V (32Ω, THD+N<1%)
	L+R≥170mW+170mW @32Ω	Peak output voltage	≥2.3V (32Ω, THD+N<1%)
	L+R≥19.5mW+19.5mW @300Ω	Output impedance	<1.7Ω
Frequency response	20Hz~20kHz, damping≤0.1dB	Crosstalk	≥72dB (1kHz, 32Ω)
Frequency response	20Hz~50kHz, damping≤0.2dB	Noise floor	2.5uV&1.7uV"A"
THD+N	<0.0005% (0dB, 32Ω)	SNR	≥122dB (32Ω, A-weighted)
Parts of performance and parameters (4.4mm headphone out)
Output power	L+R≥500mW+500mW (16Ω, THD+N<1%, USB IN)	Peak output voltage	≥4.2V (32Ω, THD+N<1%)
	L+R≥550mW+550mW (32Ω, THD+N<1%, USB IN)	Peak output voltage	≥4.2V (32Ω, THD+N<1%)
	L+R≥78mW+78mW (300Ω, THD+N<1%, USB IN)	Output impedance	<1.8Ω
Frequency response	20Hz~20kHz, damping≤0.1dB	Crosstalk	≥110dB (1kHz, 32Ω)
Frequency response	20Hz~50kHz, damping≤0.1dB	Noise floor	4.6uV&3.1uV"A"
THD+N	<0.0005% (-5dB, 32Ω)	SNR	≥122dB (32Ω, A-weighted)
