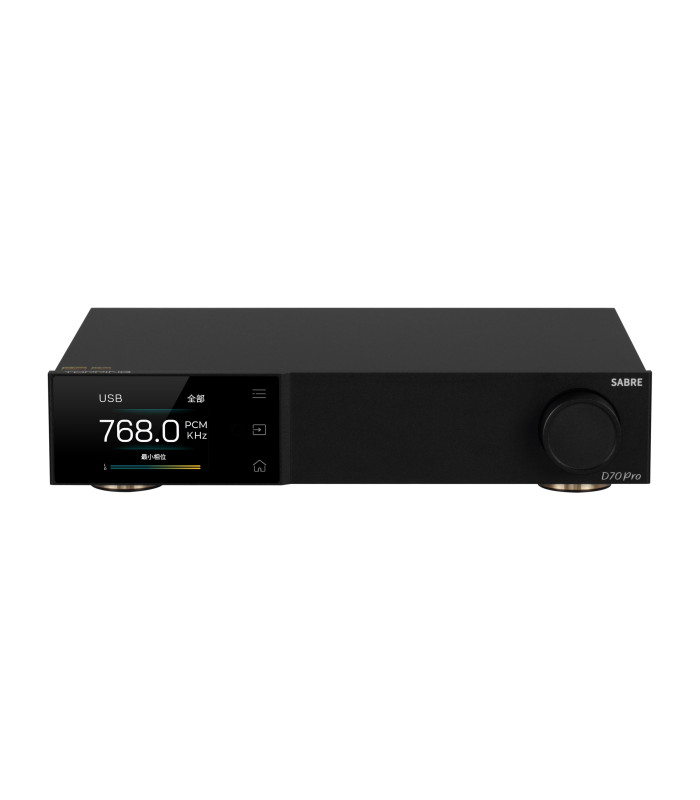

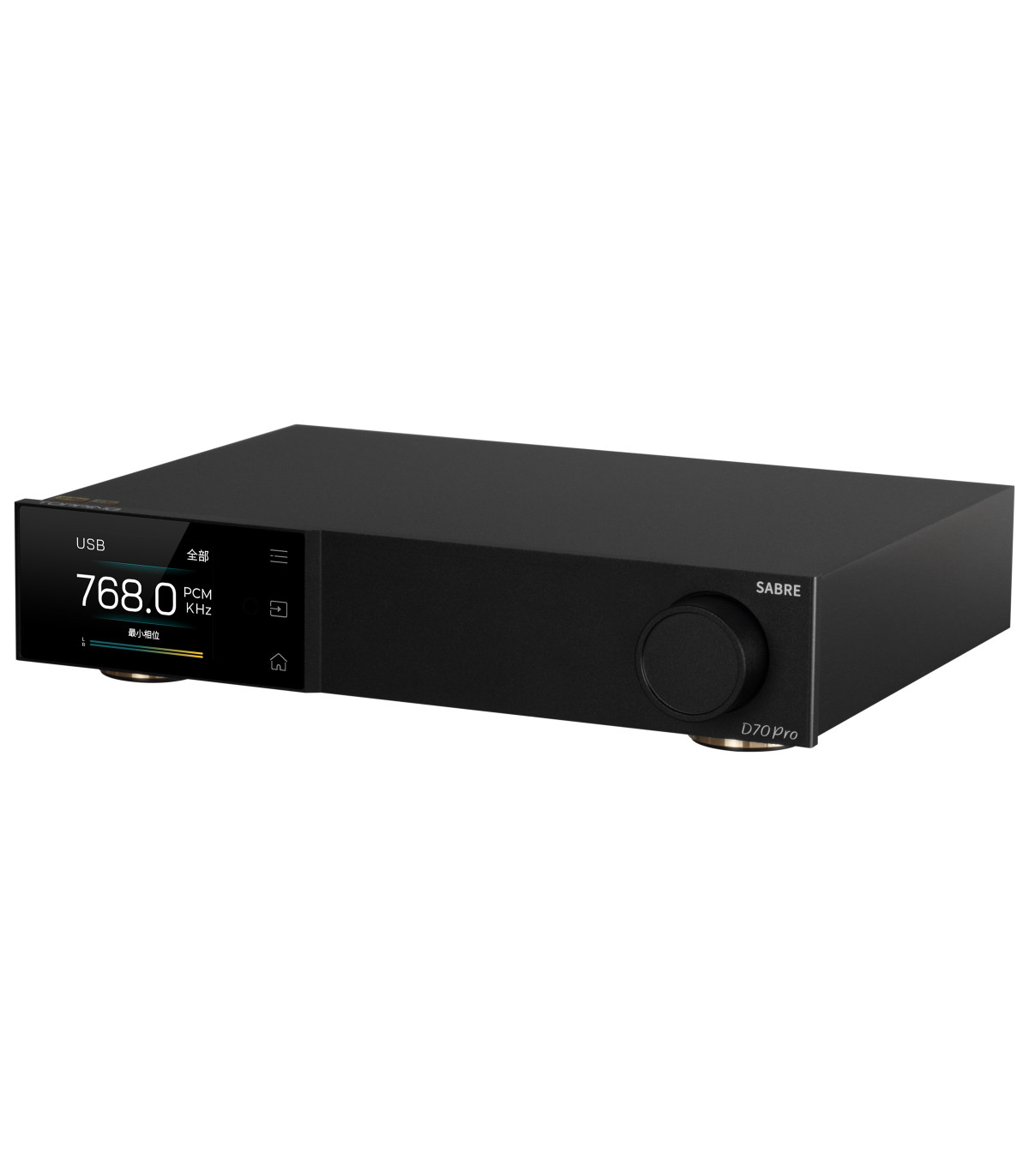

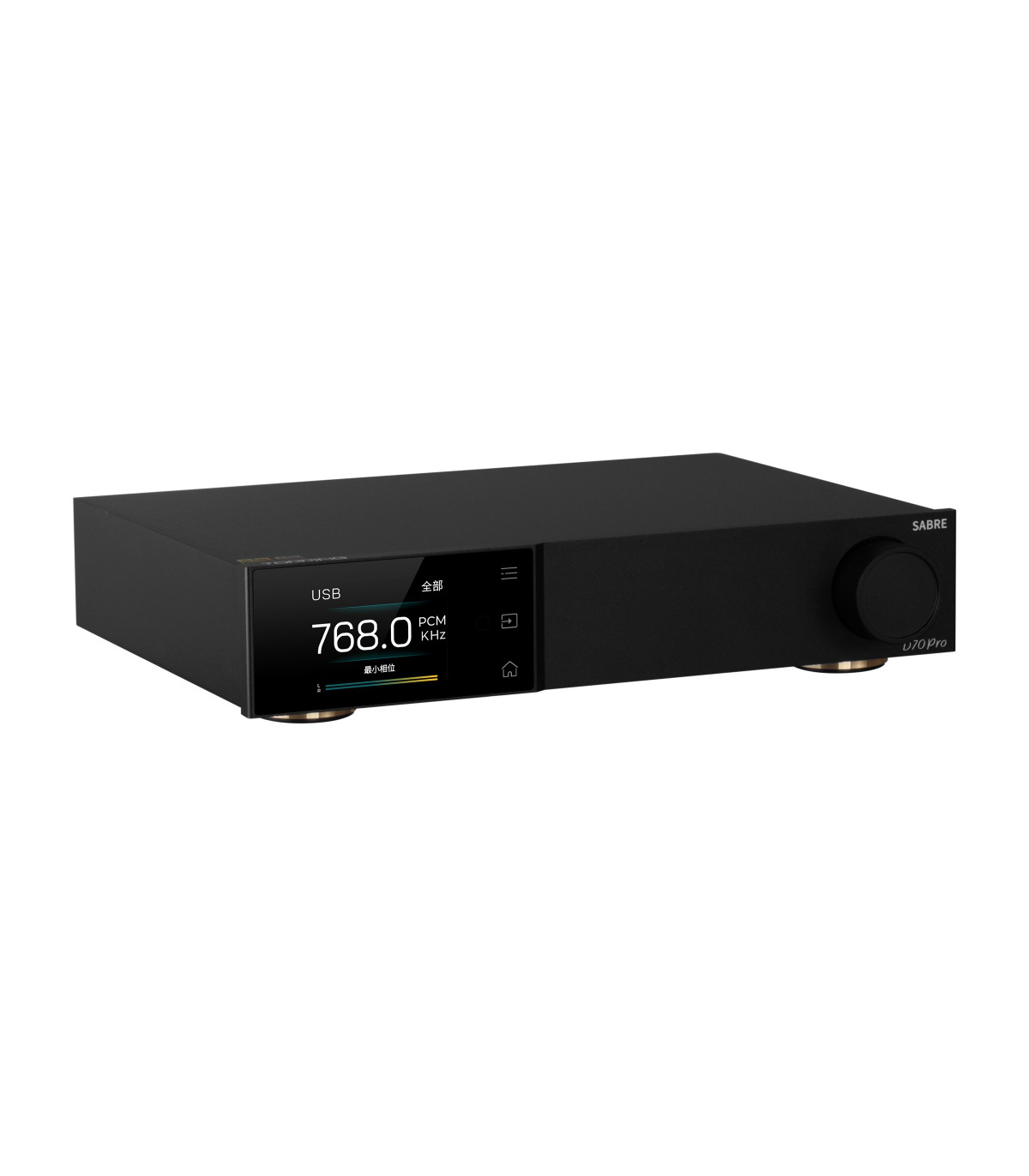

Topping D70 PRO Sabre DAC ES9039SPRO XU316 Bluetooth 5.1 LDAC

Topping D70PRO Sabre DAC ES9039SPRO XU316 Bluetooth 5.1 LDAC

• Flagship 32-bit ES9039SPRO DAC chip
• Brand new I/V conversion circuitry
• Aurora UI
• Bluetooth 5.1 transmission
• Wide compatibility
• Versatile output modes
• Adjustable output levels
• Integrated preamp function
• Independent volume memory
• Timbre fine-tuning
• 12V Trigger

Flagship ES9039SPRO Chip

The D70 Pro SABRE adopts the fully redesigned flagship 32-bit ES9039SPRO DAC chip from ESS Company.

Brand new I/V conversion

Experience higher-quality audio playback with the D70 Pro SABRE's new I/V conversion circuitry, which provides lower distortion and noise. This exclusive design allows the full capabilities of the DAC chips for a superior audio experience.

Aurora UI

Full-color screen, three touch buttons of the Aurora UI allows you to switch between playback information, FFT, and VU displays according to your preferences.

Bluetooth 5.1

The D70 Pro Sabre supports LDAC, aptX-Adaptive, aptX HD, aptX, AAC, and SBC audio encoding, the Bluetooth 5.1 transmission ensures high-quality audio is wirelessly transmitted for an enhanced sound experience.

Plug and Play

The D70 Pro SABRE has a wide compatibility and can be used on multiple operating systems, such as Windows 10, Windows 11, MAC, Linux, and iOS/Android. Simply connect to your audio source and enjoy the sound quality. Driver installation and setup are required for ASIO applications on Windows systems only.

Output modes

The D70 Pro Sabre features the versatile RCA single-ended output and the professional XLR balanced output. You can use only the desired output channel, or both outputs at the same time. This versatile output design allows various system configurations and situations, providing you with a more convenient and efficient way to manage your audio output.

Integrated preamp function

In addition to its fixed output level DAC mode, the D70 Pro SABRE also features a "preamp" mode. In this mode, you can adjust the volume and output directly to your power amplifier or active speakers.

Independent volume memory

The D70 Pro SABRE memorize the output volume for "Single Ended", "Balanced", and "All" modes. And the next time the output is selected, it automatically reverting to the last used volume.

Timbre fine-tuning

The D70 Pro Sabre supports direct switching between Default mode, Valve mode, and Transistor mode for personalized timbre.

12V Trigger

The D70 Pro SABRE has a 12V Trigger input and output interface, supporting synchronous switching with other devices, either triggered by or actively triggering other devices.

Specifications

• Max THD+N: <0.00006%
• Max SNR: 133dB
• Max Dynamic Range: 133dB
• Max frequency response: 20Hz - 40kHz
• Output levels
  • 4.2Vrms 4V mode
  • 5Vrms 5V mode
• Noise: <1.0uVrms
• Minimum channel crosstalk: -140dB
• Channel balance: 0.3dB
• Max output impedance: 100Ω

List of item included

• TOPPING D70 Pro SABRE
• Remote control
• USB cable
• AC cable
• Bluetooth antenna
• Warranty card
