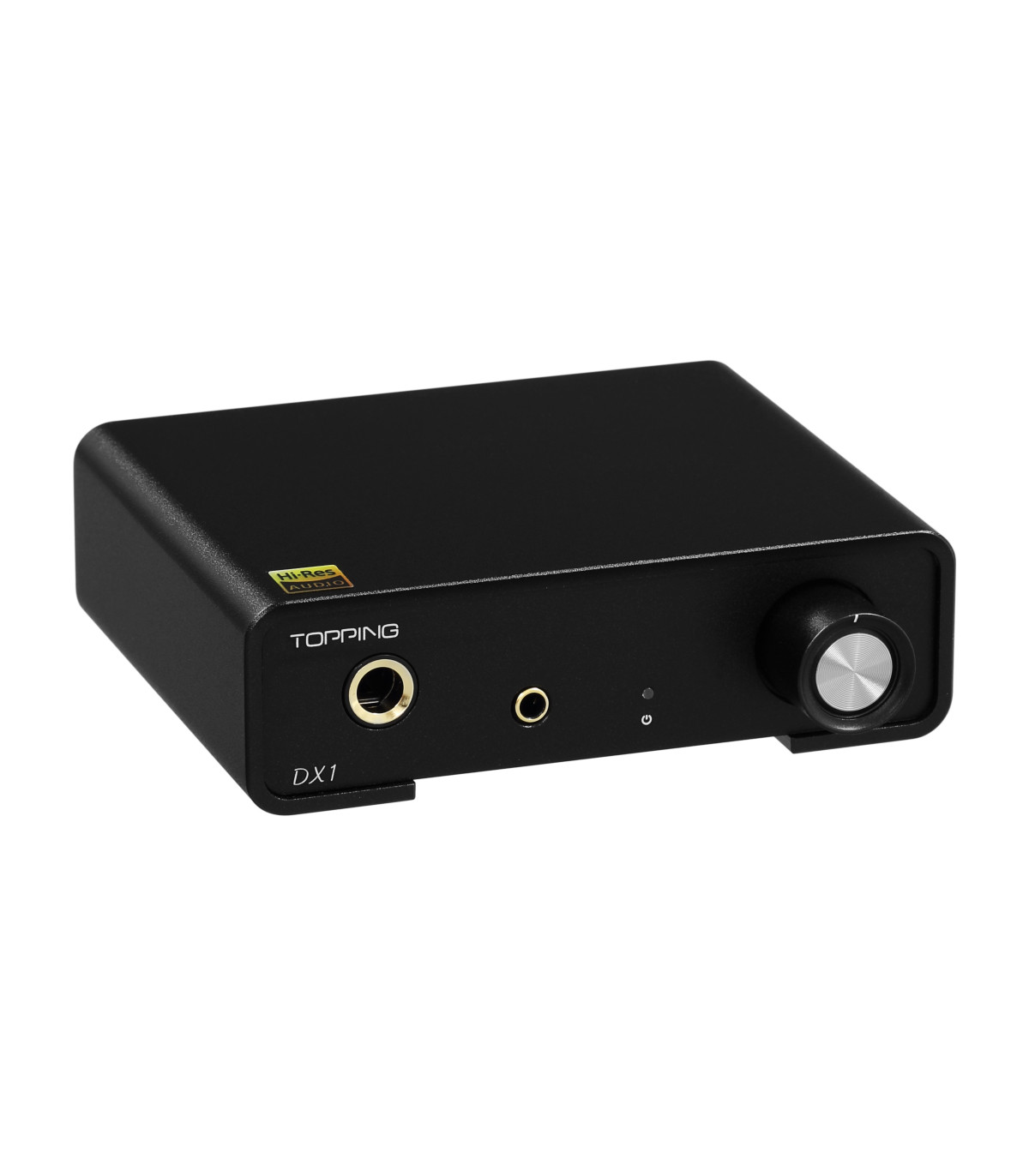

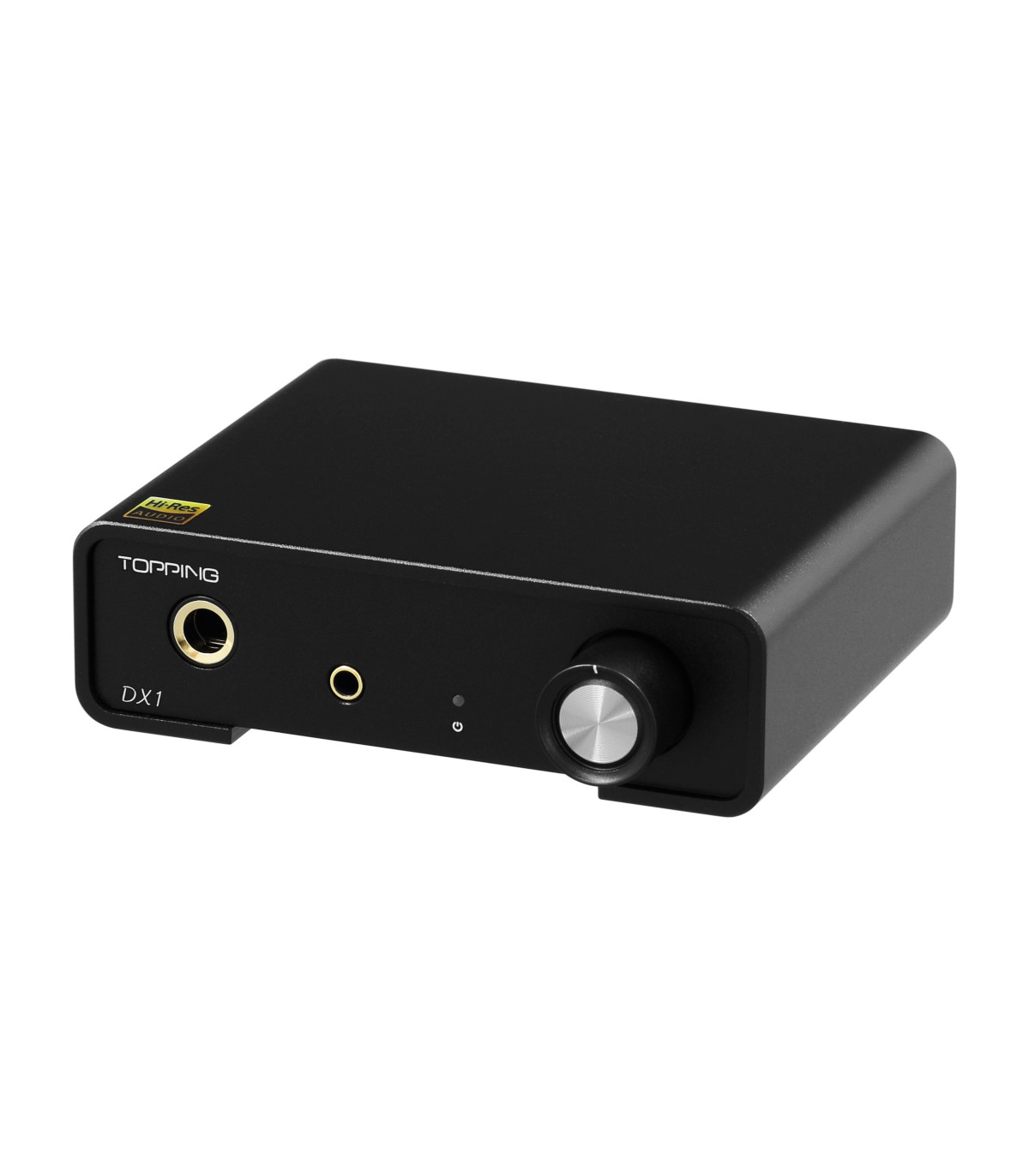

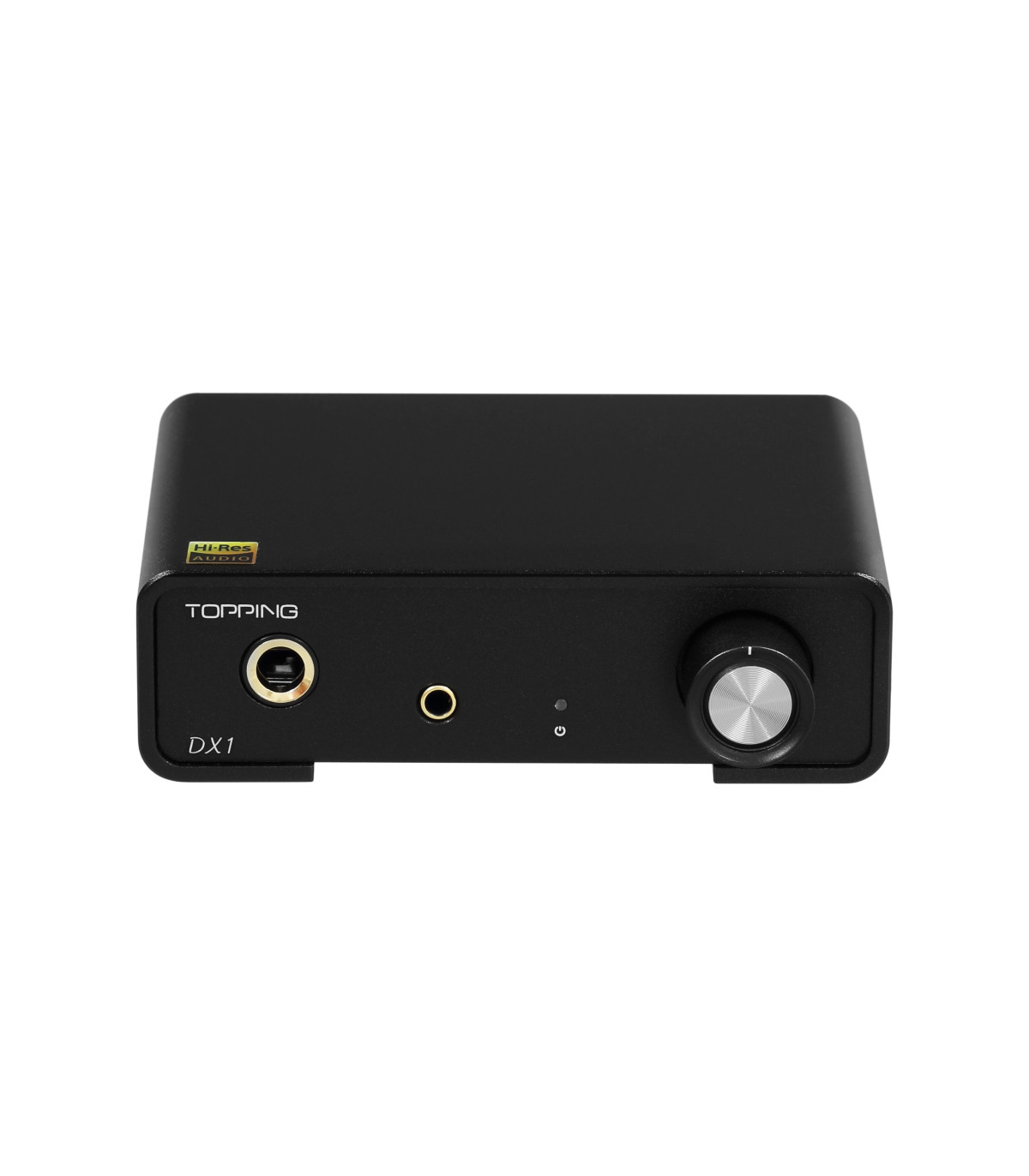

TOPPING DX1 DAC & Headphone Amplifier AK4493S

The Topping DX1 is an excellent compact, powerful and affordable DAC and headphone amp combo. Its optimized design allows for excellent digital to analog conversion and excellent headphone amplification.

AK4493S

The DX1 uses the brand new AKM AK4493S DAC chip from AKM's VELVET Sound Technology, and the USB XMOS XU208 interface, allows the support of high resolution audio, up to PCM 32bit 384kHz and DSD256.

Plug & Play

DX1 has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, iOS, Android. Only for Windows ASIO applications, you need to install the driver and set it up.

Discrete LNRD

To solve the noise problem from USB power, the DX1 uses a Discrete LNRD (Low Noise Reference Driver), to filter out the noise and interference of USB 5V power, providing stable and clean power supply.

Powerful output in a small size

The Topping DX1 can provide a max mum output of 280mWx2 without additional power supply.

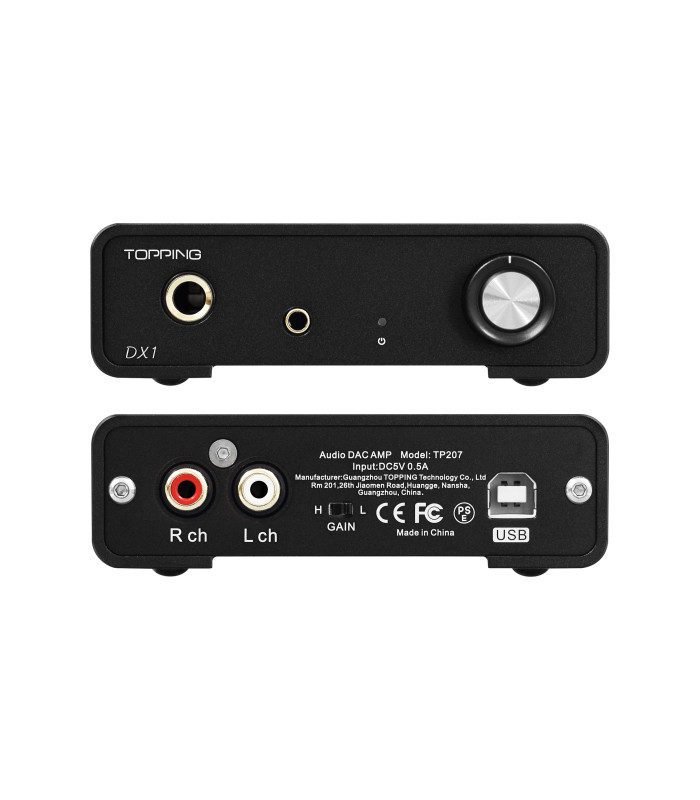

Input: 1x USB-B

Outputs:

• 1x Stereo RCA line out (fixed volume)

• 1x Jack 3.5mm headphone output

• 1x Jack 6.35mm headphone output

Supported sampling rates:

• PCM up to 32bit 384kHz

• Native DSD up to DSD256

• DSD DoP up to DSD128

Item List:

• 1x Topping DX1

• 1x USB-B cable
