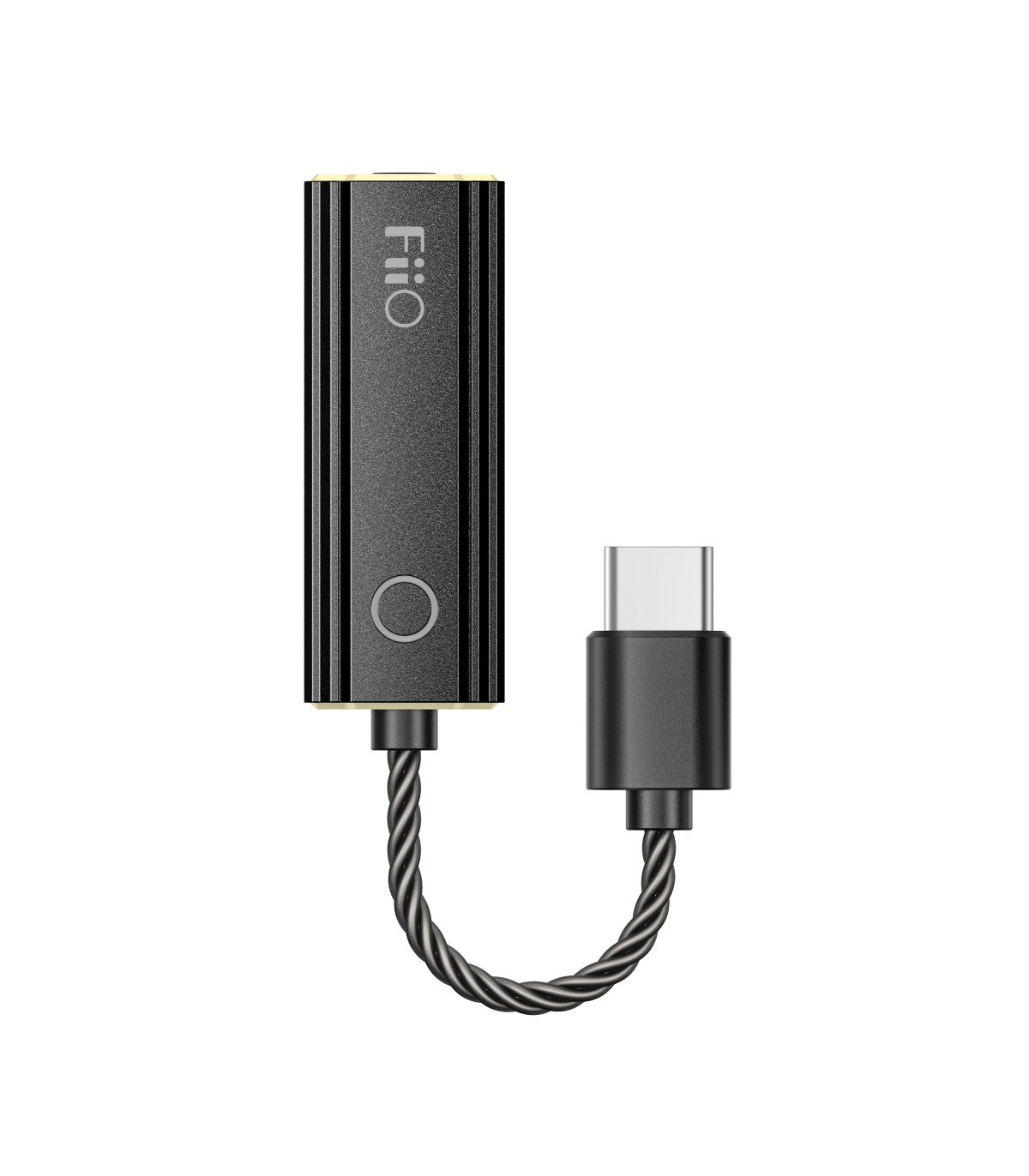

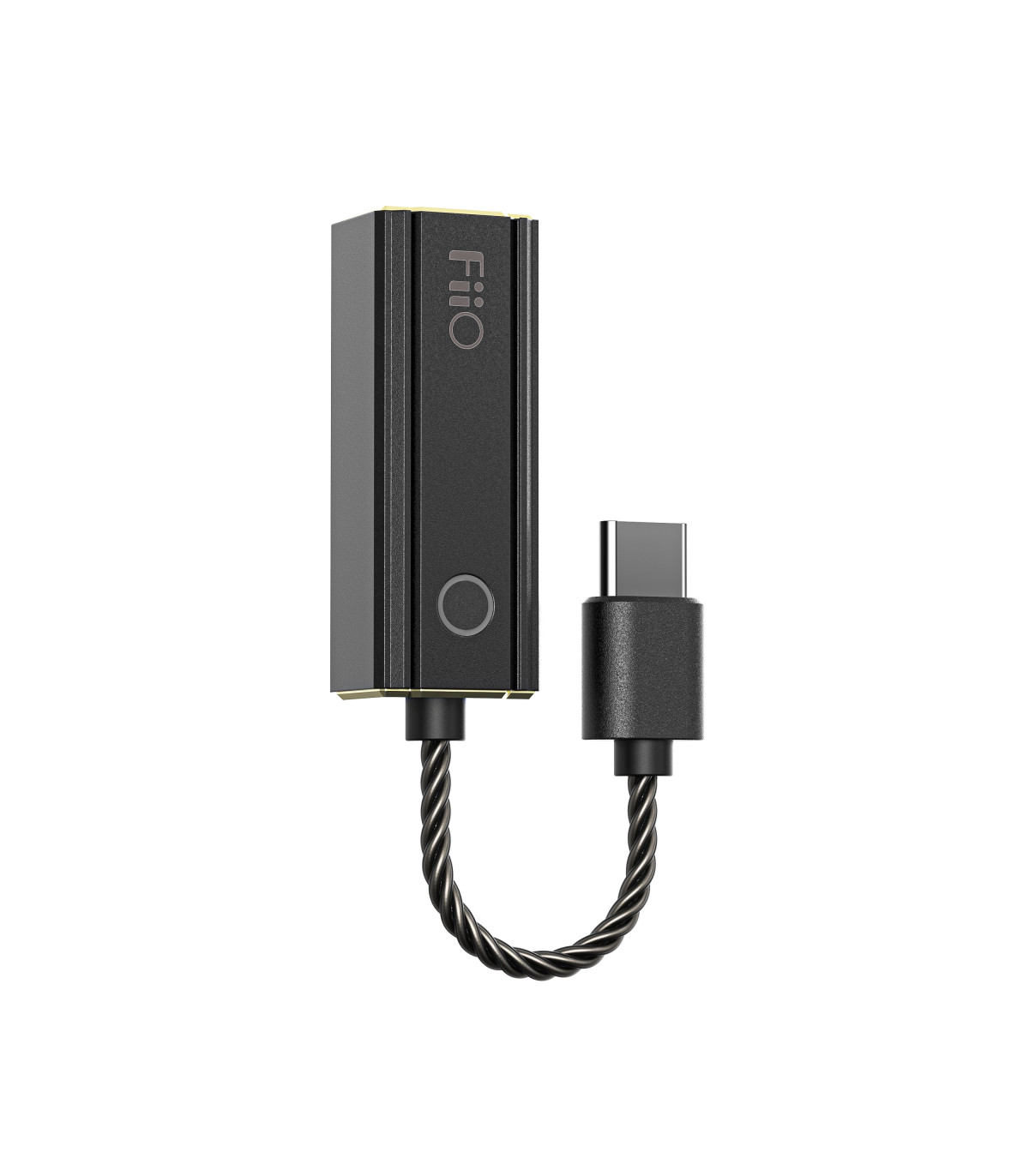

FIIO KA2 Portable DAC Headphone Amplifier

Unleash double the performance, 2*CS43131

The KA2 is equipped with two CS43131 DAC chips, each capable of high performance and accurately reproducing high-resolution audio. Supports up to PCM 32bit 384kHz and DSD256.

4.4mm balanced out

Get the KA2’s full potential by utilizing the 4.4 mm balanced output - with max output power of 153mW@32Ohm, a high signal-to-noise ratio of 131dB, and a THD+N of only 0.0005%, with a pitch black background. All of this ensures clean, excellent sound.

NOTE: The device only has a balanced output and it is necessary to have headphones or earphones with a 4.4 mm balanced connector

FiiO Control App

Easily link the KA2 to the FiiO Controll App, which allows you to easily access settings and parameters from the comfort of your smartphone.

5 selectable digital filters

The KA2 offers 5 different digital filters to select from. This Allows you to select your own way to listen your music.

High-quality audio, everywhere

The KA2 is compatible with Android/iOS/Windows/MacOS, covering most of the platforms commonly used.

Ring-shaped RGB LED indicator

The circular RGB LED indicator featured in the KA2, lets you instantly know what kind of audio format you are playing.

- Blue: 48kHz or below sample rate

- Yellow: above 48kHz sample rate

- Green: DSD

In the package:

- FiiO KA2

- Female USB-C to male USB-A

General specifications
Name/Model	KA2	color	Classic Black
hardware	DAC: CS43131*2

Audio input interface	Type-C Cable or Lightning	Headset output interface	4.4mm socket
firmware upgrade	The system firmware can be upgraded through USB	sample rate indication	blue: below 48kHz yellow: above 48kHz Green: DSD
channel balance	<0.02dB(32Ω/THD+N<1%)	impedance adaptation	16 to 300 Ω
The highest supported sampling rate	384KHz/32bit	Support DSD	DSD64/128/256

Audio parameters
Headset Output Part Performance Parameters (4.4mm)
output power	112mW (16Ω,THD+N<1%)	output amplitude	2.2V(32Ω/THD+N<1%)
	153mW (32Ω,THD+N<1%)	channel separation	≥ 91dB(1Khz,32 Ω load)
	54mW (300Ω,THD+N<1%)
	27mW(600Ω,THD+N<1%)	output impedance	<0.5 Ω (load 32 Ω)
frequency response	20Hz to 20KHz, the curve amplitude changes by 0.03dB.	signal-to-noise ratio	≥ 125dB(32 Ω A)
	20Hz to 50KHz, the curve amplitude changes by 0.05dB.		≥ 131.2dB (600 Ω A)
bottom noise	<1.1uV(32 Ω-A)	distortion plus bottom noise	<0.00036%(32 Ω)
			<0.00023%(600 Ω)
	<1.05uV(600Ω-A)		<0.00024%(32 Ω A)
			<0.00014%(600 Ω A)
