FIIO KA3 Portable DAC Headphone Amplifier ES9038Q2M Balanced 32bit 786kHz DSD512 [b-Stock]

Be the first to write your review

Product Code: 2585bs

Condition: b-Stock

B-Stock product, (read below) in excellent condition with original packaging, 2 year warranty.

More details

Add to wishlist

Send to a friend
Send to a friend

FIIO KA3 Portable DAC Headphone Amplifier ES9038Q2M Balanced 32bit 786kHz DSD512 [b-Stock]
B-Stock product, (read below) in excellent condition with original packaging, 2 year warranty.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel

Description
Designer
Comments (0)
Questions (0)

Description

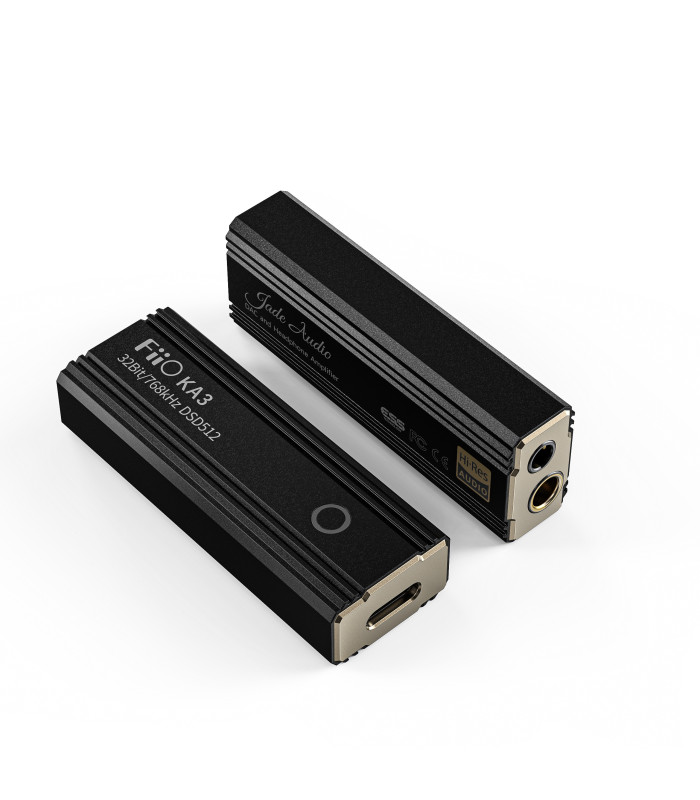

FIIO KA3 - Portable DAC Headphone Amplifier ES9038Q2M Balanced 32bit 786kHz DSD512

FiiO offers with the KA3 a compact and particularly powerful portable DAC and headphone amplifier combo. Featuring a USB-C input, it is an ideal companion for use with a current smartphone. It also features a dual output, with single-ended 3.5mm jack and balanced 4.4mm jack to match your listening device.

Optimized architecture

The KA3's circuitry uses quality components in an intelligent architecture to achieve excellent performance and clear, detailed sound reproduction.

FiiO KA3 DAC Amplificateur Casque Portable ES9038Q2M Symétrique 32bit 786kHz DSD512

High performances DAC

The digital / analog conversion stage uses an ESS ES9038Q2M DAC chip. This one ensures a sound restitution recognized for its great precision and transparency. Moreover, it allows the support of high resolution audio streams, up to PCM 32bit 768kHz and DSD512.

RGB indicator

The KA3 features a convenient circular RGB LED indicator. It changes color to indicate the sample rate of the file being played.

Blue : 48kHz and below
Yellow : 48kHz and above
Green : DSD

Control app

FiiO provides a control application for Android, allowing to access many parameters to adapt the sound of the KA3 to your desires. It is for example possible to access 7 filters, to modify the gain level or to adjust the channel balance.

You can connect the FiiO KA3 to your iPhone/iPad/iPod by purchasing the FiiO LT-LT1 separately (click here).

Technical characteristics

SPECIFICATIONS
Product type	DAC and headphone amplifier
DAC Chip	ES9038Q2M
Input	1x USB-C
Outputs	1x Single-ended Jack 3.5mm 1x Balanced Jack 4.4mm
Output power	Single-ended: 130mW @ 32Ω Balanced: 240mW @ 32Ω
Noise floor	Single-ended: 3.9µV / 4.2µV Balanced: 4.4µV / 4.3µV
Supported sampling rates	PCM up to 32bit 768kHz DSD up to DSD512

GENERAL
Dimensions	56.3 x 20.2 x 12mm
Weight	17.5g
Color	Black
Package	1x FiiO KA3 1x USB-C to USB-C cable 1x USB-C to USB-A cable

A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee.

These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition.
B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product.
Any special comments about a B-Stock product will be noted at the beginning of the article description.
