Topping D30 Pro Balanced DAC 4x CS43198 32bit 384kHz DSD256 [b-Stock]

Balanced DAC 4x CS43198 32bit 384kHz DSD256

Topping D30 Pro Balanced DAC 4x CS43198 32bit 384kHz DSD256 [b-Stock]

Reference:

2497a-bs

Condition

Refurbished

b-Stock product, (read below) in excellent conditions, original box, full warranty.

TOPPING D30 PRO Balanced DAC 4x CS43198 32bit 384kHz DSD256

Sound of Quad DAC

The D30Pro is a simple DAC with top specifications, better sound, and a refined build. A perfect partner with the A30Pro headphone amplifier.
The 4 x CS43198 provide a total of 8 full balanced channels. So each channel of the D30Pro will be arranged in parallel by 4 conventional balanced channels. The increase in output capability will bring changes in the sound and the spec will also improve.

USB support DSD256 & PCM384kHz high resolution audio

D30Pro uses 2nd generation 8 core XMOS XU208, USB supports up to PCM32bit 384kHz and DSD256 native. With the help of customized Thesycon driver (for Win 7 or above), your PC will have better performance on ASIO playback.

ASIO settings are too complicated? We also have a simpler usage

How simple can it be? Connect directly to the PC without installing any driveres, set the sampling rate that you want and enjoy!

Selectable output port

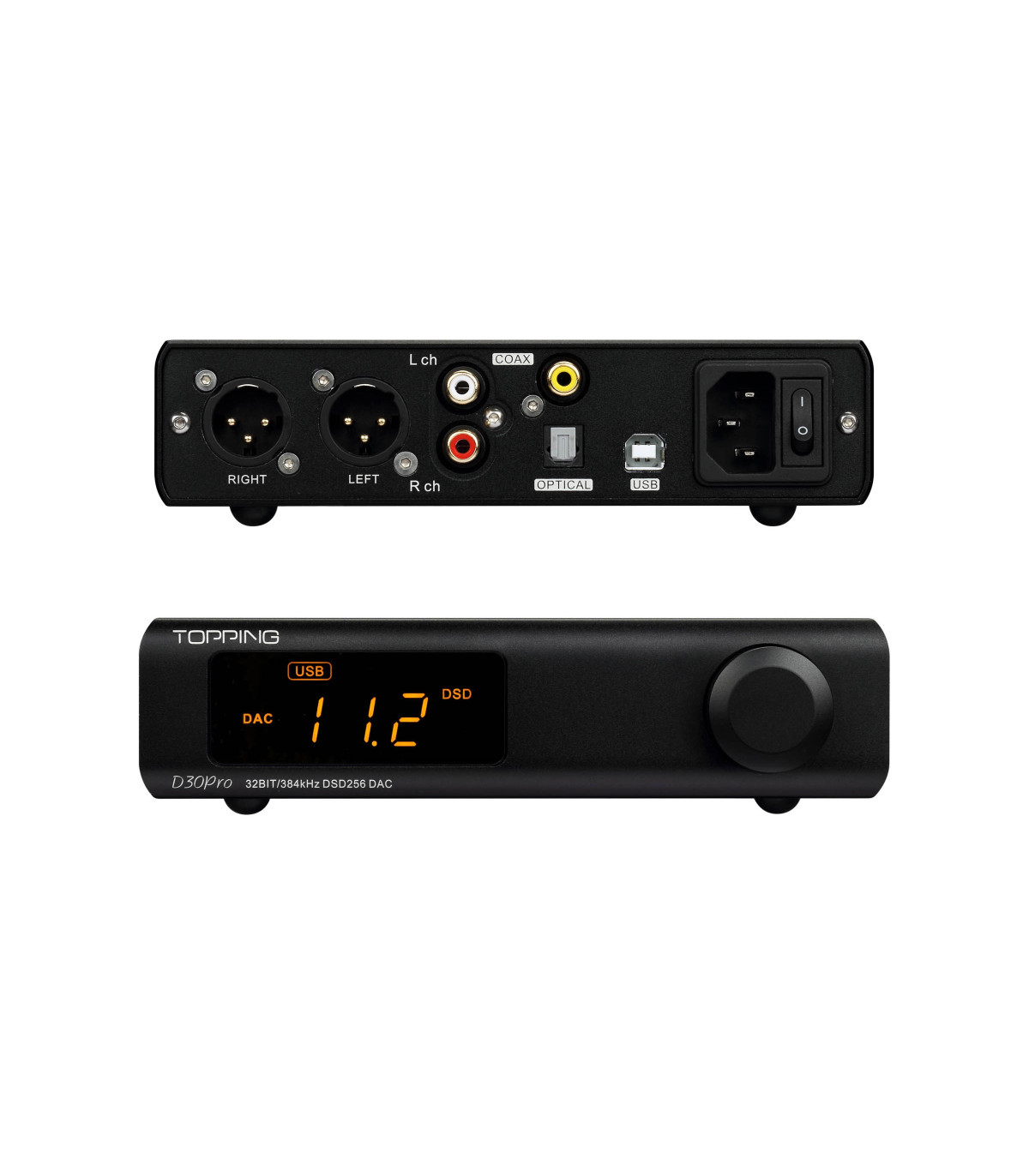

D30Pro has full balanced XLR output and single ended RCA output. You can choose "XLR only", "RCA only" or "XLR+RCA" output to meet different usage requirments.

Preamplifier function

D30Pro has a preamplifier function so you can control the output volume on the front panel and also at the remote control. Since it's noise is

Technical characteristics

SPECIFICATIONS
Product type	DAC
Inputs	1x USB-B 1x Optical Toslink 1x Coaxial 1x Stereo RCA
Outputs	1x Single-ended stereo RCA 1x Balanced stereo XLR
DAC Chips	4x Cirrus Logic CS43198
Sampling rates	USB : PCM up to 32bit 384kHz Native DSD up to DSD256, DSD DoP up to DSD128 Coaxial / Optical : PCM up to 24bit 192kHz, DSD64 (DoP)
THD+N @ A-Weighting	RCA : < 0.0001% @ 1kHz XLR : < 0.00009% @ 1kHz
THD @ No-Weighting 45kBw	RCA : < 0.0004% @ 20Hz-20kHz XLR : < 0.0004% @ 20Hz-20kHz
SNR @ A-Weighting	RCA : 127dB @ 1kHz XLR : 132dB @ 1kHz
Dynamic range @ A-Weighting	RCA : 127dB @ 1kHz XLR : 132dB @ 1kHz
Frequency response	RCA : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) XLR : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB)
Voltage output	RCA : 2Vrms @ 0dBFS XLR : 4Vrms @ 0dBFS
Noise @ A-Weighting	RCA : < 0.9µVrms XLR : < 1.1µVrms
Crosstalk	RCA : -116dB @ 1kHz XLR : -145dB @ 1kHz
Output impedance	RCA : 20Ω XLR : 40Ω

A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee. These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition. B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product. Any special comments about a B-Stock product will be noted at the beginning of the article description.
