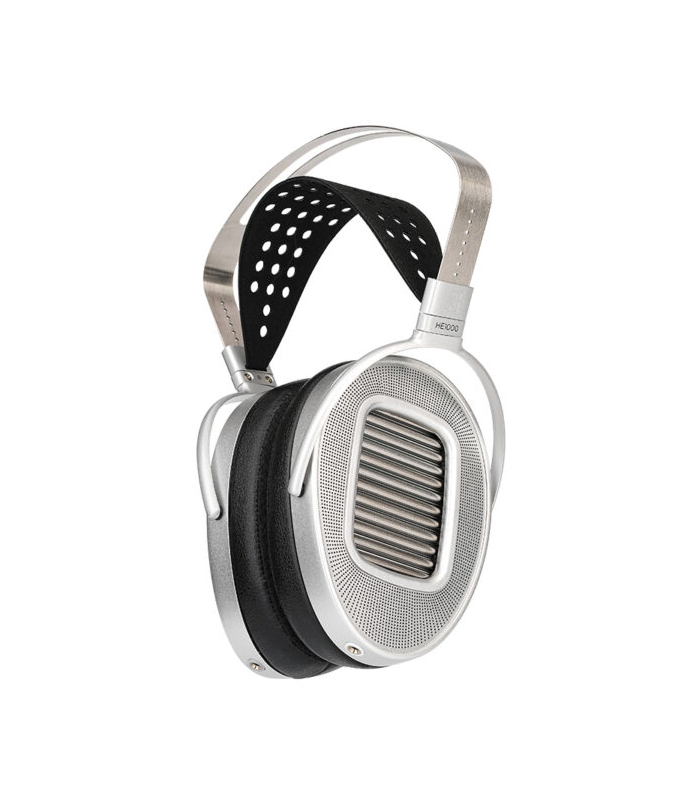

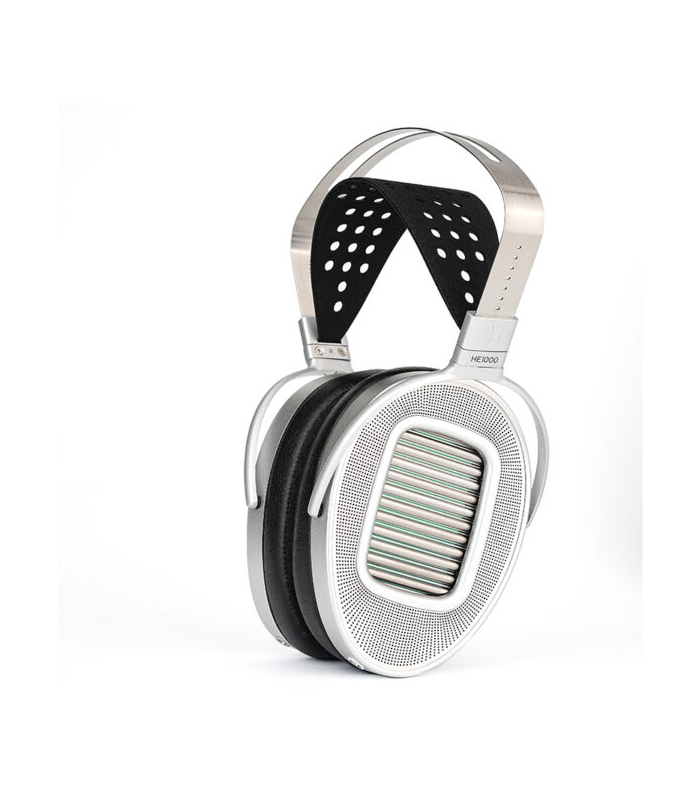

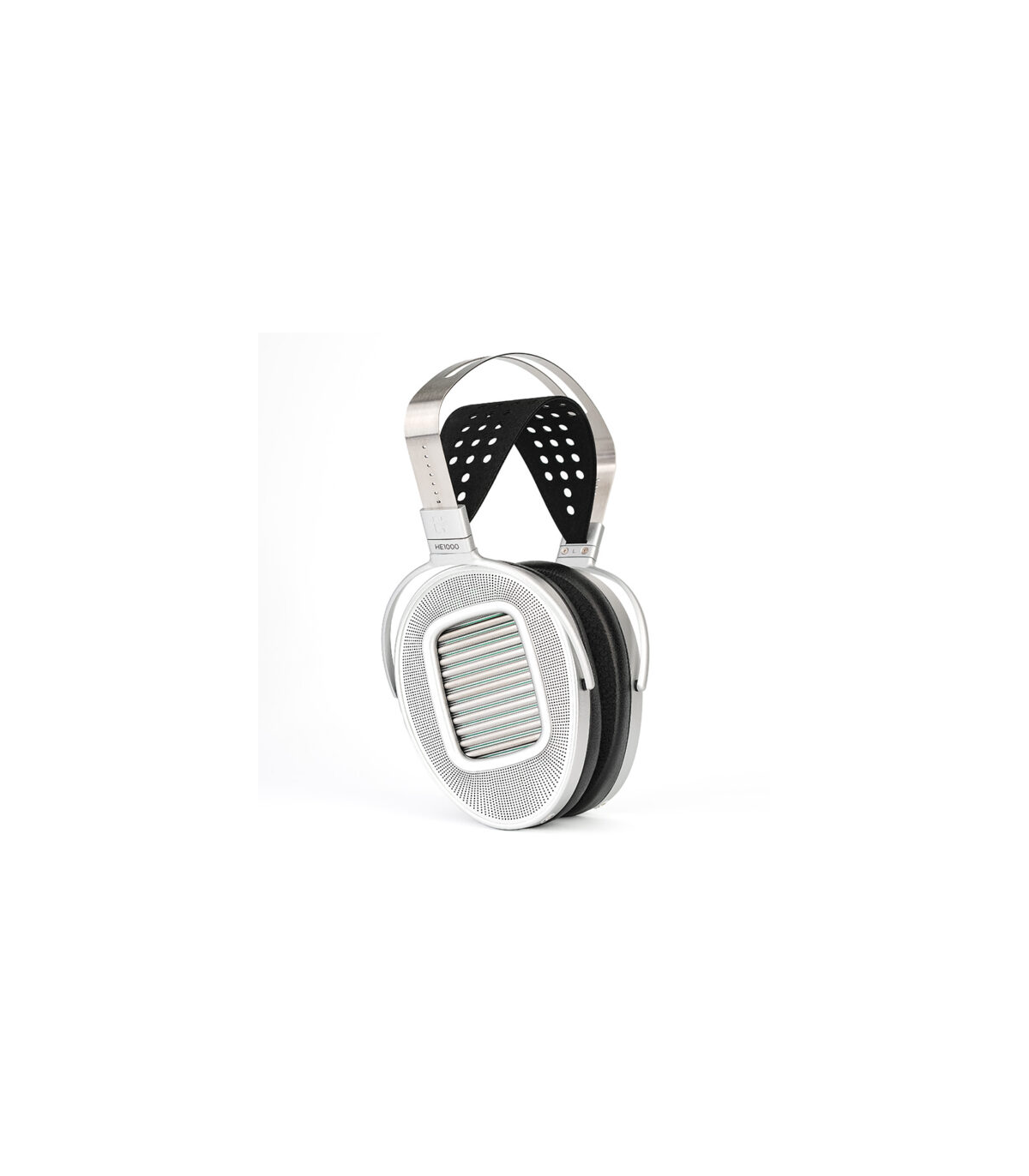

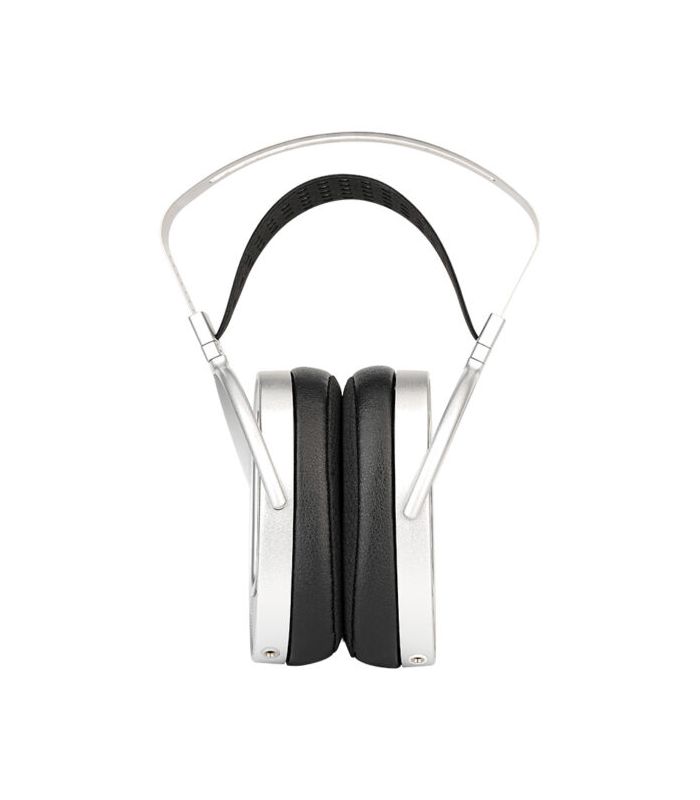

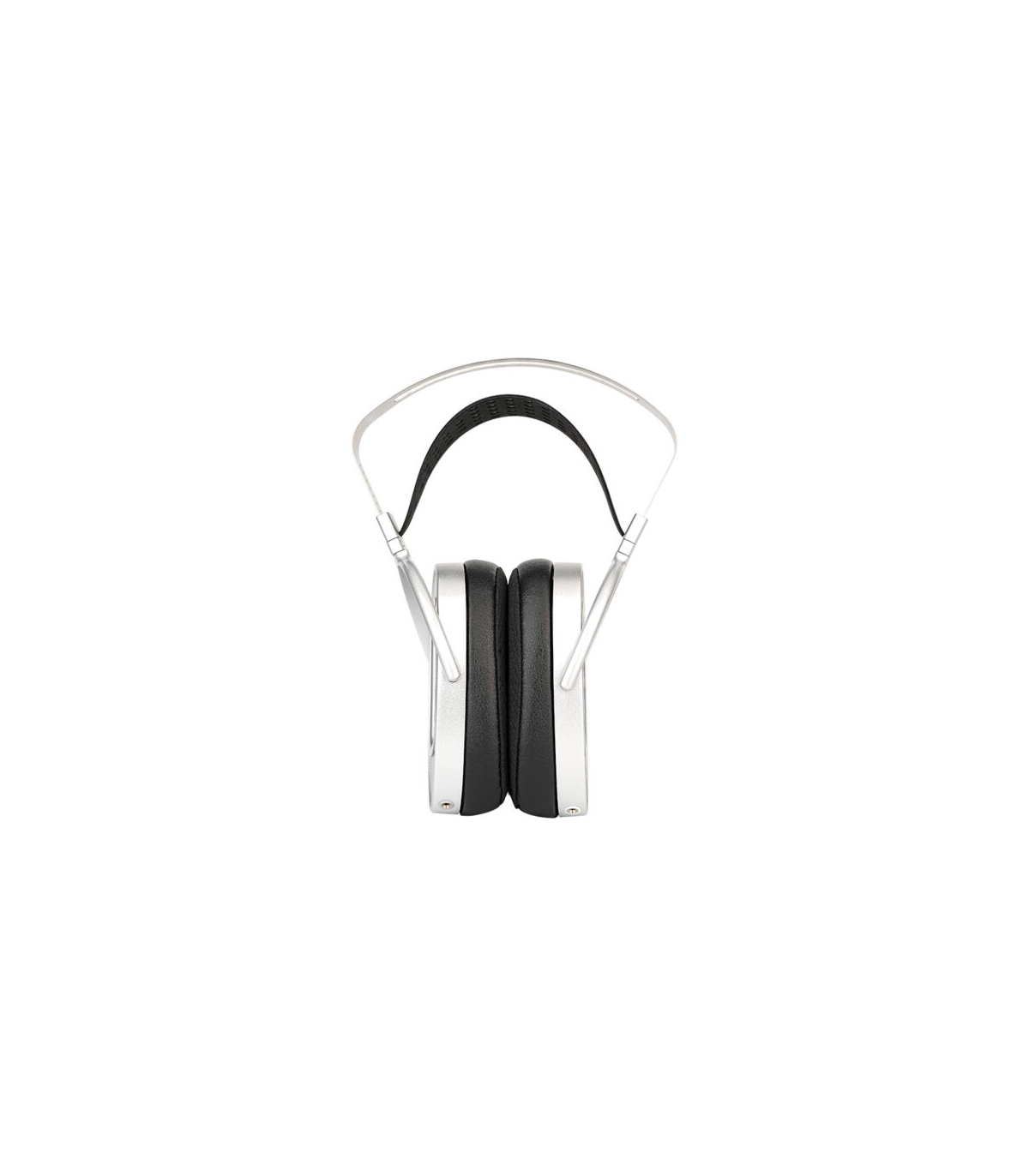

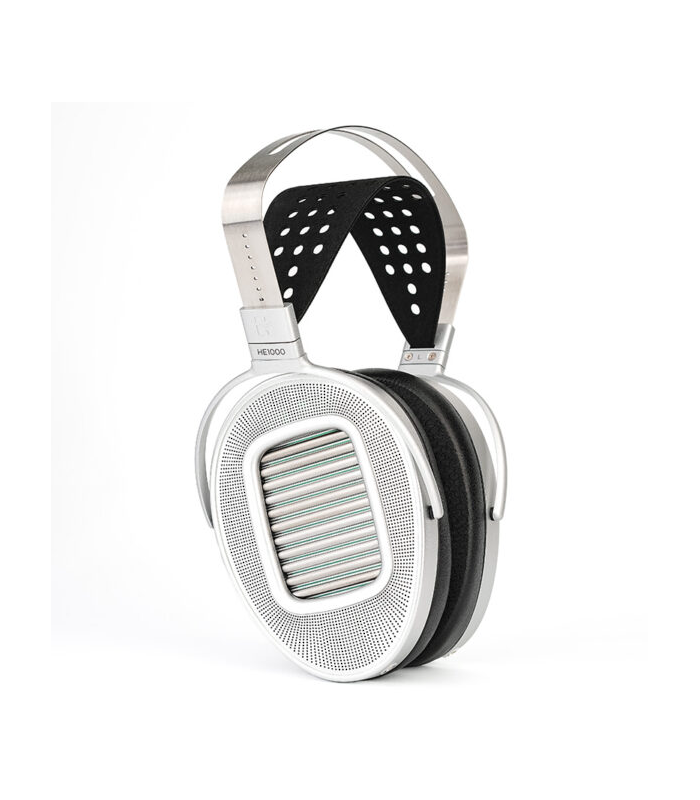

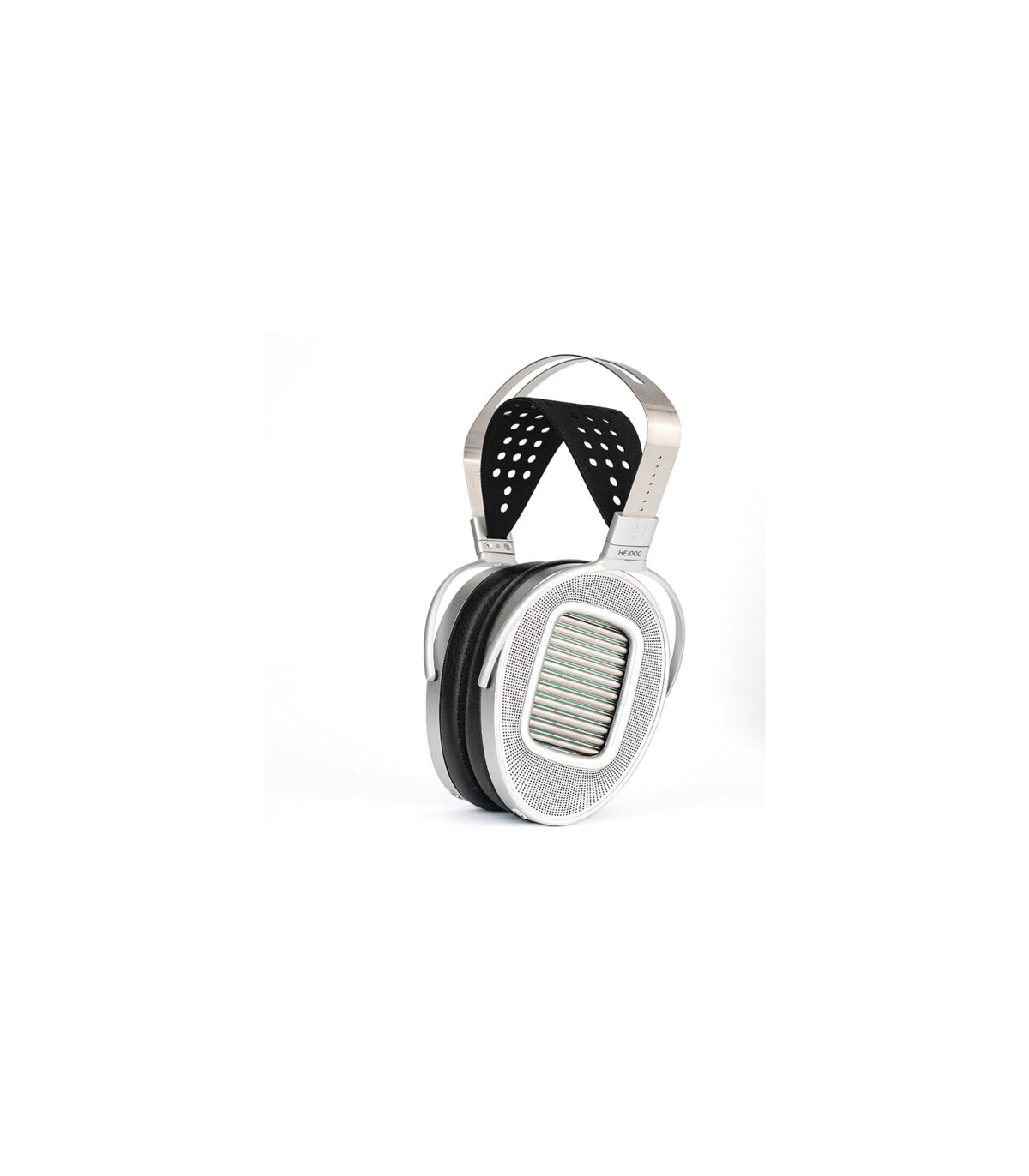

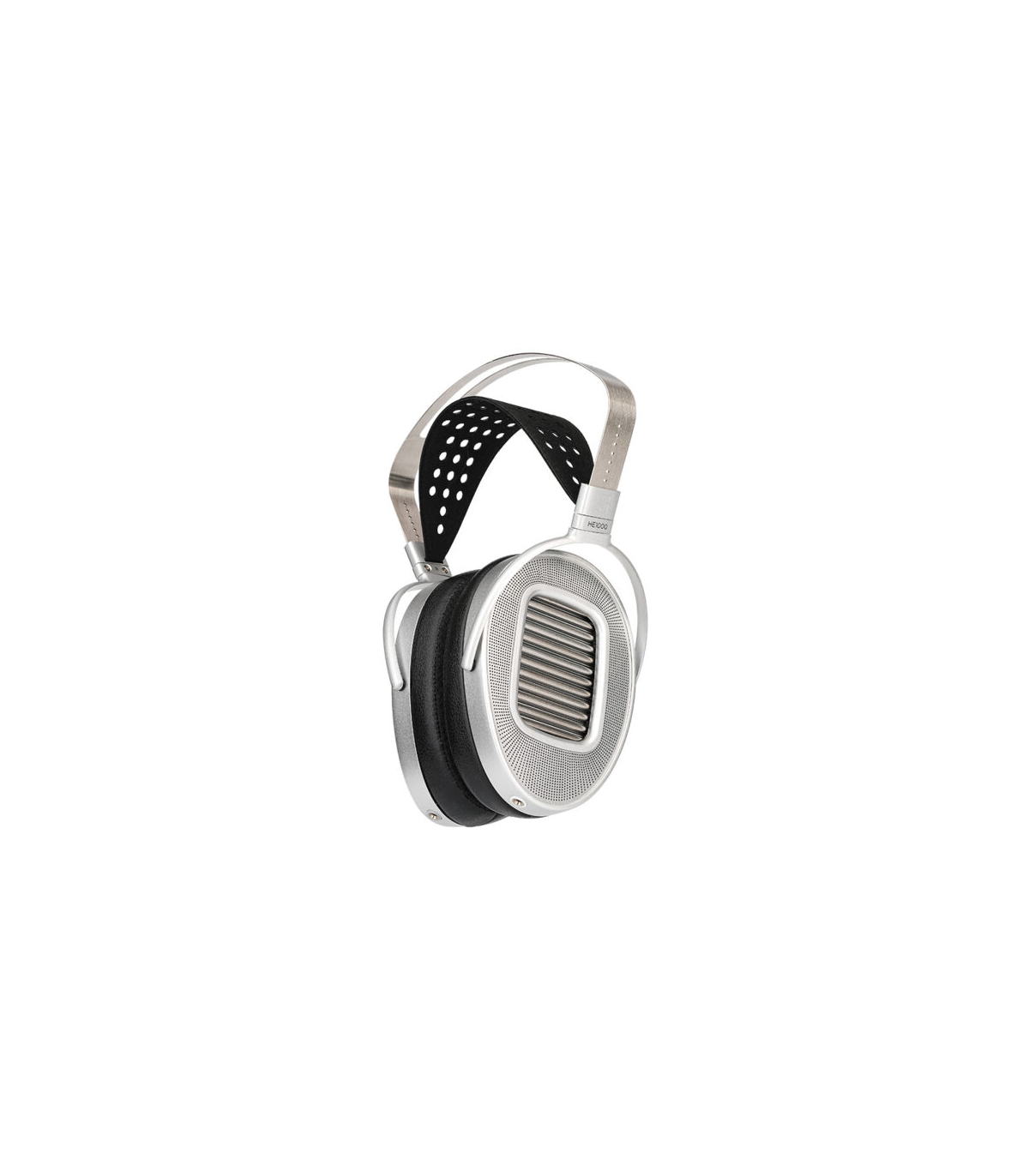

HiFiMAN HE1000 UNVEILED Planar Magnetic Headphones

Building on the success of the flagship Susvara Unveiled, HiFiMAN has now incorporated this innovative technology into the top tier of the HE1000 series. This enhancement delivers a more engaging listening experience by expanding the soundstage and improving sonic clarity through reduced sound reflection. HiFiMAN continues to solidify its position as a trailblazer in the head-fi industry, leveraging cutting-edge advancements like ultra-thin planar technology, stealth magnet designs, and more. Dr. Bian elaborates: "The most effective way to minimize sound wave reflections and refractions caused by the grill is to completely remove it, achieving full diaphragm openness. This leads to sound that is significantly clearer and more transparent, which is why we call this approach ‘unveiled’ technology."

Stealth Magnet technology features a unique asymmetrical, dual-sided magnetic circuit designed to progressively fine-tune the magnetic gap and the cross-sectional configuration both within and beyond the diaphragm. This innovation optimizes sound transmission and diaphragm control at a precisely calibrated balance, minimizing distortion to an absolute minimum. The result is a sound profile that is inherently warmer, with significantly enhanced imaging and clarity.

Magnetic Veil

The HE1000 Unveiled incorporates a removable back panel, called Magnetic Veil, that is a result of HIFIMAN using CNC (Computer Numerical Control) technology, a process of relying on computer software to control the movement and operation of machines that cut, carve, and engrave materials. Magnetic Veils fit over the ear cups, helping to avoid damage caused by the absorption of magnetic objects when the headphone is not in use.

Specifications

• Frequency Response: 8Hz – 65KHz
• Sensitivity: 95dB
• Impedance: 28Ω
• Weight: 450 grams, excluding magnetic veils and cable

List of items included:

• HE1000 Unveiled
• 3m headphone cable (4-pin XLR plug)
• 3m headphone cable (6.35mm plug)
• 1.5m headphone cable (3.5mm plug)
• Pair of Magnetic Veils
• Pair of ear pads (mounted on headphone)
• Owner’s Guide

The Planar Magnetic Operating Principle

You can think of planar magnetic drivers as a sort of crossbreed between dynamic and electrostatic drivers. Like a standard dynamic headphone, planar magnetic headphones use the magnetic field around a conductor that has electrical current flowing through it to drive the diaphragm. Like an electrostatic driver, the diaphragm of a planar magnetic speaker is a thin sheet of flexible transparent film, but unlike an electrostat, the film has very thin, flat electrical conductors (wires ... but very flat ones) in it.

HiFiMAN at a glance

Founded by Dr. Fang Bian in 2007, HiFiMAN is widely regarded as one of the leading manufacturers of high performance headphones and portable audio products. HiFiMAN is especially known for its critically-acclaimed Planar-Magnetic headphones that feature state-of-the-art driver technology. The company also designs and manufactures best-in-class dynamic in-ear drivers which have also garnered awards and rave reviews. HiFiMAN also owns and operates Head-Direct, an online webstore featuring the finest headphones and portable audio players available today, including HiFiMAN products.

In demo at PlayStereo Studio and other authorized dealers.
