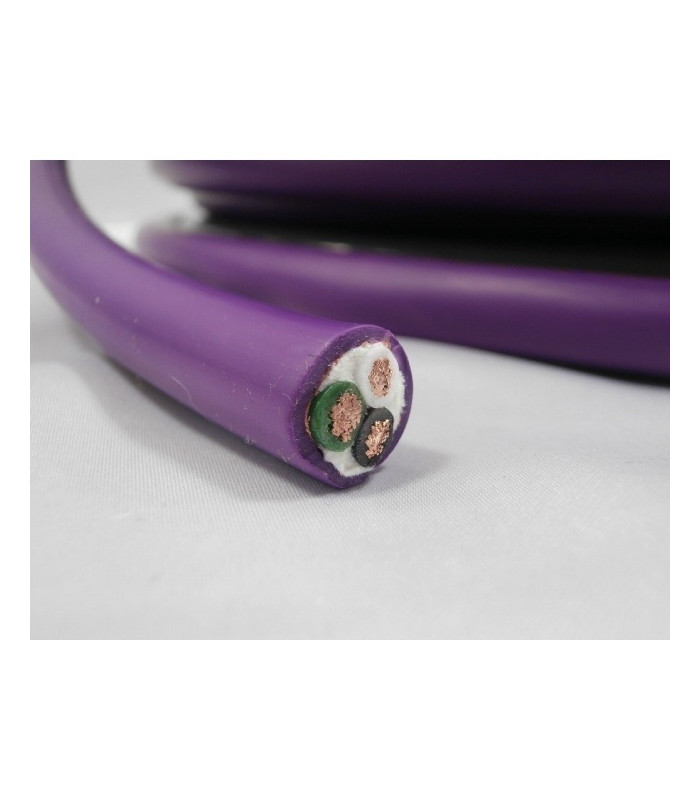

Acoustic Revive POWER SENSUAL-TripleC 18000 Power Cable (1.5m cut-sales)

Acoustic Revive Hi-End Power Cable POWER SENSUAL-tripleC 18000. This is the new non-terminated version, available in cut-sales of 1.5 meters, of the multi-awarded Acoustic Revive POWER SENSUAL, now in the bettered version with the unique TripleC conductors. The same cable is available in factory-terminated version at the price of about 3.500 euros. So this cable is suitable to do it yourself a power cable of ***outstanding*** quality at a minimum price.

Also the same Schuko/IEC plugs of the terminated version are separately available together with the sheet in pure carbon.

Price is for a cut-sale of 1.5 meters. To order more lenghts please insert the product in the basket in multiple quantities, we are going to send you a single cut of the desired total length. For different length in respect to the minimum 1.5m suggested please contact us.

• Single conductor surface 5.6sq
• Total cable diameter 13,5mm
• Single conductor diameter isolating sheet included 5mm

PC-tripleC conductor, single line of superiority
- Realization air insulation structure, the Teflon insulated by ultra-high CP price
- Copper foil shield, tourmaline impregnated sheath to prevent external noise

A world first ! By using traditional Japanese forging processes, a new ‘ultimate’ conductor has been produced.

Forging process
Copper is compressed to 70% by forging tens of thousands of times by gradual application of pressure with a fixed angle and direction. (The constant angle continuation transfer forging method). By using this forging process, the transverse crystal grain boundary changes and becomes more longitudinal, crystals now have consecutive connections which makes current flow extremely smooth.

In addition, by forging, the conductor density is dramatically improved by destroying the internal air grains. This, in turn, improves the conductivity and the acoustic signature of the copper.

A conductor section before forging process

Electric current flow: The crystal structure and grain boundaries that are formed in a transverse state are a disturbance to the electric current and signal transmission.

So the Crystals and grain boundaries that were in a transverse state are elongated and become more longitudinal when they are forged repeatedly in the same direction.

By further continuous forging, crystal structures and grain boundaries are subdivided and lined up longitudinally which generates a smoother signal transmission.

Annealing process after core-wire processing
PC-TripleC wire after "Continuous Crystal Construction" process is further processed by Transfer Forging method for thinner wire.Then Annealing process is carried out under a temperature and time control depending on a thickness of the wire.In result, crystals fuse each other and change into more consecutive crystal.
