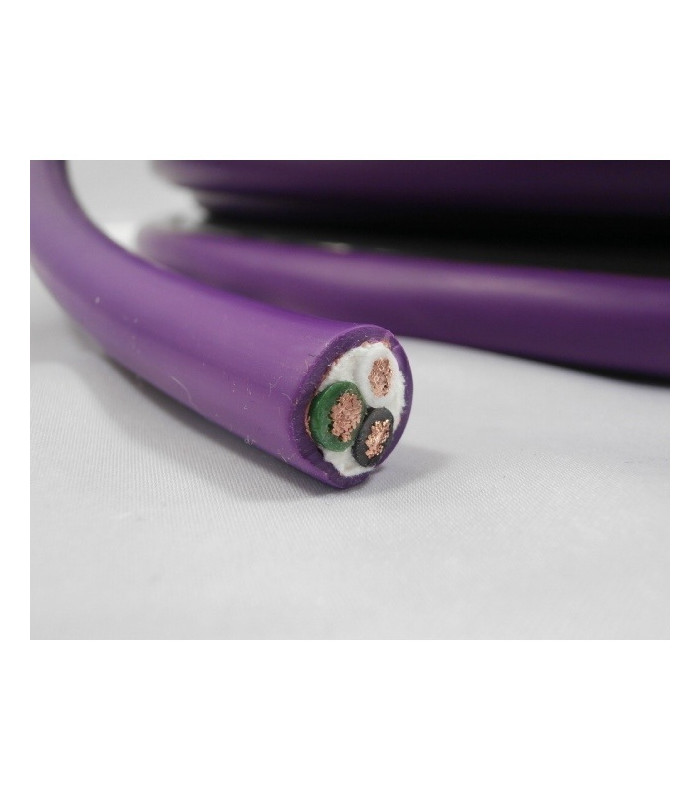

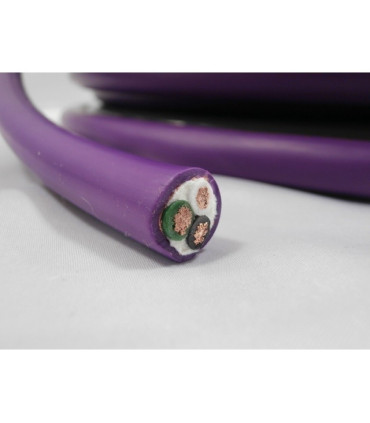

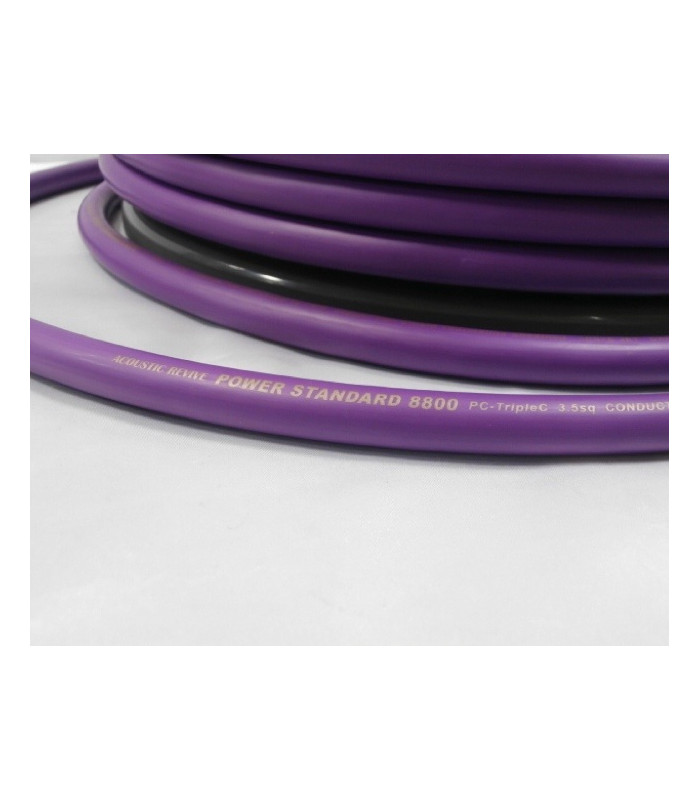

Acoustic Revive POWER Standard-tripleC 8800 Power Cable 1.5 meters cut

Absolutely superb DIY power cord, we feel this is a big improvement over the previous version with a far more detailed sound, great clarity and resolution, the new Triple C really is proving the be very popular. Price is per 1.5 meters unterminated, the minimum standard length suggested to assemble a superb power cord. Every conductor is 3.5sq surface.

Acoustic Revive Power-Standard-tripleC 8800 is the tripolar schielded power cable with copper multi-core TripleC conductors, non-terminated. Suitable for very high quality and purity power cabling.

Quantity 1 = 1,50 meters. In case of purchase of greater amounts will be sent a correspondently single cut.

PC-tripleC conductor, single line of superiority
- Realization air insulation structure, the Teflon insulated by ultra-high CP price
- Copper foil shield, tourmaline impregnated sheath to prevent external noise

A world first ! By using traditional Japanese forging processes, a new ‘ultimate’ conductor has been produced.

Forging process
Copper is compressed to 70% by forging tens of thousands of times by gradual application of pressure with a fixed angle and direction. (The constant angle continuation transfer forging method). By using this forging process, the transverse crystal grain boundary changes and becomes more longitudinal, crystals now have consecutive connections which makes current flow extremely smooth.

In addition, by forging, the conductor density is dramatically improved by destroying the internal air grains. This, in turn, improves the conductivity and the acoustic signature of the copper.

A conductor section before forging process

Electric current flow: The crystal structure and grain boundaries that are formed in a transverse state are a disturbance to the electric current and signal transmission.

So the Crystals and grain boundaries that were in a transverse state are elongated and become more longitudinal when they are forged repeatedly in the same direction.

By further continuous forging, crystal structures and grain boundaries are subdivided and lined up longitudinally which generates a smoother signal transmission.

Annealing process after core-wire processing
PC-TripleC wire after "Continuous Crystal Construction" process is further processed by Transfer Forging method for thinner wire.Then Annealing process is carried out under a temperature and time control depending on a thickness of the wire.In result, crystals fuse each other and change into more consecutive crystal.

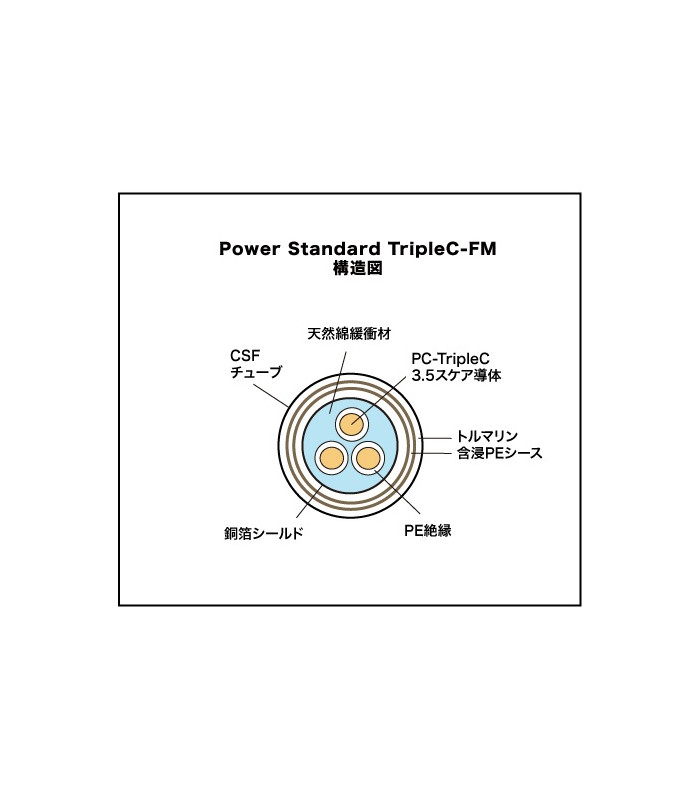

Conductor: multi-stranded PC-TripleC
Conductor diameter: 3.5mmq per line
Structure: 3-cores
Shielding: Copper foil
External diameter: 11.5mm
