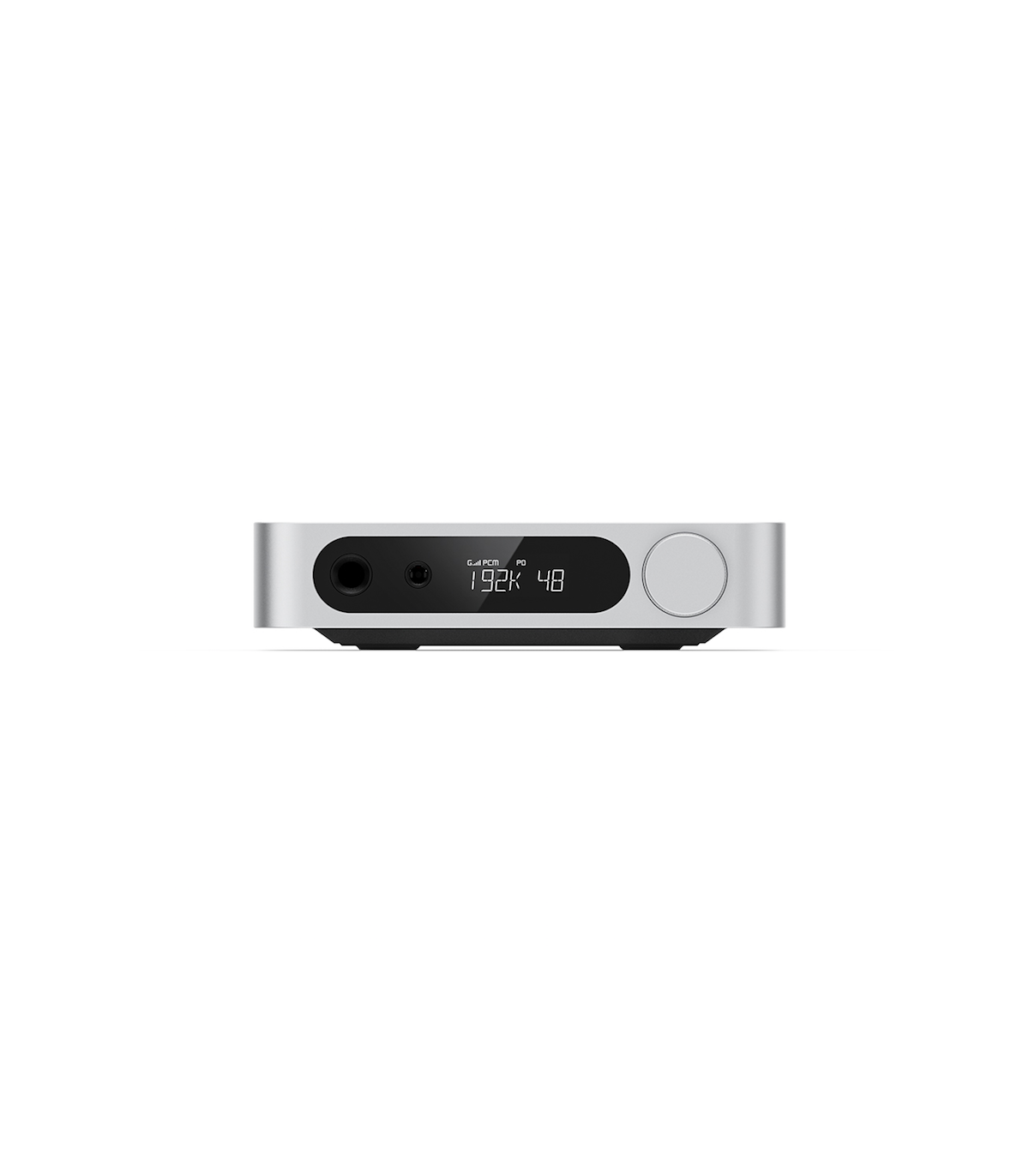

FiiO K11 R2R High-Performance Desktop DAC and Headphone Amplifier

FiiO K11 R2R High-Performance Desktop DAC and Headphone Amplifier

FiiO K11 R2R High-Performance Desktop DAC and Headphone Amplifier

1 Review

Reference:

2858b

Condition

New

FiiO K11 R2R High-Performance Desktop DAC and Headphone Amplifier

High-Performance Desktop R2R DAC/AMP.
Fully Differential 24-Bit R2R Resistor Array.
NOS/OS Dual-Mode Free Switching.
Professionally Designed Electronic Volume Control Chipset(NJW1195A).
Supports 32-Bit/384kHz PCM and Native DSD256 Audio Signal Processing.
Professional Audio Amp Circuit.
1300mW+1300mW Strong Output.
Three-Levels Adjustable Gain.
Specially Designed Low-Noise Power Supply.
6.35mm+4.4mm Dual Headphone Output Options.
High-Quality Emerald Solid-State Capacitors.
Customized LCD Display Screen.
Global RGB Logo Light.

FiiO has unveiled a new R2R model for its renowned K11 desktop DAC/AMP. Featuring a custom-built fully differential 24-Bit R2R Resistor Array, the K11 R2R provides listeners with a smooth and rich audio experience. It includes dual NOS/OS operating modes, each offering distinct sound qualities. The DAC/AMP comes with two headphone output options: a 6.35mm single-ended port and a 4.4mm balanced port. With a robust amplifier section that includes three-level adjustable gain and high-quality emerald solid-state capacitors, the K11 R2R delivers a powerful output of 1300mW per channel. Enjoy the rich, smooth, organic R2R sound with the FiiO K11 R2R, available now!

Fully-Differential 24-Bit R2R DAC Array

FiiO has incorporated its newly designed four-channel fully differential 24-bit R2R resistor array in the K11 R2R. This array consists of 48 resistors per channel, totaling 192 high-precision ultra-thin film resistors with 0.1% accuracy and minimal temperature drift across the four channels. This design ensures a clean, crisp output with a dark background, thanks to the specially developed audio circuit architecture.

NOS/OS Dual Operating Modes

The FiiO K11 R2R offers dual operating modes: NOS (Non-Oversampling) and OS (Oversampling). These modes can be switched freely and provide distinct sound characteristics. NOS mode retains the original sampling rate during signal processing, resulting in a more musical presentation, while OS mode upsamples all signals to 384kHz, offering more detail and clarity.

Powerful Amp Section

The K11 R2R is equipped with a professionally designed amplifier circuit, including Ti OPA1642 as low-pass filters and dual SGM8262 professional-grade operational amplifiers. With an output power of up to 1300mWx2, the K11 R2R can easily drive demanding headphones. It also features three-level gain modes for compatibility with both sensitive and high-power equipment. The device uses the NJW1195A precise digital volume chipset for accurate volume adjustments with low distortion between channels.

Dual Headphone Output Ports

The K11 R2R includes dual headphone output ports: a single-ended 6.35mm port and a balanced 4.4mm port. This allows users to pair a variety of IEMs and headphones with the K11 R2R, enjoying high-resolution music in all its glory.

High-Resolution

The FiiO K11 R2R supports high-resolution audio signal decoding, including PCM and DSD processing up to 32-bit/384kHz PCM and DSD256. DSD256 requires the DSD output mode to be set to native, and it is internally converted to PCM for R2R signal processing.

Power Supply

The K11 R2R features a professionally designed low-noise power supply, comprising 17 low-noise LDO precision voltage regulator ICs and 2 DC-DCs for a multi-channel power supply. It also benefits from an external 12V power supply, ensuring a clean output with minimal noise and distortion. The K11 R2R delivers high-quality sound to its users.

Specifications

DAC: fully differential true 24-bit R2R resistor arrays
Main control chip: GD32F303RET6
Output 6.35mm single-ended L+R≥460mW+460mW (32Ω, THD+N＜1%) / L+R≥50mW+50mW (300Ω, THD+N＜1%)
Output 4, 4mm balanced L+R≥1300mW+1300mW (32Ω, THD+N＜1%) / L+R≥220mW+220mW (300Ω, THD+N＜1%)
Inputs: USB Type-C, Coaxial, Optical
Outputs: 1 x 6.35 mm (single-ended) / 1 x 4.4 mm (balanced) / 1 x L/R RCA / 1 x Coaxial
USB input decoding: PCM 384kHz/32-bit / DSD 256
Coaxial input decoding: PCM: 192kHz/24-bit
Optical input decoding: PCM 96kHz/24-bit
Line-Out (LO) mode Power-Out (PO) mode
Display: 1.1-inch LCD VA segment display
Adjustable RGB illumination
Dimensions: 147 x 133 x 32.3 mm

Weight: 420 g

List of items included:

1x FiiO K11 R2R
1x power supply
1x USB data cable
1x quick start guide
1x 6.3 to 3.5mm jack adapter
