FiiO K11 Desktop DAC and Headphone Amplifier [b-stock]

Reference:
2794a-bs
Condition
Refurbished

B-Stock product, (read below) in excellent condition with original packaging, 2 year warranty.

Read moreShow less
€119.00 (tax incl.)
Finish
Product available with different options

Brand:
Add to wishlist
Description

FiiO K11 Desktop DAC and Headphone Amplifier

  • Truly Balanced DAC & Amp Design
  • Strong Output Power with 1.4W Maximum Thrust
  • 3-Level Adjustable Gain
  • Specially Designed Audio Circuitry
  • CS43198 DAC Chipset
  • Supports 384kHz/32Bit PCM, Native DSD256 Signals
  • Specially-Crafted Low-Noise Power Supply
  • Custom VA Display
  • Adjustable RGB Logo Lightning
  • Multi-Function Knob
  • Driver-Free USB DAC Mode
  • Multiple Input/Output Options
  • Compact & Ergonomic Build Structure
  • Compatible With Gaming Consoles

FiiO K11 is a brand-new USB DAC/AMP with a truly balanced design. It comes with CS43198 high-performance 32-Bit DAC that provides exceptional high-resolution PCM and DSD signal decoding. It comes equipped with a bunch of input-output options including USB, Coaxial, and Optical inputs as well as 4.4mm, 6.35mm, and RCA output options. FiiO K11 is a pocket-friendly desktop DAC/AMP that can be used worry-free with a variety of devices including PC, Laptops, smartphones, and even gaming consoles including PS5 and Nintendo Switch.

 Premium Audio Circuitry

Over the years, FiiO has designed and released several successful USB DAC/AMP models, the latest K11 is designed with specially crafted audio circuitry that promises top-quality sound performance. The K11 is equipped with a high-performance CS43198 DAC chipset that delivers ultimate performance in decoding high-resolution 32-bit/384kHz PCM and Native DSD256 audio signals.

Variety Of Input-Output

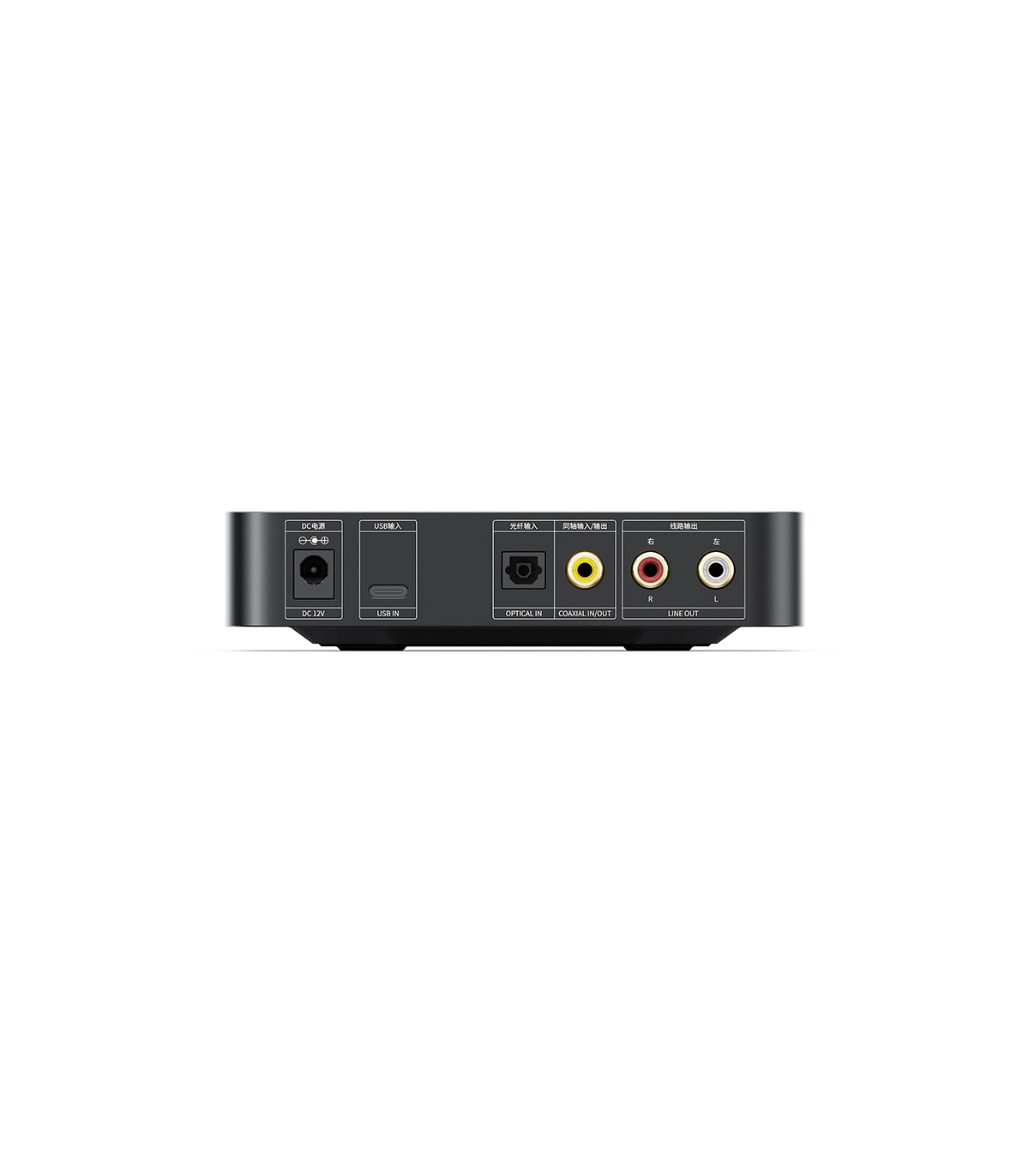

FiiO K11 houses multiple input-output options. We have digital input via coaxial, optical, and USB input modes, and we have outputs via 4.4mm balanced, 6.35mm single-ended, and RCA analog line-out options. K11 easily meet your need and requirements for a capable audio setup at a pocket-friendly price tag.

USB Input

FiiO K11 USB DAC/AMP supports worry-free USB connection with a variety of devices. It can run without any driver installation. The K11 supports a variety of devices including PCs, Laptops, Smartphones, Tablets, and even gaming consoles(PS5, Nintendo Switch, etc.).

High-Power Amplification Section With Three-Level Gain

FiiO K11 is a highly capable USB DAC/AMP. The device is equipped with a powerful headphone amplifier section with three-level gain modes that produce a strong output delivering up to 1400mW of clear output at 32Ω of impedance load through the balanced connection output. It can easily drive most headphones and in-ear monitors with ease.

Low-Noise Power Supply

FiiO K11 is designed with a specially-developed low-noise power supply section. Using more than 16 low-noise LDOs for precise voltage stabilization and an external 12V power supply, the K11 achieves robust performance with stable power delivery to all sections of the audio circuitry.

Fully-Clear Display

FiiO K11 is equipped with a high-controast durable VA display screen. It displays the active sampling rate, volume level, gain level, and activate output mode.

Adjustable RGB Logo

FiiO Logo on the top of the K11 DAC/AMP has an RGB Illuminated design. It glows in different colours based on the active file bitrate. Its brightness, colour, and light patterns are all adjustable using the multi-function knob.

Multi-Function Knob Control

FiiO K11 has a minimalistic design with a multi-function knob. This knob can act as a power on/off button, volume adjustment, menu exploring, screen control, etc. Users can also switch between the Line-out and Phone-out modes by simply double-pressing the knob.

Specifications

Name/Model

K11

Hardware solution

SoC: GD32F303RE, DAC:CS43198

USB decoding: SA9312L

SPDIF decoding: MS8422N

AMP: SGM8262-2*2

color

Black/Silver

Volume control

Volume knob

Weight

About 407g

Dimensions

147x133x32.3mm (Including feet)

Gain

L/M/H

Adaptive impedance

PO: 8~150Ω

Driver-free mode (switch mode)

Supported

BAL: 8~350Ω

Max supported sampling rate

384kHz-32bit/DSD256  Native 16/24/32bit (USB DAC)

Sampling rate indication

Show on display screen

192kHz-24bit (Coaxial)

LOGO indicator light shows as default: Cyan: 48KHz and below/Yellow: 48kHz and above/Green: DSD

96KHz-24bit (Optical)

Firmware upgrade

Supports upgrade through USB

FiiO Control

N/A





Buttons and Ports

Knob

Encoder knob (including volume

adjusting and menu confirming)

USB

Type-C (data transmission)

Single-ended line-out

RCA port

Digital optical in

Optical port

Digital coaxial in

RCA port

Digital coaxial out

RCA port (only works in USB mode)

balanced output interface

standard 4.4mm socket

Headphone out

Standard 6.35mm port

Power Supply Parameters

Power Supply

DC 12V/2A

Battery capacity

No battery

Audio Parameters

Parts of performance and parameters of Line-out output (RCA)

THD+N & Noise

<0.00035% (1kHz/-0.3dB@10KΩ)

SNR

≥126dB (A-weighted)

Crosstalk

≥120dB

Noise floor

<0.9uV (A-weighted)

Frequency response

20Hz~50kHz: damping<0.1dB

Line output level

1.95Vrms



20Hz~20KHz: damping<0.1dB





Parts of performance and parameters of headphone output (6.35mm)

Output power

L+R≥720mW +720mW (16Ω, THD+N<1%)

Output impedance

<1.2Ω

L+R≥520mW +520mW (32Ω, THD+N<1%)

Crosstalk

≥71dB

L+R≥60mW+60mW (300Ω, THD+N<1%)

Peak output voltage

12Vp-p

SNR

≥123dB (A-weighted)

THD+N & Noise

<0.00059% (1kHz/-8.1dB@32Ω)

Frequency response

20Hz~50kHz: damping<0.2dB

Noise floor

<2.8uV (A-weighted)

20Hz~20KHz: damping<0.1dB





Parts of performance and parameters of headphone output (4.4mm)

Output power

L+R≥570mW+570mW (16Ω, THD+N<1%)

Output impedance

<2.4Ω

L+R≥1400mW+1400mW (32Ω, THD+N<1%)

Crosstalk

≥106dB

L+R≥250mW+250mW (300Ω, THD+N<1%)

Peak output voltage

24.5Vp-p

SNR

≥123dB (A-weighted)

THD+N & Noise

<0.0010% (1kHz/-14.5dB@32Ω)

Frequency response

20Hz~50kHz: damping<0.2dB

Noise floor

<4.9uV (A-weighted)

20Hz~20KHz: damping<0.1dB





A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee.
These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition.
B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product.
Any special comments about a B-Stock product will be noted at the beginning of the article description.
