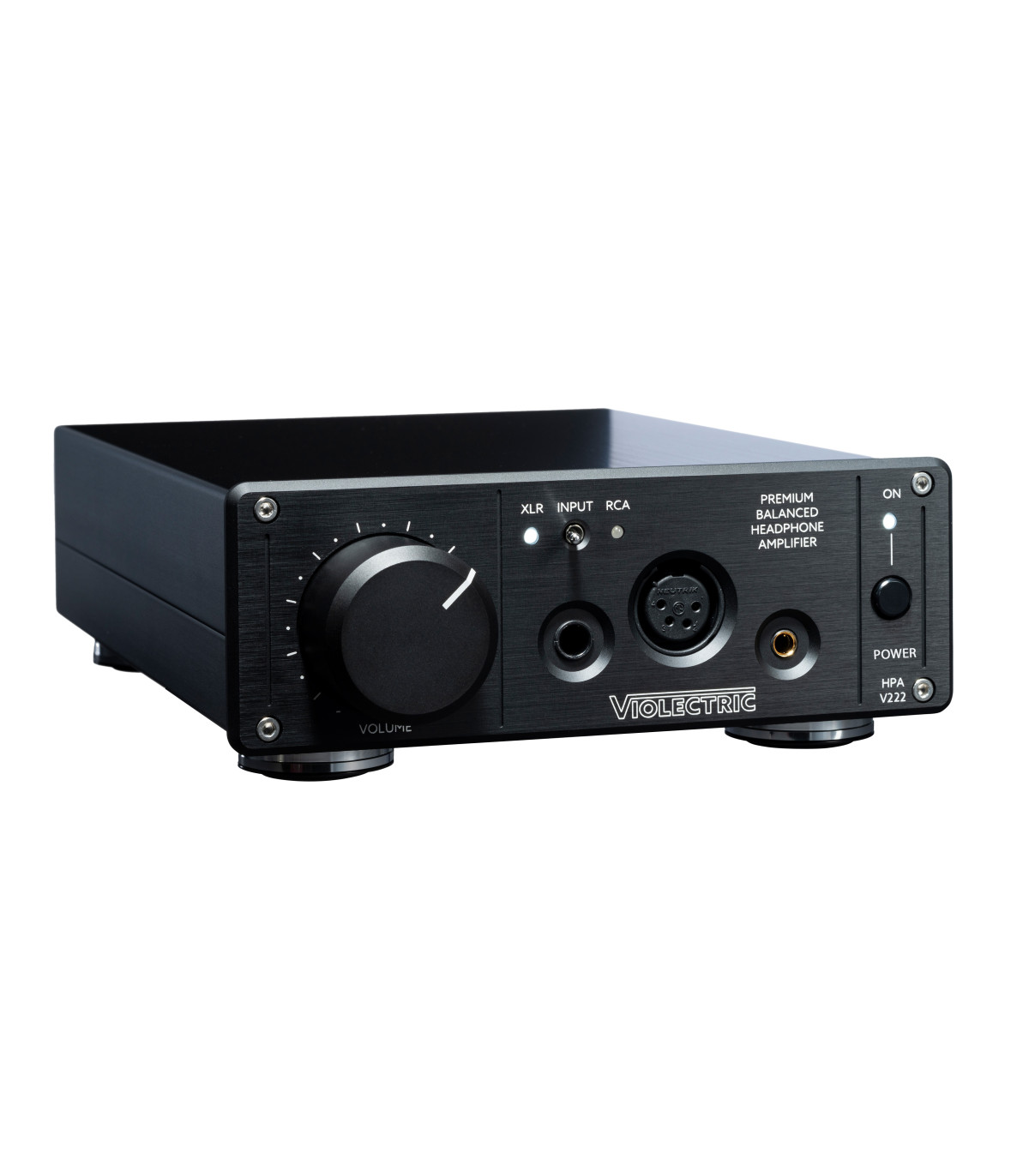

Violectric HPA V222 Balanced Headphone Amplifier [b-Stock]

Product Code: 2704bs

Condition: b-Stock

B-Stock product, (read below) in excellent condition with original packaging, 2 year warranty.

Description
Designer
Comments (0)
Questions (0)

Description

The Violectric HPA V222 is a new balanced headphone amplifier in the Violectric range. As a true balanced amplifier, it offers four output stages and not just balanced connection options. The headphone amplifier is a further development of the multiple test winner HPA V200 and HPA V280 and offers the incomparable natural and pleasant sound that made its predecessors famous.

With its special technology, the HPA V222 not only offers one of the most powerful headphone amplifiers on the market, but also:

- LOWEST NOISE through a very small amount of internal gain.
This makes the amplifier's self-generated noise inaudible.

- HIGH OUTPUT VOLTAGE through 50 V internal operating voltage.
Therefor ideally suited for high-impedance headphones deserving high output voltage swing.

- HIGH OUTPUT POWER thanks to powerful amplifiers that offer far more power even the most demanding headphones would need.
So best suited for headphones with low impedances as well as magnetostatic headphones !!

- HIGH DAMPING FACTOR due to lowest output impedance.
Therefor the ideal match for difficult to drive headphones without negative side effects and with the guarantee for a
uncompromising frequency response.

The rear line inputs can be selected via switches on the front. After the RK 27 volume control, the activated and buffered signal reaches the power amplifiers, which are a further development of the famous V200 circuits. Connect your headphones to the HPA V222 and enjoy a compact and fantastic sounding headphone amplifier with the famous natural, smooth but precise Violectric sound.

Technical Data

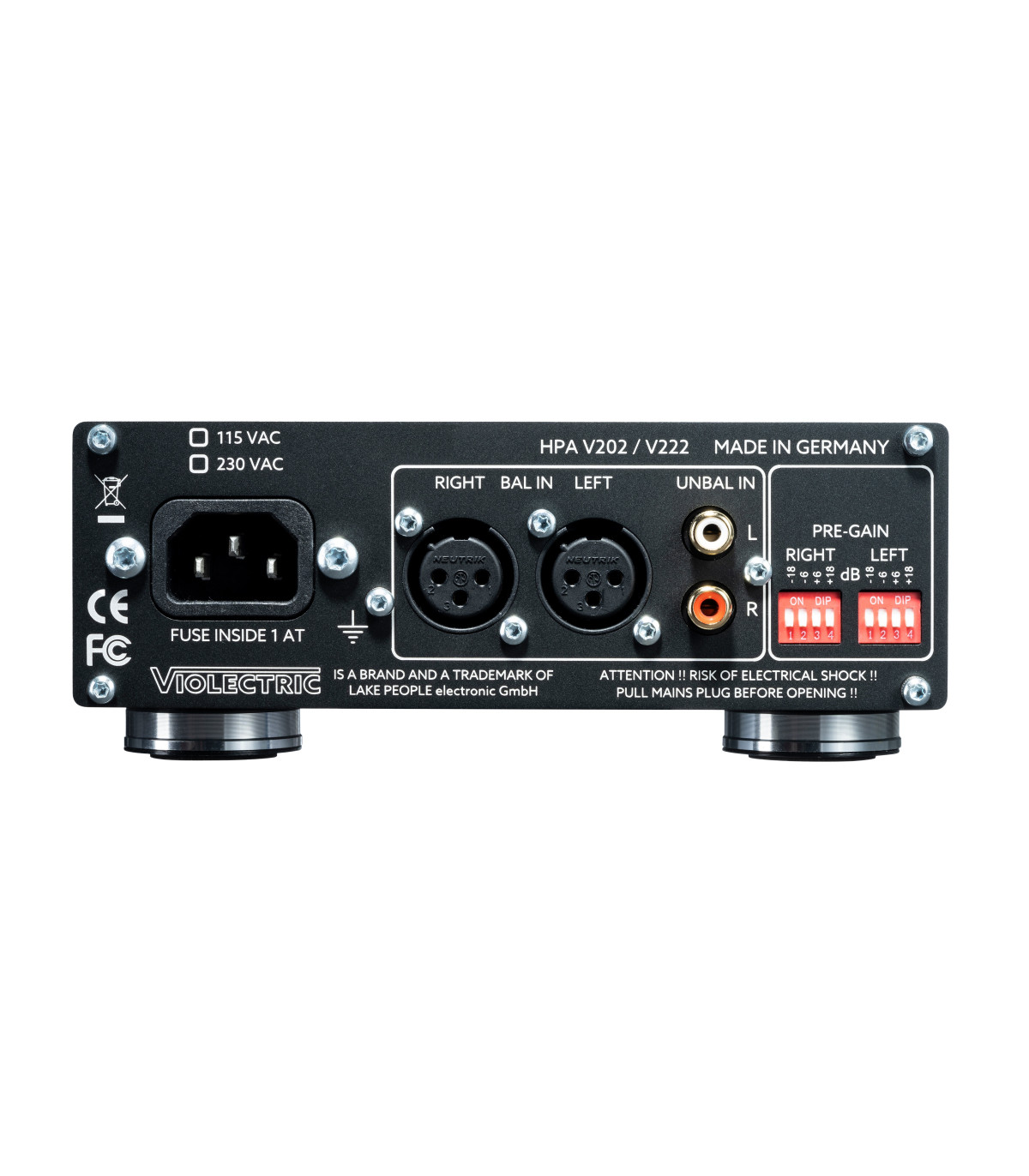

Line input:
- Stereo XLR, balanced
- Stereo RCA, unbalanced
Headphone outputs:
- 1 x 4-pin XLR, balanced
- 1 x Pentaconn, symmetrical
- 1 x 6.3 mm jack, unbalanced

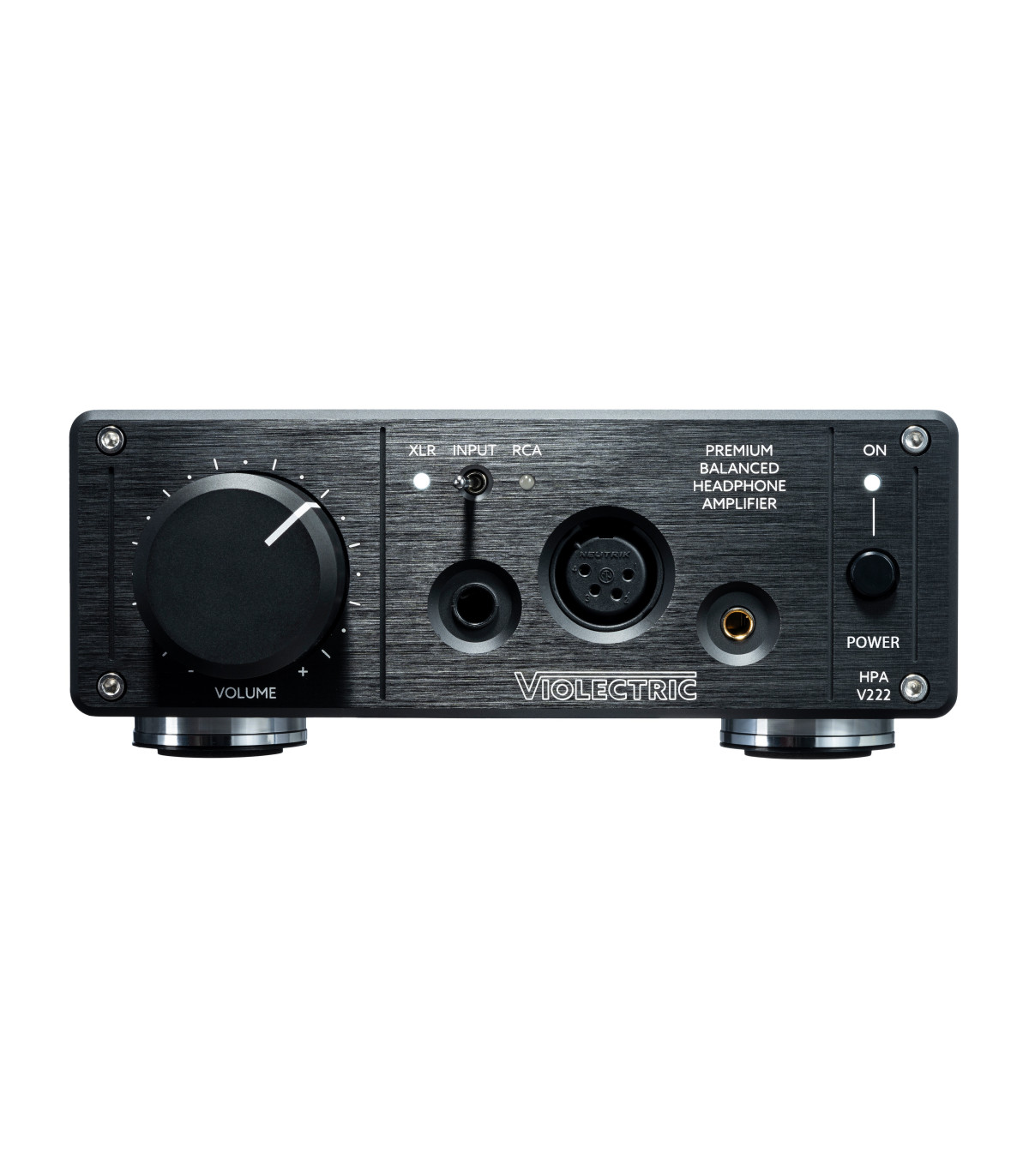

+Line inputs (XLR and RCA) switchable on the front
+/- 18 dB pre-gain for optimal adjustment of the HPA V222 to the source and headphones
Volume control with RK 27 potentiometer
large 38 mm all-aluminum button
Powerful balance stereo amplifier (4 power amplifiers)
3500mW Pmax into 50 ohms
23V RMS into 600 ohms
Delayed activation of the headphones after power-on
Built-in power supply with toroidal transformer
22,000uF filter capacitance

Technical Data:

All Data RMS unwtd., 20 Hz - 20 kHz, Pre-Gain set to 0 dB

Analogue input parameter

Inputs (stereo): 1 x XLR balanced, 1 x RCA, unbalanced
Max. input voltage: + 21 dBu
Input impedance: 10 kohm

Headphone amp parameter

Nominal input sensitivity: +6 dBu
Feedback gain: +2 dB unbal., +8 dB bal.
PRE-GAIN: -18 / -12 / -6 / 0 / +6 / +12 / +18 dBr
Frequency range: 5 Hz ... 250 kHz (- 0,5 dB)
Output impedance: 0,25 Ohm unbal., 0,5 Ohm bal.
Damping factor (Load 50 R): 200 unbal., 100 bal.
Dynamic range: > 131 dB (A-wtd)
Noise: < -102 dBu (A-wtd)
THD+N (1kHz/2x10V/100R=1W): < -102 dB / < 0,0008 %
THD+N (1kHz/2x4V/32R=0,5W): < -100 dB / < 0.001 %
Crosstalk: -100 dB (1 kHz) / -95 dB (15 kHz)
Headphone outputs: 1 x Pentaconn, bal., 1 x 4-pin XLR, bal., 1 x 1/4“ (6.3 mm) TRS jack

General

Supply voltage: 230 V AC / 115 V AC max. 15 VA
Front, Back: 5 mm / 2,5 mm Aluminum, black anodized
Case: 4 mm Aluminum, black anodized
Case dimensions: 170 x 54 x 228 mm (W x H x D)
Overall dimensions: 170 x 65 x 252 mm (W x H x D)

Included:

1x Violectric HPA V222
1x power cord
1x user manual

Power Output on different Impedance loads:

A ´B-Stock´ is a product which has been returned by a customer within their 14/30 Day Money Back Guarantee.

These items are offered at a special, reduced price. Please note, that occasionally the packaging is no longer in pristine condition.

B-Stock products are in full working order and are checked by specialists before releasing them as B-Stock. They come with the full 2 year warranty as any other new product.

Any special comments about a B-Stock product will be noted at the beginning of the article description.

Designer

Introduction to Violectric

... is a trademark and product line of Lake People electronic GmbH. Lake People electronic GmbH develops, manufactures and distributes products in the professional range, for broadcast, television, airports, exhibition halls, festival venues, theatres, large-scale installations, private studios and more. In the private sector as well, Lake People products become increasingly popular due to their outstanding quality.
The Violectric trademark and product line is specially intended to supply the Hi-Fi and High-End market with its specific requirements.

Who develops Violectric equipment?

Violectric devices are exclusively developed in Germany by the engineers of Lake People electronic GmbH. In doing so, the team of developers can draw on twenty years of experience and countless products for the pro-audio domain.

Who manufactures Violectric equipment?

Violectric devices are exclusively manufactured in Germany by Lake People electronic GmbH or contractors in the company's vicinity. Lake People - and by association Violectric - put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order achieve the main part of added value inland.

Introduction to Lake People

Established in 1986, we have since become your partner for professional audio electronics. Following our motto “tools - not toys”, we achieved highest reputation during the past years amongst our customers. These are private studios, broadcasters and TV companies. Also airports, congress and exhibition centres count on the reliability of our products made in Germany. This all began under the roof of Rosgartenstrasse 13 in the city of Konstanz. Here, three young guys started with the development and manufacture of limiters and noise gates but not too successfully in the beginning. The commercial survival on a very low level was made possible by the production of headphone amplifiers. From 1989 on, the production range was extended to level matching and balancing amplifiers such successfully, that it came essential to move to larger premises.

Since 1991, the new address read: Haidelmoosweg 52. Due to the developement of the first german 20-bit A/D and D/A converters in the beginning nineties, the name Lake People resounded throughout the land. Suddenly, the company was regarded as a high-tech brand, with a highly positive effect on its public reputation. The growing know-how led to many new products in the analog and digital domain during the following years. Although some projects turned out to be flops, most devices met the customers' requirements, with the effect of continuous growth of the company. By the end of the nineties the 140 m² of Haidelmoosweg 52 went cramping.
Again, a move to new premises came necessary. As it was obvious that rental facilities would not meet the demands, we decided to put up our own building. The company site was constructed in 2000 in a new industrial park in Konstanz, Turmstrasse 7a, just a hundred metres from the lake. Also in 2000, Lake People was transformed into a Ltd. company.
