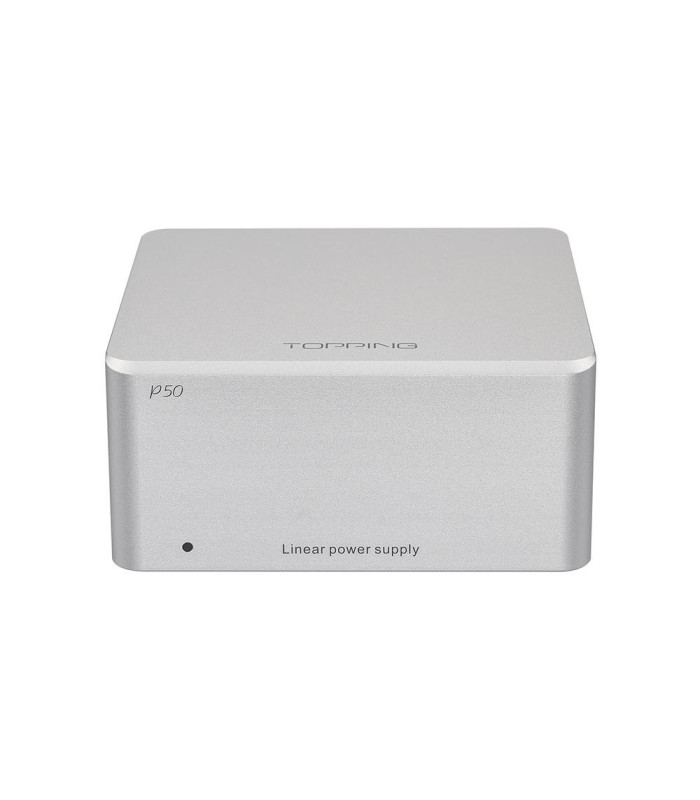

Topping P50 Special Power Supply

The already excellent Topping audio products greatly benefit of a dedicated, external, compact, beautifully made, power supply, in terms of the reducing of interferences and noise, bringing the sound quality to a new level. You can evaluate how and how much a stable and clean current source supply A recommended upgrade.

Real hi-fi system bases on an excellent power supply. Topping P50 is such a device, as it offers excellent performance and allows a hi-fi system to perform to its full potential thanks to delivery of clean and sufficient power. While doing so, it is also very practical and versatile, as it is fitted with two USB-A 5V 1A outputs and one DC 5.5/2.1mm jack 15V 1A output, meaning it can be used to supply power to several different devices.

P50 will work and look particularly well with Topping D50s DAC and Topping A50 headphone amplifier as it bears the same visual design and proportions. It is also an excellent partner to Topping DX3 Pro DAC.

Versatility

P50 can be used to supply power to a wide range of devices with output voltages of either 5V or 15V, and it is an ideal choice to power other Topping products, such as DX3 Pro, D50, D50s, A50, E30, E50, M50, among others.

Each of the Topping P50 outputs, whether it is one of the two USB-A 5V 1A sockets or the DC 5.5/2.1mm 15V 1A jack provides very clean and safe power to even most power hungry hi-fi devices helping them to realize their full potential and deliver a high quality, faithful sound reproduction.

On top of that, P50 has an input voltage switch that allows the user to select either AC 220 -240V 50/60Hz or AC 100 – 120V 50/60Hz, meaning it can be used anywhere in the world.

High quality build

To ensure a very low noise level and low magnetic losses P50 uses a custom sealed toroidal transformer that has been designed to eliminate noise and residual interference to provide the cleanest possible signal.

To further improve the resistance against the interferences and ensure longevity, P50s case is CNC machined from a single block of aluminum.

High energy and low noise

The 15V power supply circuit integrates a series of capacitors of total capacity of not less than 10000µF and the 5V rails have 8000µF, this means a significant energy reserve to ensure stable output signals.

In addition to that P50 uses three TPS7A4700 chips that are the ultra-low noise linear controllers capable of high accuracy, making them an excellent choice for analog circuits.

Specifications

• Dimensions: 11 x 11 x 5.2cm
• Weight: 880g
• Power input: AC110V/AC220V 50Hz/60Hz
  Color: black / silver
• Power outputs: 2 x USB-A, 1 x DC (5.5/2.1mm)
• Power supply noise: <1mVrms
• Output power:
  • DC5V 1A x 2
  • DC15V 1A
  • DC5V 1A x 1 + DC15V 0.9A
  • DC5V 0.8A x 2 + DC15V 0.8A

Contents of the box

• P50
• AC cable
• 2m USB to DC cable
• 2m DC to DC cable
• 2m DC to DC cable
• User’s manual
• Warranty card
