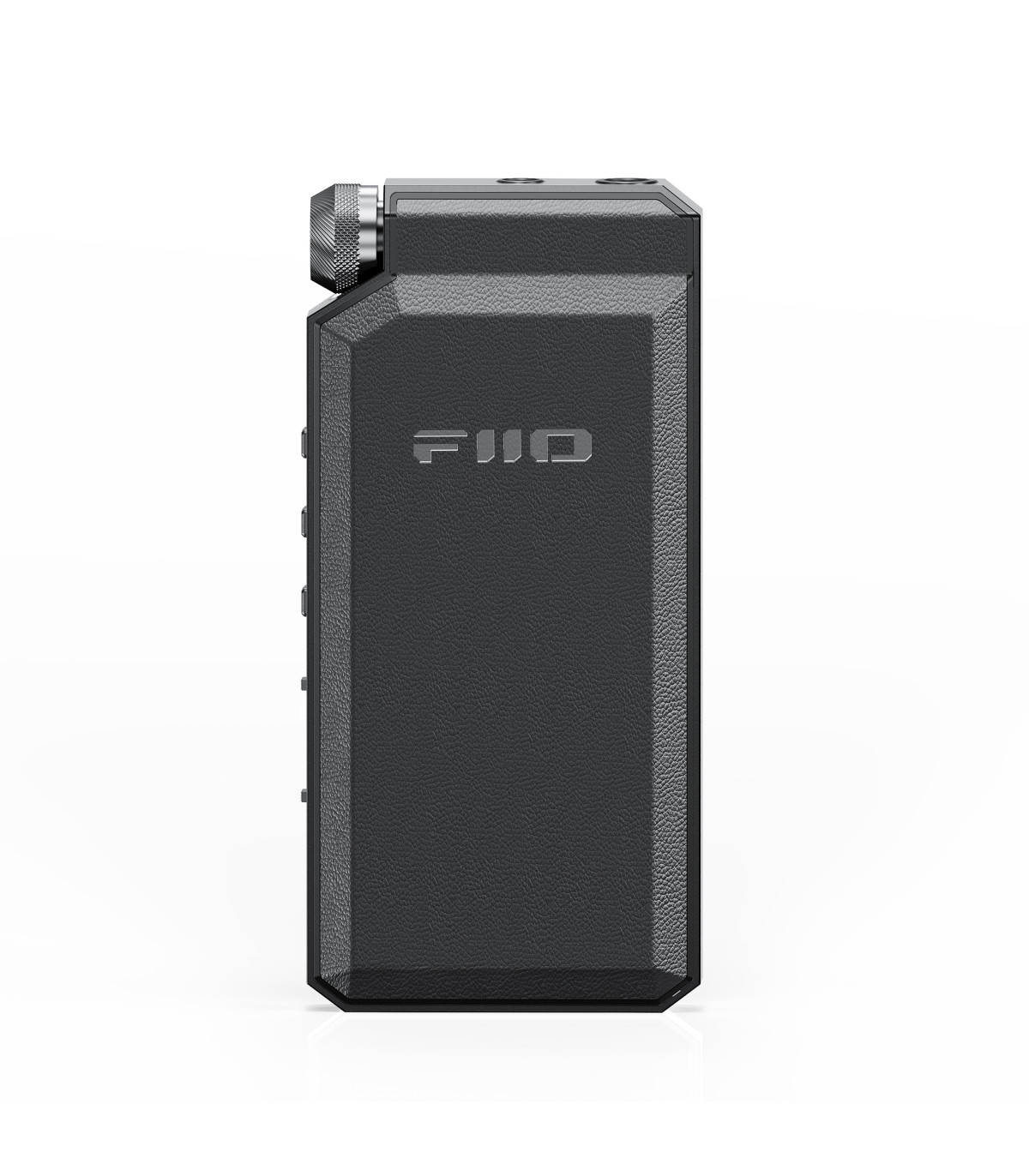

FiiO BTR17 Bluetooth DAC and Headphone Amplifier
FiiO BTR17 DAC Bluetooth + Amplificatore per Cuffie
- Qualcomm’s Latest QCC5181 Bluetooth Chipset
- Bluetooth V5.4 Connectivity
- Supports Wireless Lossless Codecs(LDAC, AptX Adaptive, etc)
- Patented Desktop Mode with Independent Power Supply
- Independent Desktop Mode Switch
- THX AA78+ Amp Chipset
- Supremely Powerful Output(Up to 650mW Per Channel)
- High-Performance ES9069Q Dual-DAC Architecture
- XMOS XU316 16-Core USB Chipset

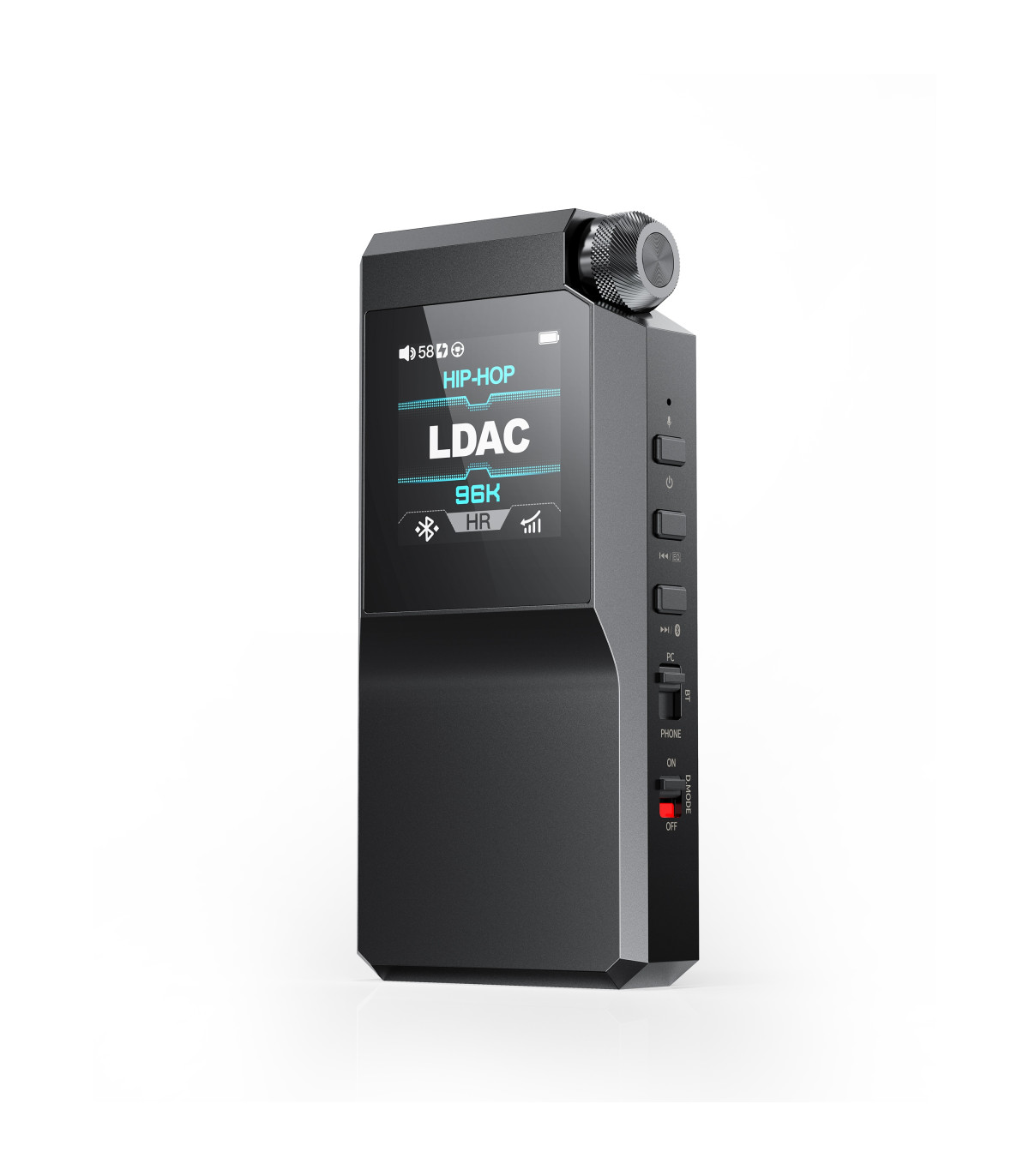

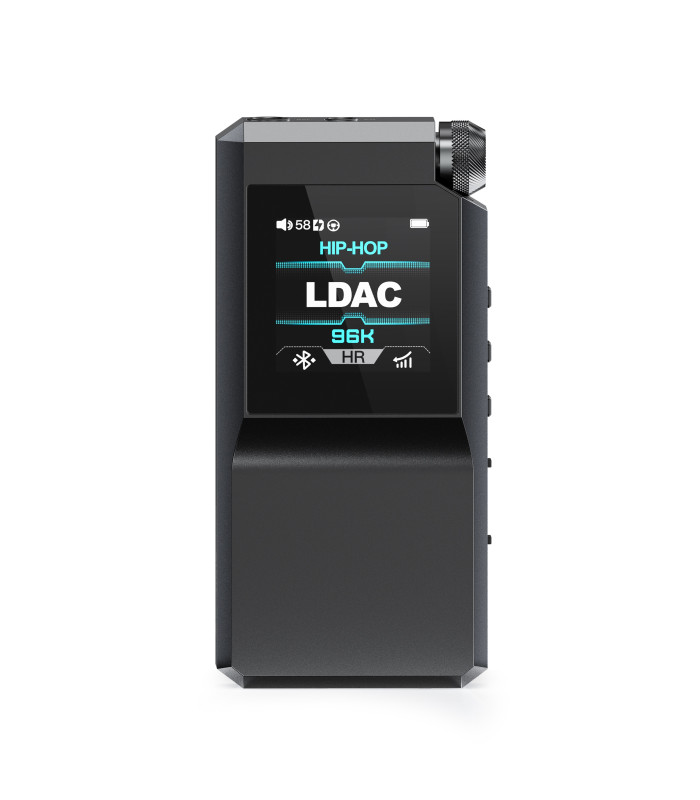

- Colorful Display Screen
- PC, Bluetooth, Phone Three Device Modes
- High-Quality 8-Wire Type-C Connector Cable
- MQA Certified
- Hi-Res Audio+Hi-Res Audio Wireless Certified
Lossless Wireless Portable DAC/AMP
FiiO BTR17 offers Hi-Res Lossless wireless Bluetooth functionality. Equipped with Qualcomm’s latest flagship QCC5181 Bluetooth chipset, the BTR17 meets the LE Audio standard and supports up to 2.1Mbps transmission speed. It supports strong and stable wireless Bluetooth V5.4 connectivity along with Snapdragon Sound Technology. The BTR17 supports high-resolution 24-bit/96kHz LDAC, and AptX Adaptive wireless codecs.
Dual Hi-Res 32-Bit DAC Chips
In order to provide high-resolution audio signal processing and decoding, FiiO has featured a high-end dual-DAC chipset on the BTR17. It comes equipped with dual ES9069Q DAC chips which support fourth-generation 32-Bit HyperStream architecture. It promises class-leading performance with amazing dynamic range and SNR performance.
3rd Generation 16-Core XMOS USB Processor
Along with wireless Bluetooth, the FiiO BTR17 also supports Hi-Res wired audio processing as well. It comes equipped with a 3rd generation XMOS XU316 16-core USB processor which has low latency and more stable wired signal transmission. It also has better compatibility than other ordinary USB chips supporting up to 32-bit/768kHz PCM and native DSD512 audio signal processing. It also supports MQA decoding and has easy connectivity with different devices.
Patented Desktop Mode With Independent Power Supply
FiiO BTR17 features patented desktop mode, you can connect it to outer power while using and turn the independent D.Mode Switch on. It has a strong 650mW per channel output in this high-power desktop mode. The independent power supply mode completely bypasses the power intake from the connected source device and avoids overflow of the current in the circuit.
High-Power Amp Section
FiiO BTR17 comes equipped with THX AA78+ amp chipset that produces a strong output thrust on the device. In desktop mode, the BTR17 delivers ferocious 650mW per channel output. Even with low-sensitivity IEMs and Headphones, the BTR17 maintains a clean and clear output free from any noticeable background noise.
List of items included:
- BTR17 main unit
- Standard Leather Case
- Special dual Type-C short OTG cable
- Quick Start Guide
General Specifications | |||
Name/Model | BTR17 | Hardware solution | DAC: ES9069Q*2, USB DAC: XMOS XU316*1, Bluetooth: QCC5181 |
Color | Black/Blue | Volume control | Physical volume knob |
Weight | About 73.4g | Dimensions | About 16.3×41.2×86.6mm |
Driver-free mode (switch mode) | Supported | Desktop mode | Supported |
MQA | MQA full decoding | Channel balance | ＜0.2dB |
Gain | L/H | Status indication | Displays Bluetooth codec, volume level, gain, USB mode, sampling rate, etc. |
Display | 1.3-inch color IPS display | Firmware upgrade | Bluetooth firmware supports OTA upgrade |
Bluetooth reception (5.4) | AAC/SBC/aptX/aptX Adaptive/aptX Lossless/aptX HD/LDAC | XMOS/System firmware supports upgrade through USB | |
Max supported sampling rate | PCM: Up to 768kHz/32bit | Adaptive impedance | PO: 8~150Ω |
DSD: Up to DSD512 (Native), DOP256 | BAL: 8~300Ω | ||
Bluetooth codec indication (light color indicator and characters on display | Blue: SBC; Cyan: AAC; Purple: aptX; Yellow: aptX HD; White: LDAC; Green: aptX Adaptive/aptX Lossless | FIIO Control | Supports settings through app |
In-vehicle mode | Automatically turn on/off with the vehicle's USB | ||
Deep standby | Without any connection, it automatically enters power saving shutdown state in 3 minutes, and the timer can be set in the app | Microphone function | Supports Bluetooth voice call, built-in omnidirectional+CTIA in-line control mic |
Buttons and Ports | |||
Button | Power on/off*1; Previous track*1; Next track*1; Volume knob (with confirm)*1 | USB | Type-C USB (Power supply/Data transfer)/Type-C USB POWER IN (Orange, Power supply) |
Headphone out | Standard 3.5mm port | Balanced headphone out | Standard 4.4mm port |

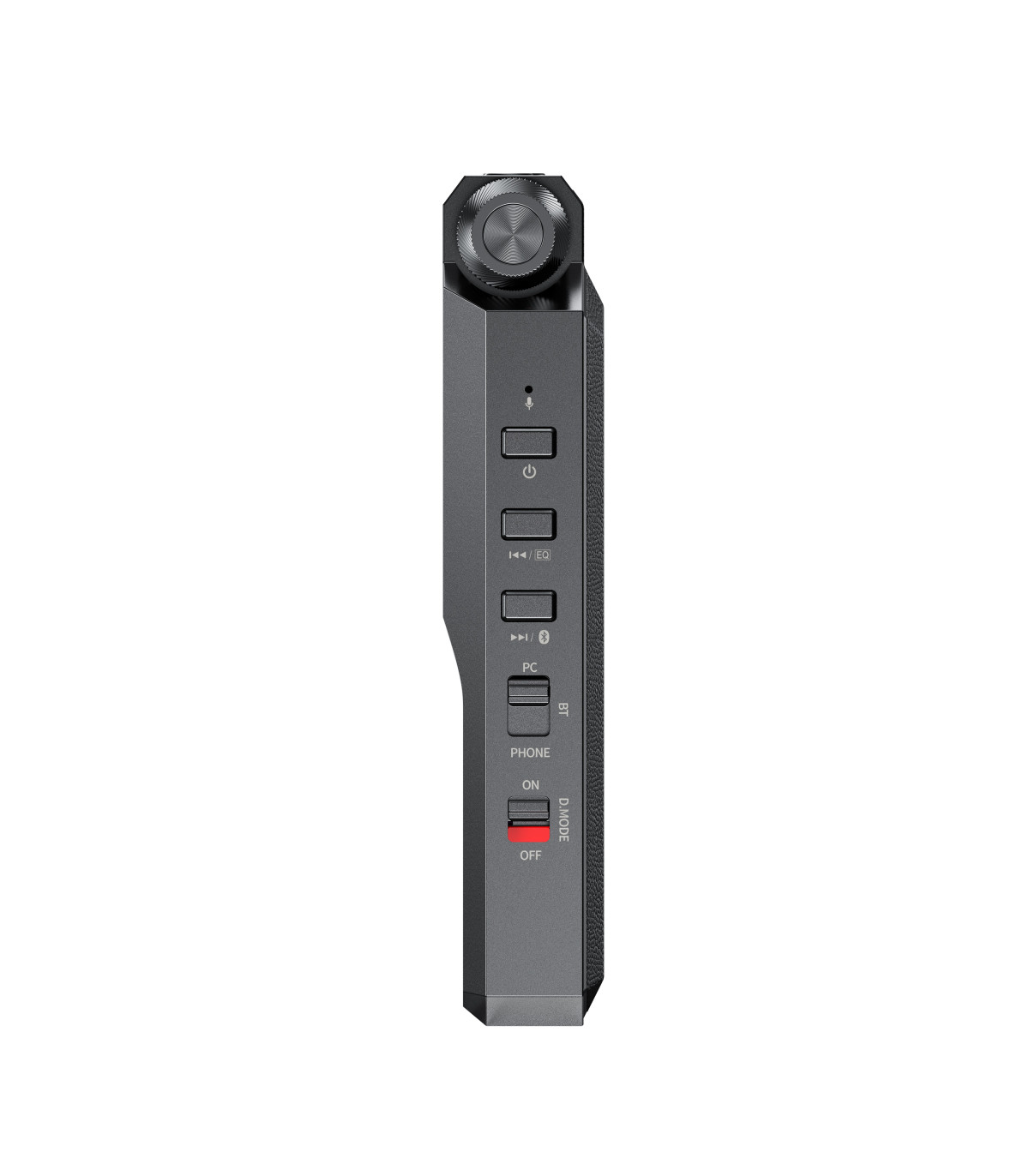

Slide switch | Mode switch (PC/BT/PHONE)*1; Desktop mode switch*1 |
|
|
Power Supply Parameters | |||
Power supply | DC 5V ≥2A | Charging time | ≤2h |
Battery Life and Test Conditions | |||
3.5mm headphone out: ≥9h | |||
Audio input | Bluetooth receiving | Bluetooth codec | AAC |
Volume level | 23 level | Gain | High |
Display status | Off | Playing track and format | MP3 44.1KHz/16bit |
EQ | Off | Load | 32Ω |
4.4mm balanced headphone out: ≥8h | |||
Audio input | Bluetooth receiving | Bluetooth codec | AAC |
Volume level | 18 level | Gain | High |
Display status | Off | Playing track and format | MP3 44.1KHz/16bit |
EQ | Off | Load | 32Ω |
3.5mm headphone out: ≥10h | |||
Audio input | Phone mode (slide the mode switch to PHONE position) | Gain | High |
Volume level | 23 level | Playing track and format | 44.1KHz/16bit |
Display status | Off | Load | 32Ω |
EQ | Off |
|
|
4.4mm balanced headphone out: ≥9h | |||
Audio input | Phone mode (slide the mode switch to PHONE position) | Gain | High |
Volume level | 18 level | Playing track and format | 44.1KHz/16bit |
Display status | Off | Load | 32Ω |
EQ | Off |
|
|
Audio Parameters | |||
Performance and parameters of headphone output (3.5mm, UAC decoding, Desktop mode: High gain) | |||
Output power | L+R≥330mW+330mW (16Ω, THD+N＜1%) | Output impedance | ＜1Ω |
L+R≥280mW+280mW (32Ω, THD+N＜1%) | Crosstalk | ≥78dB | |
L+R≥30mW +30mW (300Ω, THD+N＜1%) | Peak output voltage | 8.5Vp-p | |
THD+N | ＜0.0015% (1kHz/-18dB@32Ω) | SNR | ≥120dB (A-weighted) |
Frequency response | 20Hz~80kHz: attenuation＜3dB | Noise floor | ＜3uV (A-weighted) |
20Hz~20KHz: attenuation＜0.1dB | |||
Performance and parameters of balanced headphone output (4.4mm, UAC decoding, Desktop mode: High gain) | |||
Output power | L+R≥480mW+480mW (16Ω, THD+N＜1%) | Output impedance | ＜1.5Ω |
L+R≥650mW+650mW (32Ω, THD+N＜1%) | Crosstalk | ≥120dB | |
L+R≥125mW+125mW (300Ω, THD+N＜1%) | Peak output voltage | 17.5Vp-p | |
THD+N | ＜0.00035% (1kHz/-10dB@32Ω) | SNR | ≥126dB (A-weighted) |
Frequency response | 20Hz~80kHz: attenuation＜3dB | Noise floor | ＜2.2uV (A-weighted) |
20Hz~20KHz: attenuation＜0.1dB | |||
Performance and parameters of headphone output (3.5mm, UAC decoding, non-Desktop mode: High gain) | |||
Output power | L+R≥130mW+130mW (16Ω, THD+N＜1%) | Output impedance | ＜1Ω |
L+R≥140mW+140mW (32Ω, THD+N＜1%) | Crosstalk | ≥78dB | |
L+R≥20mW +20mW (300Ω, THD+N＜1%) | Peak output voltage | 6.5Vp-p | |
THD+N | ＜0.0022% (1kHz/-12dB@32Ω) | SNR | ≥120dB (A-weighted) |
Frequency response | 20Hz~80kHz: attenuation＜3dB | Noise floor | ＜2.1uV (A-weighted) |
20Hz~20KHz: attenuation＜0.1dB | |||
Performance and parameters of balanced headphone output (4.4mm, UAC decoding, non-Desktop mode: High gain) | |||
Output power | L+R≥180mW+180mW (16Ω, THD+N＜1%) | Output impedance | ＜1.5Ω |
L+R≥300mW+300mW (32Ω, THD+N＜1%) | Crosstalk | ≥105dB | |
L+R≥35mW+35mW (300Ω, THD+N＜1%) | Peak output voltage | 9.3Vp-p | |
THD+N | ＜0.0008% (1kHz/-4dB@32Ω) | SNR | ≥122dB (A-weighted) |
Frequency response | 20Hz~80kHz: attenuation＜3dB | Noi | |
